Oregon Population Forecast Program

.title[
# Oregon Population Forecast Program
]
.subtitle[
## Proposal Forecasts for Counties & UGBs
]
.author[
### Klamath County
]
.institute[
### Portland State University Population Research Center
]
.date[
### March 2026
]

---

# Comments or Questions?

## Contact PSUPRC
Email: [askprc@pdx.edu](mailto:askprc@pdx.edu)
Telephone: 503-725-3922

## Proposal Population Projections
https://www.pdx.edu/population-research/population-forecasts

---

# PSUPRC Project Team

**Huda Alkitkat, PhD.**
*Population Estimates Manager*

**Seth Dowden**
*Research Assistant*

**Neal Marquez, PhD.**
*Population Forecast Manager*

**Gilbert Montcho, PhD.**
*Demographic & Labor Econ Analyst*

**Scott Nordstrom, PhD.**
*Post-Doctoral Researcher*
]

**Aja Sutton, PhD.**
*Post-Doctoral Researcher*

**David Swanson, PhD.**
*Research Associate*

**Suniva Thangaraj**
*Program Manager*

**Joshua Wilde, PhD.**
*Research Scientist*
]

---

# Klamath County Outline

- Introduction
- Updates
- County Overview
- UGB Forecasts

.pulll-right {
 float: right;
 width: 68%;
 }
</style>

.pux-right {
 float: right;
 width: 58%;
 }
</style>

.puz-right {
 float: right;
 width: 38%;
 }
</style>

---

# PSUPRC OPFP Population Forecasts

.puz-left[
- For the purposes of land use planning PSUPRC generates population forecasts
- For counties, urban growth boundaries (UGBs), and areas outside UGBs
- These forecasts must
    - Be updated at least every four years
    - Cover a 50 year forecast horizon
    - Include most up to date data
    - Allow for public input/objections
    - Methods & results publicly available

]

.puz-right[
![Oregon Seal](https://sos.oregon.gov/PublishingImages/Oregon-State-Seal-Navy-Gold.png)
]

---

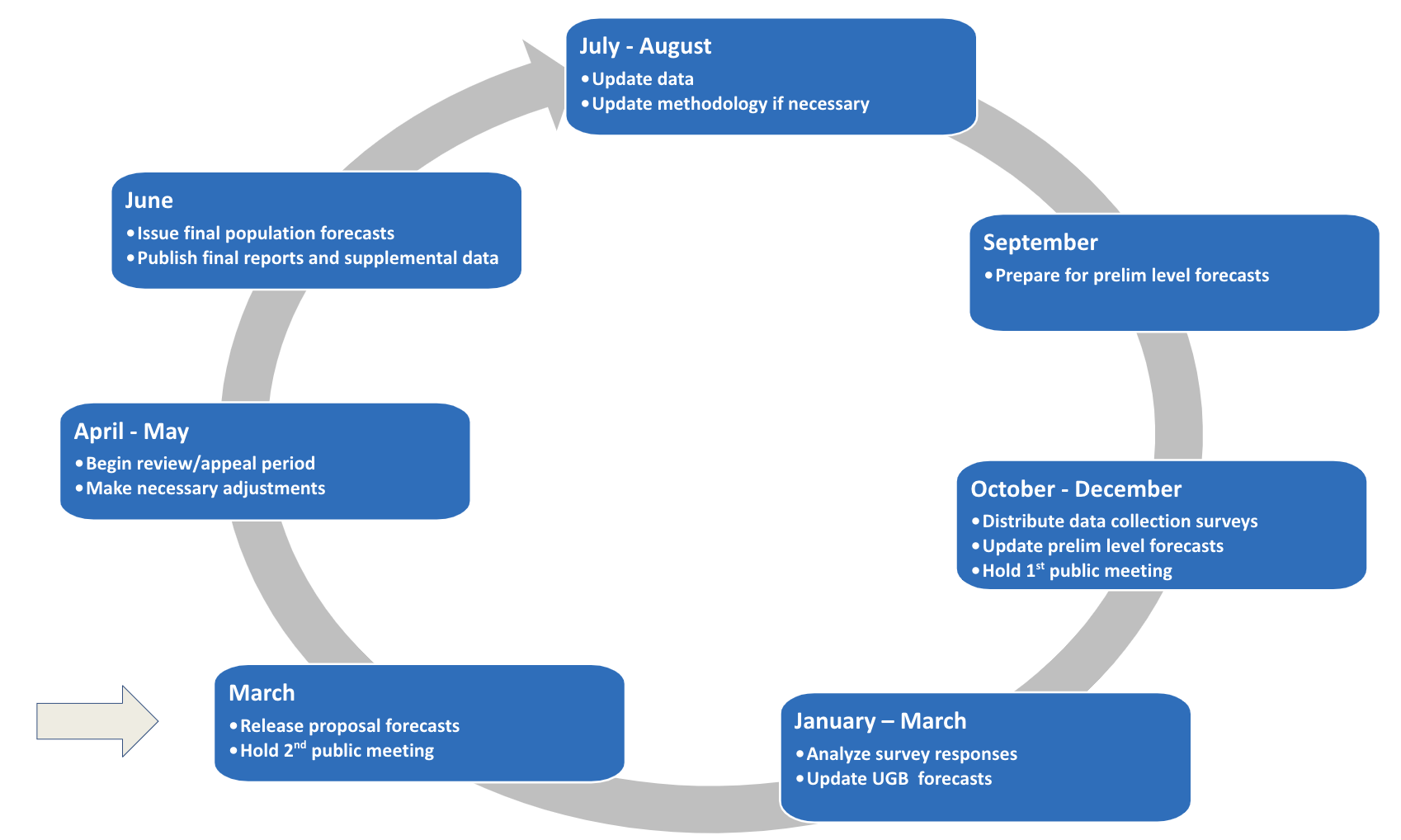

# Oregon Population Forecast Program Cycle

![Program Cycle](program_cycle.png)

---

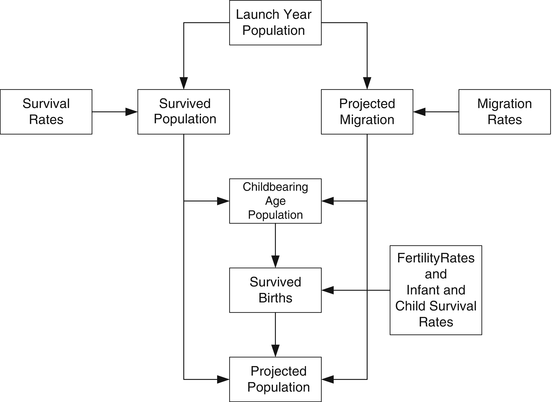

# Methods Review: Cohort Component Method

.pux-left[
- For Counties
- Births = Females 15-50 * Birth Rate
  - Both number of and rate of births in OR decreasing
- Deaths = All Population * Death Rate
  - While number of deaths are increasing rate of deaths decreasing
- Migration = Past migration events
  - Average of past migration is most likely scenario moving forward

]

---
# Methods Review: Housing Unit Method

.pull-left[
- For UGBs
- `$P_t = P_{t-1} + \Delta HU*PPH*OCC$`
- `$PPH$`: Persons per household
  - Estimated from most recent census data
- `$OCC$`: Occupancy Rate
  - Estimated from most recent census data
- `$\Delta HU$`: annual change in housing units
  - Modeled based on past housing unit growth trends

]

---
# After this meeting

- Email for further follow up
- March 30, 2026 forecast discussion period ends
- Chance to formally appeal until May 15, 2026
  - Will review appeals in the following week
- No further changes will be made after May 22, 2026
- Reports and data tables will be available June 15, 2026

---
class: center, middle, inverse

# Updates

---
# Survey and Preliminary Meeting Feedback

- Received housing and general survey responses from over 20 organizations
- Updated GIS UGB boundary lines
- Account for large public works alter housing development trajectories
- Incorporate group quarter expansions
- Adjusted housing unit productions
- Housing build moratoriums
- General concerns
  - Restrictions on development
  - Access to others responses

---

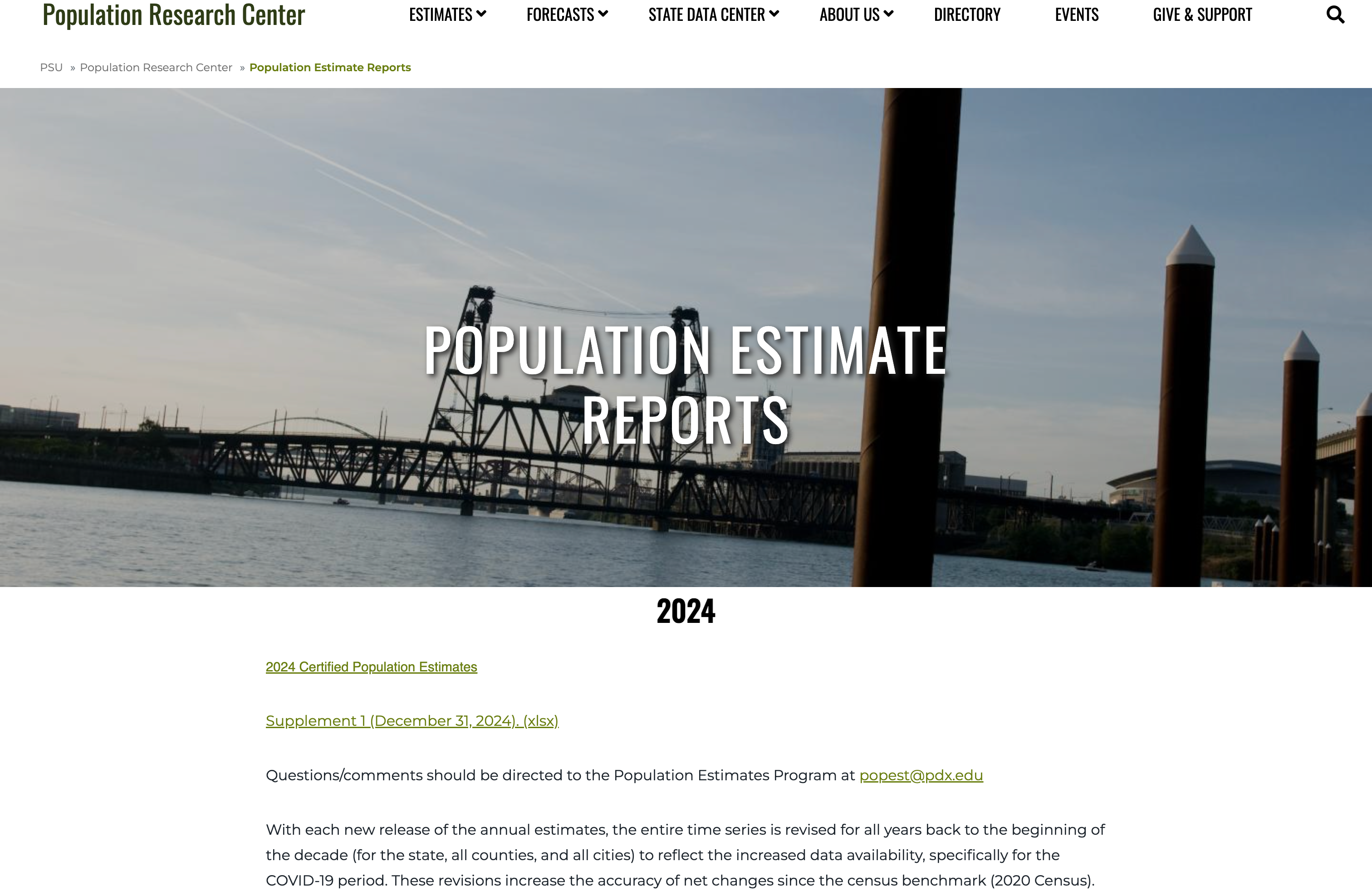

# Incoporation of 2025 Certified Estimates

![Estimates](./pop_est_page.png)

---

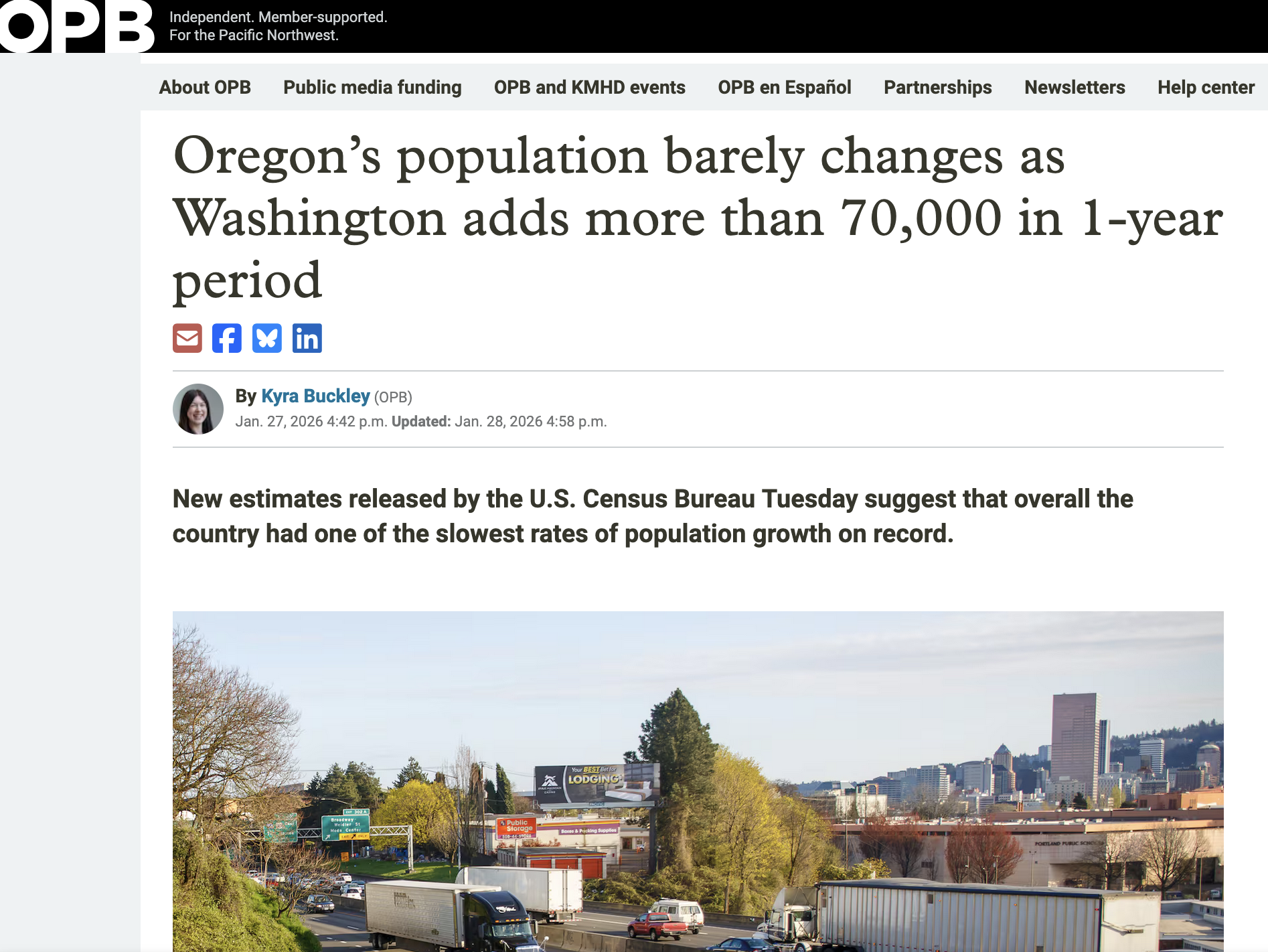

# Slowing Growth Across the State

![Oregonion](./opb_pop_growth_slow.png)

---

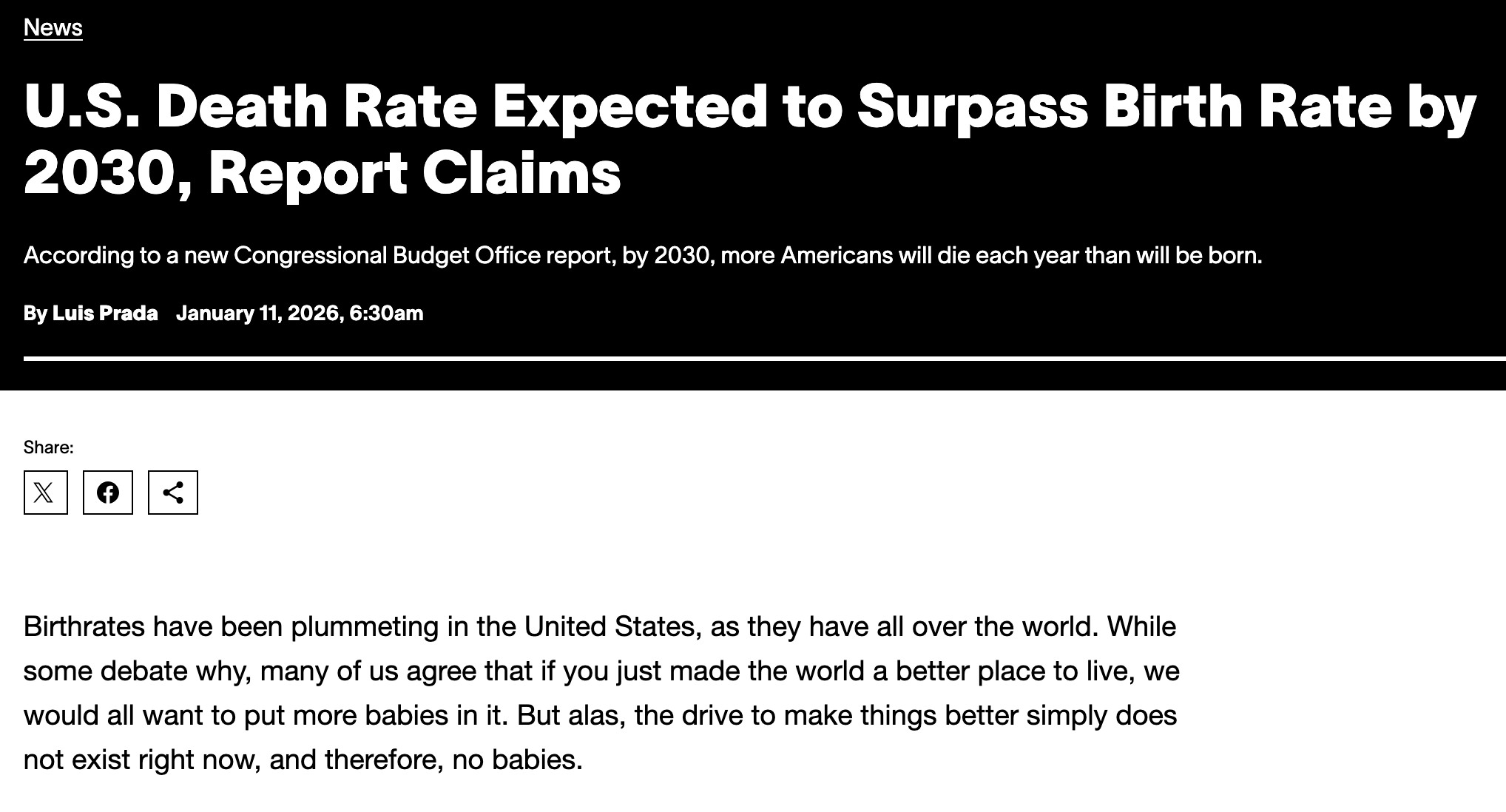

# Changes in Vital Trends

![Oregonion](./births_and_deaths.png)

---

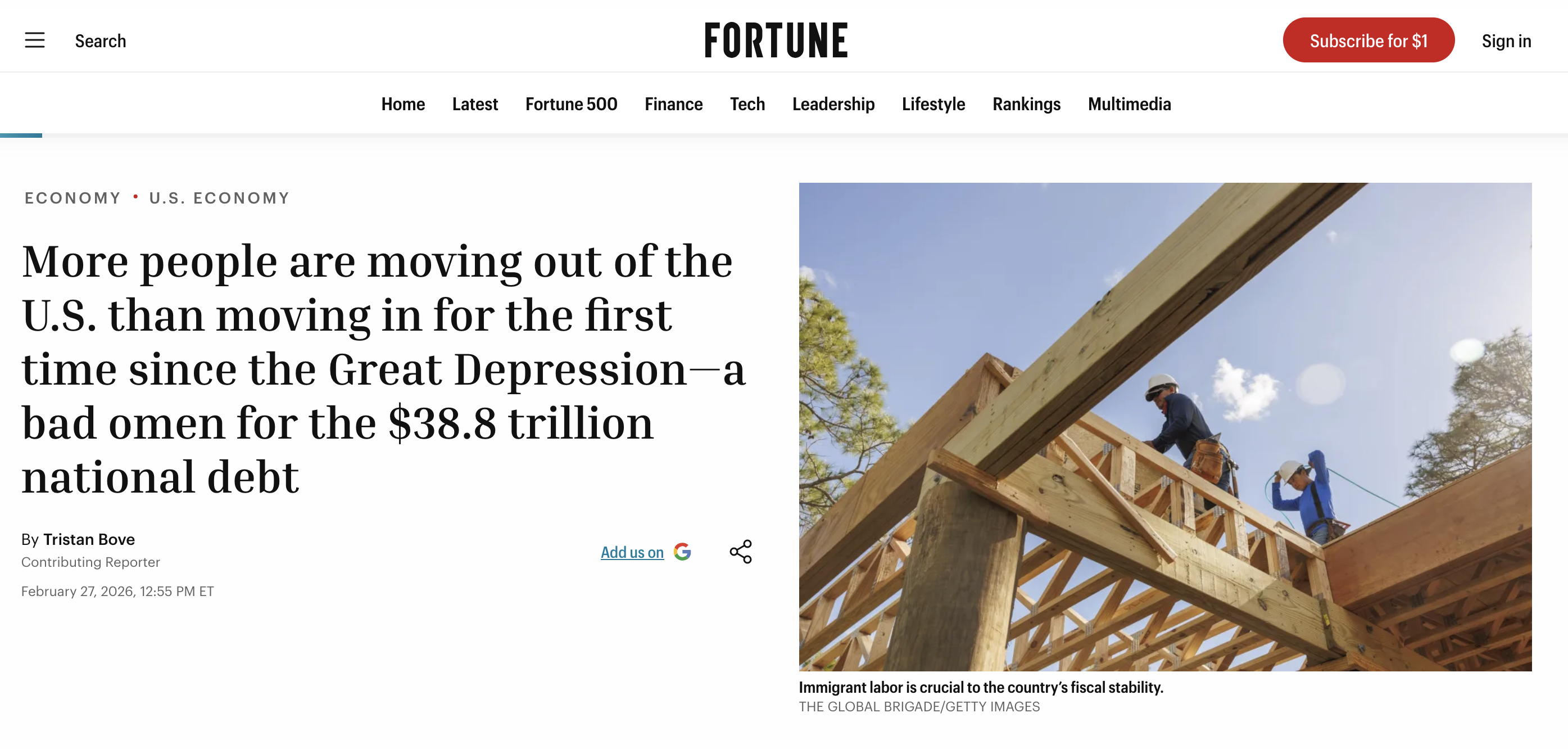

# International Migration

![lex](./inter_mig.png)

---

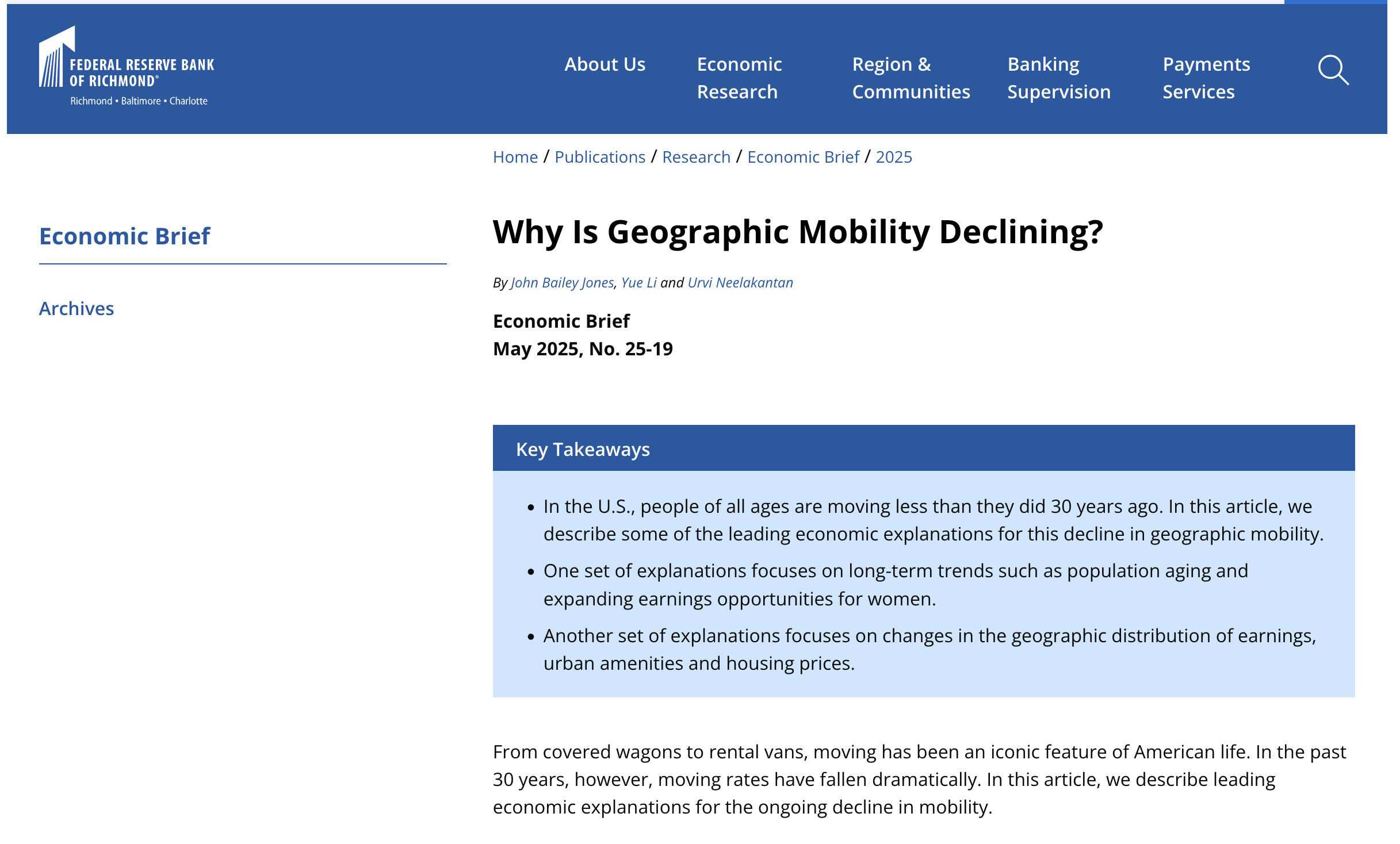

# Domestic Mobility

![housing](./dom_mobility.png)

---

# Klamath County

---
# Summary of Considerations

- Population growth is slowing
- High mortality rate, increasing since 2015
- Negative natural change will hamper growth
- New developments and GQ expansions expected to increase growth
- County and Klamath Falls population forecasts are up from last December

---

# Klamath at a Glance: 2020 Census

<table>
 <thead>
 <tr>
 <th style="text-align:left;"> Statistic </th>
 <th style="text-align:left;"> Klamath </th>
 <th style="text-align:left;"> Oregon </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Total Population </td>
 <td style="text-align:left;"> 69,413 </td>
 <td style="text-align:left;"> 4,237,256 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Population Aged 0-17 </td>
 <td style="text-align:left;"> 21.78% </td>
 <td style="text-align:left;"> 20.20% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Population Aged 65+ </td>
 <td style="text-align:left;"> 21.48% </td>
 <td style="text-align:left;"> 18.25% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Population non-White </td>
 <td style="text-align:left;"> 19.65% </td>
 <td style="text-align:left;"> 23.41% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Persons per Household </td>
 <td style="text-align:left;"> 2.39 (32,730 units) </td>
 <td style="text-align:left;"> 2.48 (1,813,747 units) </td>
 </tr>
</tbody>
</table>

---

# Klamath Employment Changes

<div class="plotly html-widget html-fill-item" id="htmlwidget-2629b71d6d228d378dca" style="width:750px;height:500px;"></div>
<script type="application/json" data-for="htmlwidget-2629b71d6d228d378dca">{"x":{"data":[{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1990.9545454545455,1995.9545454545455,2000.9545454545455,2005.9545454545455,2010.9545454545455,2015.9545454545455,2020.9545454545455],"y":[880,1026,957,1017,669,902,1136],"text":["Year: 1993 County: Klamath Industry: Construction Sector Jobs: 880","Year: 1998 County: Klamath Industry: Construction Sector Jobs: 1,026","Year: 2003 County: Klamath Industry: Construction Sector Jobs: 957","Year: 2008 County: Klamath Industry: Construction Sector Jobs: 1,017","Year: 2013 County: Klamath Industry: Construction Sector Jobs: 669","Year: 2018 County: Klamath Industry: Construction Sector Jobs: 902","Year: 2023 County: Klamath Industry: Construction Sector Jobs: 1,136"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(248,118,109,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Construction","legendgroup":"Construction","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1991.3636363636363,1996.3636363636363,2001.3636363636363,2006.3636363636363,2011.3636363636363,2016.3636363636363,2021.3636363636363],"y":[2203,2666,2565,3089,3173,4019,4543],"text":["Year: 1993 County: Klamath Industry: Education and health services Sector Jobs: 2,203","Year: 1998 County: Klamath Industry: Education and health services Sector Jobs: 2,666","Year: 2003 County: Klamath Industry: Education and health services Sector Jobs: 2,565","Year: 2008 County: Klamath Industry: Education and health services Sector Jobs: 3,089","Year: 2013 County: Klamath Industry: Education and health services Sector Jobs: 3,173","Year: 2018 County: Klamath Industry: Education and health services Sector Jobs: 4,019","Year: 2023 County: Klamath Industry: Education and health services Sector Jobs: 4,543"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(219,142,0,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Education and health services","legendgroup":"Education and health services","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1991.7727272727273,1996.7727272727273,2001.7727272727273,2006.7727272727273,2011.7727272727273,2016.7727272727273,2021.7727272727273],"y":[841,926,997,792,624,713,689],"text":["Year: 1993 County: Klamath Industry: Financial activities Sector Jobs: 841","Year: 1998 County: Klamath Industry: Financial activities Sector Jobs: 926","Year: 2003 County: Klamath Industry: Financial activities Sector Jobs: 997","Year: 2008 County: Klamath Industry: Financial activities Sector Jobs: 792","Year: 2013 County: Klamath Industry: Financial activities Sector Jobs: 624","Year: 2018 County: Klamath Industry: Financial activities Sector Jobs: 713","Year: 2023 County: Klamath Industry: Financial activities Sector Jobs: 689"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(174,162,0,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Financial activities","legendgroup":"Financial activities","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1992.1818181818182,1997.1818181818182,2002.1818181818182,2007.1818181818182,2012.1818181818182,2017.1818181818182,2022.1818181818182],"y":[4234,4313,4917,4995,4684,4690,4798],"text":["Year: 1993 County: Klamath Industry: Government Sector Jobs: 4,234","Year: 1998 County: Klamath Industry: Government Sector Jobs: 4,313","Year: 2003 County: Klamath Industry: Government Sector Jobs: 4,917","Year: 2008 County: Klamath Industry: Government Sector Jobs: 4,995","Year: 2013 County: Klamath Industry: Government Sector Jobs: 4,684","Year: 2018 County: Klamath Industry: Government Sector Jobs: 4,690","Year: 2023 County: Klamath Industry: Government Sector Jobs: 4,798"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(100,178,0,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Government","legendgroup":"Government","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1992.590909090909,1997.590909090909,2002.590909090909,2007.590909090909,2012.590909090909,2017.590909090909,2022.590909090909],"y":[262,253,281,235,179,136,117],"text":["Year: 1993 County: Klamath Industry: Information Sector Jobs: 262","Year: 1998 County: Klamath Industry: Information Sector Jobs: 253","Year: 2003 County: Klamath Industry: Information Sector Jobs: 281","Year: 2008 County: Klamath Industry: Information Sector Jobs: 235","Year: 2013 County: Klamath Industry: Information Sector Jobs: 179","Year: 2018 County: Klamath Industry: Information Sector Jobs: 136","Year: 2023 County: Klamath Industry: Information Sector Jobs: 117"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(0,189,92,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Information","legendgroup":"Information","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1993,1998,2003,2008,2013,2018,2023],"y":[2011,2471,2440,2746,2344,2636,2655],"text":["Year: 1993 County: Klamath Industry: Leisure and hospitality Sector Jobs: 2,011","Year: 1998 County: Klamath Industry: Leisure and hospitality Sector Jobs: 2,471","Year: 2003 County: Klamath Industry: Leisure and hospitality Sector Jobs: 2,440","Year: 2008 County: Klamath Industry: Leisure and hospitality Sector Jobs: 2,746","Year: 2013 County: Klamath Industry: Leisure and hospitality Sector Jobs: 2,344","Year: 2018 County: Klamath Industry: Leisure and hospitality Sector Jobs: 2,636","Year: 2023 County: Klamath Industry: Leisure and hospitality Sector Jobs: 2,655"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(0,193,167,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Leisure and hospitality","legendgroup":"Leisure and hospitality","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1993.409090909091,1998.409090909091,2003.409090909091,2008.409090909091,2013.409090909091,2018.409090909091,2023.409090909091],"y":[2611,3058,2327,2169,1770,1814,1725],"text":["Year: 1993 County: Klamath Industry: Manufacturing Sector Jobs: 2,611","Year: 1998 County: Klamath Industry: Manufacturing Sector Jobs: 3,058","Year: 2003 County: Klamath Industry: Manufacturing Sector Jobs: 2,327","Year: 2008 County: Klamath Industry: Manufacturing Sector Jobs: 2,169","Year: 2013 County: Klamath Industry: Manufacturing Sector Jobs: 1,770","Year: 2018 County: Klamath Industry: Manufacturing Sector Jobs: 1,814","Year: 2023 County: Klamath Industry: Manufacturing Sector Jobs: 1,725"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(0,186,222,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Manufacturing","legendgroup":"Manufacturing","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1993.8181818181818,1998.8181818181818,2003.8181818181818,2008.8181818181818,2013.8181818181818,2018.8181818181818,2023.8181818181818],"y":[1313,894,998,904,999,924,923],"text":["Year: 1993 County: Klamath Industry: Natural resources and mining Sector Jobs: 1,313","Year: 1998 County: Klamath Industry: Natural resources and mining Sector Jobs: 894","Year: 2003 County: Klamath Industry: Natural resources and mining Sector Jobs: 998","Year: 2008 County: Klamath Industry: Natural resources and mining Sector Jobs: 904","Year: 2013 County: Klamath Industry: Natural resources and mining Sector Jobs: 999","Year: 2018 County: Klamath Industry: Natural resources and mining Sector Jobs: 924","Year: 2023 County: Klamath Industry: Natural resources and mining Sector Jobs: 923"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(0,166,255,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Natural resources and mining","legendgroup":"Natural resources and mining","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1994.2272727272727,1999.2272727272727,2004.2272727272727,2009.2272727272727,2014.2272727272727,2019.2272727272727,2024.2272727272727],"y":[884,1556,1594,2205,2211,2177,1643],"text":["Year: 1993 County: Klamath Industry: Professional and business services Sector Jobs: 884","Year: 1998 County: Klamath Industry: Professional and business services Sector Jobs: 1,556","Year: 2003 County: Klamath Industry: Professional and business services Sector Jobs: 1,594","Year: 2008 County: Klamath Industry: Professional and business services Sector Jobs: 2,205","Year: 2013 County: Klamath Industry: Professional and business services Sector Jobs: 2,211","Year: 2018 County: Klamath Industry: Professional and business services Sector Jobs: 2,177","Year: 2023 County: Klamath Industry: Professional and business services Sector Jobs: 1,643"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(179,133,255,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Professional and business services","legendgroup":"Professional and business services","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1994.6363636363637,1999.6363636363637,2004.6363636363637,2009.6363636363637,2014.6363636363637,2019.6363636363637,2024.6363636363637],"y":[4176,4565,4020,4306,4075,4247,4471],"text":["Year: 1993 County: Klamath Industry: Trade, transportation, and utilities Sector Jobs: 4,176","Year: 1998 County: Klamath Industry: Trade, transportation, and utilities Sector Jobs: 4,565","Year: 2003 County: Klamath Industry: Trade, transportation, and utilities Sector Jobs: 4,020","Year: 2008 County: Klamath Industry: Trade, transportation, and utilities Sector Jobs: 4,306","Year: 2013 County: Klamath Industry: Trade, transportation, and utilities Sector Jobs: 4,075","Year: 2018 County: Klamath Industry: Trade, transportation, and utilities Sector Jobs: 4,247","Year: 2023 County: Klamath Industry: Trade, transportation, and utilities Sector Jobs: 4,471"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(239,103,235,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Trade, transportation, and utilities","legendgroup":"Trade, transportation, and utilities","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177,0.40909090909099177],"base":[0,0,0,0,0,0,0],"x":[1995.0454545454545,2000.0454545454545,2005.0454545454545,2010.0454545454545,2015.0454545454545,2020.0454545454545,2025.0454545454545],"y":[743,799,811,805,769,1020,967],"text":["Year: 1993 County: Klamath Industry: Unclassified Sector Jobs: 743","Year: 1998 County: Klamath Industry: Unclassified Sector Jobs: 799","Year: 2003 County: Klamath Industry: Unclassified Sector Jobs: 811","Year: 2008 County: Klamath Industry: Unclassified Sector Jobs: 805","Year: 2013 County: Klamath Industry: Unclassified Sector Jobs: 769","Year: 2018 County: Klamath Industry: Unclassified Sector Jobs: 1,020","Year: 2023 County: Klamath Industry: Unclassified Sector Jobs: 967"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(255,99,182,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Unclassified","legendgroup":"Unclassified","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":47.614777916147794,"r":9.2984640929846432,"b":47.422166874221681,"l":69.73848069738483},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"title":{"text":"Klamath County Job Growth","font":{"color":"rgba(0,0,0,1)","family":"","size":22.316313823163149},"x":0,"xref":"paper"},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[1989.0250000000001,2026.9749999999999],"tickmode":"array","ticktext":["1993","1998","2003","2008","2013","2018","2023"],"tickvals":[1993,1998,2003,2008,2013,2018,2023],"categoryorder":"array","categoryarray":["1993","1998","2003","2008","2013","2018","2023"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"y","title":{"text":"Year","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-249.75,5244.75],"tickmode":"array","ticktext":["0","1,000","2,000","3,000","4,000","5,000"],"tickvals":[0,1000,2000,3000,4000,5000],"categoryorder":"array","categoryarray":["0","1,000","2,000","3,000","4,000","5,000"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"x","title":{"text":"Jobs","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":true,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":2.405153901216893,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.87754254877543},"title":{"text":"Industry","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"source":"A","attrs":{"7d0733dcc31b":{"x":{},"y":{},"fill":{},"text":{},"type":"bar"}},"cur_data":"7d0733dcc31b","visdat":{"7d0733dcc31b":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

---

# Klamath Migration Flows

<div class="plotly html-widget html-fill-item" id="htmlwidget-023db3183a2941f872ba" style="width:750px;height:500px;"></div>
<script type="application/json" data-for="htmlwidget-023db3183a2941f872ba">{"x":{"data":[{"orientation":"v","width":[0.90000000000000036,0.90000000000000036,0.90000000000000013,0.89999999999999991,0.90000000000000036],"base":[0,0,0,0,0],"x":[5,3,2,1,4],"y":[263,239,235,216,197],"text":["Year: 2016-2020 County: Klamath Alt: Oregon Lane County Direction: In Migrants: 263","Year: 2016-2020 County: Klamath Alt: Oregon Deschutes County Direction: In Migrants: 239","Year: 2016-2020 County: Klamath Alt: California Siskiyou County Direction: In Migrants: 235","Year: 2016-2020 County: Klamath Alt: California Riverside County Direction: In Migrants: 216","Year: 2016-2020 County: Klamath Alt: Oregon Jefferson County Direction: In Migrants: 197"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(207,216,45,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"In","legendgroup":"In","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.90000000000000036,0.90000000000000036,0.89999999999999991,0.90000000000000013,0.90000000000000036],"base":[0,0,0,0,0],"x":[4,5,1,2,3],"y":[466,297,238,231,190],"text":["Year: 2016-2020 County: Klamath Alt: Oregon Jackson County Direction: Out Migrants: 466","Year: 2016-2020 County: Klamath Alt: South Dakota Meade County Direction: Out Migrants: 297","Year: 2016-2020 County: Klamath Alt: California Riverside County Direction: Out Migrants: 238","Year: 2016-2020 County: Klamath Alt: Kansas Sumner County Direction: Out Migrants: 231","Year: 2016-2020 County: Klamath Alt: Nevada Clark County Direction: Out Migrants: 190"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(165,223,249,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Out","legendgroup":"Out","showlegend":true,"xaxis":"x2","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":62.492320464923225,"r":9.2984640929846432,"b":28.825238688252394,"l":36.26400996264011},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"title":{"text":"Migration Flows","font":{"color":"rgba(0,0,0,1)","family":"","size":22.316313823163149},"x":0,"xref":"paper"},"xaxis":{"domain":[0,0.48616299986162997],"automargin":true,"type":"linear","autorange":false,"range":[0.40000000000000002,5.5999999999999996],"tickmode":"array","ticktext":["California Riverside County","California Siskiyou County","Oregon Deschutes County","Oregon Jefferson County","Oregon Lane County"],"tickvals":[1,2,3,4,5],"categoryorder":"array","categoryarray":["California Riverside County","California Siskiyou County","Oregon Deschutes County","Oregon Jefferson County","Oregon Lane County"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"y","title":"","hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-23.300000000000001,489.30000000000001],"tickmode":"array","ticktext":["0","100","200","300","400"],"tickvals":[0,100,200,300,400],"categoryorder":"array","categoryarray":["0","100","200","300","400"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"x","title":"","hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":0.48616299986162997,"y0":0,"y1":1},{"type":"rect","fillcolor":"rgba(217,217,217,1)","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":0.48616299986162997,"y0":0,"y1":29.755085097550861,"yanchor":1,"ysizemode":"pixel"},{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0.51383700013836997,"x1":1,"y0":0,"y1":1},{"type":"rect","fillcolor":"rgba(217,217,217,1)","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0.51383700013836997,"x1":1,"y0":0,"y1":29.755085097550861,"yanchor":1,"ysizemode":"pixel"}],"annotations":[{"text":"In","x":0.24308149993081499,"y":1,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(26,26,26,1)","family":"","size":14.87754254877543},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"center","yanchor":"bottom"},{"text":"Out","x":0.75691850006918493,"y":1,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(26,26,26,1)","family":"","size":14.87754254877543},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"center","yanchor":"bottom"}],"xaxis2":{"type":"linear","autorange":false,"range":[0.40000000000000002,5.5999999999999996],"tickmode":"array","ticktext":["California Riverside County","Kansas Sumner County","Nevada Clark County","Oregon Jackson County","South Dakota Meade County"],"tickvals":[1,2,3,4,5],"categoryorder":"array","categoryarray":["California Riverside County","Kansas Sumner County","Nevada Clark County","Oregon Jackson County","South Dakota Meade County"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"domain":[0.51383700013836997,1],"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"y","title":"","hoverformat":".2f"},"showlegend":false,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":2.405153901216893,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.87754254877543}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"source":"A","attrs":{"7d07455fcd39":{"x":{},"y":{},"text":{},"fill":{},"type":"bar"}},"cur_data":"7d07455fcd39","visdat":{"7d07455fcd39":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

---

# Klamath Population

.pulll-left[
Klamath's population is expected to increase, albeit slower than what has been observed in the past.
]

.pulll-right[
<div class="plotly html-widget html-fill-item" id="htmlwidget-aaf84e520835034c951f" style="width:504px;height:400px;"></div>
<script type="application/json" data-for="htmlwidget-aaf84e520835034c951f">{"x":{"data":[{"orientation":"v","width":[9,9,9,9,9,9,9,9,9,9],"base":[0,0,0,0,0,0,0,0,0,0],"x":[1980,1990,2000,2010,2020,2030,2040,2050,2060,2070],"y":[59.116999999999997,57.948,63.884999999999998,66.331999999999994,69.63000000000001,70.420538653334674,71.670148812577011,72.727071218956411,74.068765367151343,75.434089201682383],"text":["Type: Estimate Year: 1980 Population: 59,117 APG: +1.7%","Type: Estimate Year: 1990 Population: 57,948 APG: --0.2%","Type: Estimate Year: 2000 Population: 63,885 APG: +1.0%","Type: Estimate Year: 2010 Population: 66,332 APG: +0.4%","Type: Estimate Year: 2020 Population: 69,630 APG: +0.5%","Type: Forecast Year: 2030 Population: 70,421 APG: +0.1%","Type: Forecast Year: 2040 Population: 71,670 APG: +0.2%","Type: Forecast Year: 2050 Population: 72,727 APG: +0.1%","Type: Forecast Year: 2060 Population: 74,069 APG: +0.2%","Type: Forecast Year: 2070 Population: 75,434 APG: +0.2%"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(109,141,36,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[9,9,9,9,9],"base":[0,0,0,0,0],"x":[2030,2040,2050,2060,2070],"y":[71.146748431035689,71.596880281070597,72.242004947876595,72.971841867423009,73.709052086333401],"text":["Type: Previous Forecast Year: 2030 Population: 71,147","Type: Previous Forecast Year: 2040 Population: 71,597","Type: Previous Forecast Year: 2050 Population: 72,242","Type: Previous Forecast Year: 2060 Population: 72,972","Type: Previous Forecast Year: 2070 Population: 73,709"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(89,89,89,0)","line":{"width":1.8897637795275593,"color":"rgba(0,0,0,1)"}},"showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[2025,2025],"y":[-3.7717044600841194,79.205793661766506],"text":"","type":"scatter","mode":"lines","line":{"width":1.8897637795275593,"color":"rgba(0,0,0,1)","dash":"dot"},"hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":47.614777916147794,"r":9.2984640929846432,"b":47.422166874221681,"l":47.422166874221681},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"title":{"text":"Klamath Population Change","font":{"color":"rgba(0,0,0,1)","family":"","size":22.316313823163149},"x":0,"xref":"paper"},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[1970.55,2079.4499999999998],"tickmode":"array","ticktext":["1990","2010","2030","2050","2070"],"tickvals":[1990,2010,2030,2050,2070],"categoryorder":"array","categoryarray":["1990","2010","2030","2050","2070"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"y","title":{"text":"Year","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-3.7717044600841194,79.205793661766506],"tickmode":"array","ticktext":["0","20","40","60"],"tickvals":[4.4408920985006262e-16,20,40,59.999999999999993],"categoryorder":"array","categoryarray":["0","20","40","60"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"x","title":{"text":"Population (in Thousands)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":false,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":2.405153901216893,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.87754254877543}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"source":"A","attrs":{"7d071c5a2040":{"x":{},"y":{},"text":{},"type":"bar"},"7d0760fb584a":{"x":{},"y":{},"text":{}},"7d0715619404":{"x":{},"y":{},"text":{},"label":{}},"7d07393c9d93":{"xintercept":{}}},"cur_data":"7d071c5a2040","visdat":{"7d071c5a2040":["function (y) ","x"],"7d0760fb584a":["function (y) ","x"],"7d0715619404":["function (y) ","x"],"7d07393c9d93":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>
]

---

# Klamath Compositional Changes

.pulll-left[
Natural change has been on the decline, lowering the impact of positive net migration.
]

.pulll-right[
<div class="plotly html-widget html-fill-item" id="htmlwidget-04ecc62d77f2b4e68b94" style="width:504px;height:400px;"></div>
<script type="application/json" data-for="htmlwidget-04ecc62d77f2b4e68b94">{"x":{"data":[{"orientation":"v","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[475.60000000000002,232.39999999999975,341,0,0,-71.799999999999997,-304.66666666666669,-300.31737623422669,-411.4430356555651,-487.95018193576055,-519.31914115965265,-540.20797094593922],"x":[1,2,3,4,5,6,7,8,9,10,11,12],"y":[279.60000000000002,183.19999999999999,90,110.59999999999999,61.399999999999999,71.799999999999997,304.66666666666669,300.31737623422669,411.4430356555651,487.95018193576055,519.31914115965265,540.20797094593922],"text":["Year: 1991-1995 Change: Natural Change Population: 280","Year: 1996-2000 Change: Natural Change Population: 183","Year: 2001-2005 Change: Natural Change Population: 90","Year: 2006-2010 Change: Natural Change Population: 111","Year: 2011-2015 Change: Natural Change Population: 61","Year: 2016-2020 Change: Natural Change Population: -72","Year: 2021-2025 Change: Natural Change Population: -305","Year: 2026-2030 Change: Natural Change Population: -300","Year: 2031-2035 Change: Natural Change Population: -411","Year: 2036-2040 Change: Natural Change Population: -488","Year: 2041-2045 Change: Natural Change Population: -519","Year: 2046-2050 Change: Natural Change Population: -540"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(207,216,45,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Natural Change","legendgroup":"Natural Change","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[0,0,0,-105.00000000000027,-68.400000000000233,0,0,0,0,0,0,0],"x":[1,2,3,4,5,6,7,8,9,10,11,12],"y":[475.60000000000002,232.39999999999975,341,105.00000000000027,68.400000000000233,738.80000000000655,216.33333333333727,539.22542473387477,547.66203699968719,578.51553342337149,618.22058263919973,659.85894821544571],"text":["Year: 1991-1995 Change: Net Migrants Population: 476","Year: 1996-2000 Change: Net Migrants Population: 232","Year: 2001-2005 Change: Net Migrants Population: 341","Year: 2006-2010 Change: Net Migrants Population: -105","Year: 2011-2015 Change: Net Migrants Population: -68","Year: 2016-2020 Change: Net Migrants Population: 739","Year: 2021-2025 Change: Net Migrants Population: 216","Year: 2026-2030 Change: Net Migrants Population: 539","Year: 2031-2035 Change: Net Migrants Population: 548","Year: 2036-2040 Change: Net Migrants Population: 579","Year: 2041-2045 Change: Net Migrants Population: 618","Year: 2046-2050 Change: Net Migrants Population: 660"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(165,223,249,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Net Migrants","legendgroup":"Net Migrants","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[7.7000000000000002,7.7000000000000002],"y":[-604.97836949323619,819.97039854729701],"text":"","type":"scatter","mode":"lines","line":{"width":1.8897637795275593,"color":"rgba(0,0,0,1)","dash":"dash"},"hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":47.614777916147794,"r":9.2984640929846432,"b":47.422166874221681,"l":62.299709422997111},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"title":{"text":"Components of Change","font":{"color":"rgba(0,0,0,1)","family":"","size":22.316313823163149},"x":0,"xref":"paper"},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[0.40000000000000002,12.6],"tickmode":"array","ticktext":["1991- 1995","2001- 2005","2011- 2015","2021- 2025","2031- 2035","2041- 2045"],"tickvals":[1,3,5,7.0000000000000009,9,11],"categoryorder":"array","categoryarray":["1991- 1995","2001- 2005","2011- 2015","2021- 2025","2031- 2035","2041- 2045"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"y","title":{"text":"Year","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-604.97836949323619,819.97039854729701],"tickmode":"array","ticktext":["-500","0","500"],"tickvals":[-500,0,500],"categoryorder":"array","categoryarray":["-500","0","500"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"x","title":{"text":"Count","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":true,"legend":{"bgcolor":null,"bordercolor":null,"borderwidth":0,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.87754254877543},"title":{"text":"","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"source":"A","attrs":{"7d0727849bfc":{"x":{},"y":{},"fill":{},"text":{},"type":"bar"},"7d07731cd1a8":{"xintercept":{}}},"cur_data":"7d0727849bfc","visdat":{"7d0727849bfc":["function (y) ","x"],"7d07731cd1a8":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>
]

---

# Klamath Births

.pulll-right[
<div class="plotly html-widget html-fill-item" id="htmlwidget-6c5227821c7b844288be" style="width:504px;height:400px;"></div>
<script type="application/json" data-for="htmlwidget-6c5227821c7b844288be">{"x":{"data":[{"orientation":"v","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[0,0,0,0,0,0,0,0,0,0,0,0],"x":[1,2,3,4,5,6,7,8,9,10,11,12],"y":[861.60000000000002,828.39999999999998,792.39999999999998,822.60000000000002,793.79999999999995,777.79999999999995,730.5,665.55713123927467,630.00467649244638,609.31018090802058,594.42016307108179,576.92401048054717],"text":["Year: 1991-1995 Annual Births: 862","Year: 1996-2000 Annual Births: 828","Year: 2001-2005 Annual Births: 792","Year: 2006-2010 Annual Births: 823","Year: 2011-2015 Annual Births: 794","Year: 2016-2020 Annual Births: 778","Year: 2021-2025 Annual Births: 730","Year: 2026-2030 Annual Births: 666","Year: 2031-2035 Annual Births: 630","Year: 2036-2040 Annual Births: 609","Year: 2041-2045 Annual Births: 594","Year: 2046-2050 Annual Births: 577"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(165,223,249,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[7.7000000000000002,7.7000000000000002],"y":[-43.080000000000005,904.68000000000006],"text":"","type":"scatter","mode":"lines","line":{"width":1.8897637795275593,"color":"rgba(0,0,0,1)","dash":"dot"},"hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":47.614777916147794,"r":9.2984640929846432,"b":47.422166874221681,"l":54.860938148609392},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"title":{"text":"Klamath Birth Projections","font":{"color":"rgba(0,0,0,1)","family":"","size":22.316313823163149},"x":0,"xref":"paper"},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[0.40000000000000002,12.6],"tickmode":"array","ticktext":["1991- 1995","2001- 2005","2011- 2015","2021- 2025","2031- 2035","2041- 2045"],"tickvals":[1,3,5,7.0000000000000009,9,11],"categoryorder":"array","categoryarray":["1991- 1995","2001- 2005","2011- 2015","2021- 2025","2031- 2035","2041- 2045"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"y","title":{"text":"Year","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-43.080000000000005,904.68000000000006],"tickmode":"array","ticktext":["0","250","500","750"],"tickvals":[0,249.99999999999997,500.00000000000006,750],"categoryorder":"array","categoryarray":["0","250","500","750"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"x","title":{"text":"Annual Births","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":false,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":2.405153901216893,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.87754254877543}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"source":"A","attrs":{"7d072a4e6f2a":{"x":{},"y":{},"text":{},"type":"bar"},"7d073644419":{"xintercept":{}},"7d072bb2c70c":{"x":{},"y":{},"text":{},"label":{}}},"cur_data":"7d072a4e6f2a","visdat":{"7d072a4e6f2a":["function (y) ","x"],"7d073644419":["function (y) ","x"],"7d072bb2c70c":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>
]

---

# Klamath Deaths

.pulll-right[
<div class="plotly html-widget html-fill-item" id="htmlwidget-fed8be29433e2f8df913" style="width:504px;height:400px;"></div>
<script type="application/json" data-for="htmlwidget-fed8be29433e2f8df913">{"x":{"data":[{"orientation":"v","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[0,0,0,0,0,0,0,0,0,0,0,0],"x":[1,2,3,4,5,6,7,8,9,10,11,12],"y":[582,645.20000000000005,702.39999999999998,712,732.39999999999998,849.60000000000002,1019.5,965.87450747350135,1041.4477121480115,1097.2603628437812,1113.7393042307344,1117.1319814264864],"text":["Year: 1991-1995 Annual Deaths: 582","Year: 1996-2000 Annual Deaths: 645","Year: 2001-2005 Annual Deaths: 702","Year: 2006-2010 Annual Deaths: 712","Year: 2011-2015 Annual Deaths: 732","Year: 2016-2020 Annual Deaths: 850","Year: 2021-2025 Annual Deaths: 1,020","Year: 2026-2030 Annual Deaths: 966","Year: 2031-2035 Annual Deaths: 1,041","Year: 2036-2040 Annual Deaths: 1,097","Year: 2041-2045 Annual Deaths: 1,114","Year: 2046-2050 Annual Deaths: 1,117"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(101,3,96,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[7.7000000000000002,7.7000000000000002],"y":[-55.856599071324325,1172.9885804978107],"text":"","type":"scatter","mode":"lines","line":{"width":1.8897637795275593,"color":"rgba(0,0,0,1)","dash":"dot"},"hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":47.614777916147794,"r":9.2984640929846432,"b":47.422166874221681,"l":54.860938148609392},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"title":{"text":"Klamath Death Projections","font":{"color":"rgba(0,0,0,1)","family":"","size":22.316313823163149},"x":0,"xref":"paper"},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[0.40000000000000002,12.6],"tickmode":"array","ticktext":["1991- 1995","2001- 2005","2011- 2015","2021- 2025","2031- 2035","2041- 2045"],"tickvals":[1,3,5,7.0000000000000009,9,11],"categoryorder":"array","categoryarray":["1991- 1995","2001- 2005","2011- 2015","2021- 2025","2031- 2035","2041- 2045"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"y","title":{"text":"Year","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-55.856599071324325,1172.9885804978107],"tickmode":"array","ticktext":["0","300","600","900"],"tickvals":[0,300,600,900],"categoryorder":"array","categoryarray":["0","300","600","900"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"x","title":{"text":"Annual Deaths","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":false,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":2.405153901216893,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.87754254877543}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"source":"A","attrs":{"7d07368ae134":{"x":{},"y":{},"text":{},"type":"bar"},"7d0757c738e5":{"xintercept":{}},"7d0758686f68":{"x":{},"y":{},"text":{},"label":{}}},"cur_data":"7d07368ae134","visdat":{"7d07368ae134":["function (y) ","x"],"7d0757c738e5":["function (y) ","x"],"7d0758686f68":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>
]

---

# Klamath Life Expectancy & TFR

---

# Population Pyramids

.pulll-left[
Growth of the population 65 and older is expected to make the composition of the county more "top-heavy".
]

.pulll-right[
<div class="plotly html-widget html-fill-item" id="htmlwidget-f6fd308c5fc2accaa27a" style="width:504px;height:400px;"></div>
<script type="application/json" data-for="htmlwidget-f6fd308c5fc2accaa27a">{"x":{"data":[{"orientation":"h","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],"x":[2.1259999999999999,2.1280000000000001,2.101,1.99,1.7030000000000001,1.891,2.1320000000000001,2.343,2.1230000000000002,1.587,1.341,1.413,1.419,1.411,1.1279999999999999,0.89200000000000002,0.57099999999999995,0.45600000000000002],"y":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18],"text":["Year: 1990 Type: Estimate Sex: Female Age: 0-4 Population: 2,126","Year: 1990 Type: Estimate Sex: Female Age: 5-9 Population: 2,128","Year: 1990 Type: Estimate Sex: Female Age: 10-14 Population: 2,101","Year: 1990 Type: Estimate Sex: Female Age: 15-19 Population: 1,990","Year: 1990 Type: Estimate Sex: Female Age: 20-24 Population: 1,703","Year: 1990 Type: Estimate Sex: Female Age: 25-29 Population: 1,891","Year: 1990 Type: Estimate Sex: Female Age: 30-34 Population: 2,132","Year: 1990 Type: Estimate Sex: Female Age: 35-39 Population: 2,343","Year: 1990 Type: Estimate Sex: Female Age: 40-44 Population: 2,123","Year: 1990 Type: Estimate Sex: Female Age: 45-49 Population: 1,587","Year: 1990 Type: Estimate Sex: Female Age: 50-54 Population: 1,341","Year: 1990 Type: Estimate Sex: Female Age: 55-59 Population: 1,413","Year: 1990 Type: Estimate Sex: Female Age: 60-64 Population: 1,419","Year: 1990 Type: Estimate Sex: Female Age: 65-69 Population: 1,411","Year: 1990 Type: Estimate Sex: Female Age: 70-74 Population: 1,128","Year: 1990 Type: Estimate Sex: Female Age: 75-79 Population: 892","Year: 1990 Type: Estimate Sex: Female Age: 80-84 Population: 571","Year: 1990 Type: Estimate Sex: Female Age: 85+ Population: 456"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(207,216,45,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Female","legendgroup":"Female","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"h","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],"x":[1.9309722680989789,2.1419692378394681,2.1179695825135361,1.8829729574471139,1.8529733882896986,2.1759687495512057,2.1589689936953369,1.998971291522454,1.8189738765779611,1.8229738191322831,1.9629718085335552,2.3919656474845974,2.6089625310565698,2.6889613821430114,2.1209695394292769,1.3549805402766011,0.83098806566040995,0.78998865447860867],"y":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18],"text":["Year: 2020 Type: Estimate Sex: Female Age: 0-4 Population: 1,931","Year: 2020 Type: Estimate Sex: Female Age: 5-9 Population: 2,142","Year: 2020 Type: Estimate Sex: Female Age: 10-14 Population: 2,118","Year: 2020 Type: Estimate Sex: Female Age: 15-19 Population: 1,883","Year: 2020 Type: Estimate Sex: Female Age: 20-24 Population: 1,853","Year: 2020 Type: Estimate Sex: Female Age: 25-29 Population: 2,176","Year: 2020 Type: Estimate Sex: Female Age: 30-34 Population: 2,159","Year: 2020 Type: Estimate Sex: Female Age: 35-39 Population: 1,999","Year: 2020 Type: Estimate Sex: Female Age: 40-44 Population: 1,819","Year: 2020 Type: Estimate Sex: Female Age: 45-49 Population: 1,823","Year: 2020 Type: Estimate Sex: Female Age: 50-54 Population: 1,963","Year: 2020 Type: Estimate Sex: Female Age: 55-59 Population: 2,392","Year: 2020 Type: Estimate Sex: Female Age: 60-64 Population: 2,609","Year: 2020 Type: Estimate Sex: Female Age: 65-69 Population: 2,689","Year: 2020 Type: Estimate Sex: Female Age: 70-74 Population: 2,121","Year: 2020 Type: Estimate Sex: Female Age: 75-79 Population: 1,355","Year: 2020 Type: Estimate Sex: Female Age: 80-84 Population: 831","Year: 2020 Type: Estimate Sex: Female Age: 85+ Population: 790"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(207,216,45,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Female","legendgroup":"Female","showlegend":false,"xaxis":"x2","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"h","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],"x":[1.6547196419758579,1.866006396267776,2.1331625704500419,2.1257027567492024,1.9251831334247602,1.8095342883779646,1.8905755931149104,2.3391623518933451,2.3760785801740996,2.1911949026722124,1.9815288024995661,1.9677616014632644,1.9975796167274464,2.4101954004958146,2.3081899741780743,2.1133514947447263,1.2543423026403695,0.78678230796815318],"y":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18],"text":["Year: 2030 Type: Forecast Sex: Female Age: 0-4 Population: 1,655","Year: 2030 Type: Forecast Sex: Female Age: 5-9 Population: 1,866","Year: 2030 Type: Forecast Sex: Female Age: 10-14 Population: 2,133","Year: 2030 Type: Forecast Sex: Female Age: 15-19 Population: 2,126","Year: 2030 Type: Forecast Sex: Female Age: 20-24 Population: 1,925","Year: 2030 Type: Forecast Sex: Female Age: 25-29 Population: 1,810","Year: 2030 Type: Forecast Sex: Female Age: 30-34 Population: 1,891","Year: 2030 Type: Forecast Sex: Female Age: 35-39 Population: 2,339","Year: 2030 Type: Forecast Sex: Female Age: 40-44 Population: 2,376","Year: 2030 Type: Forecast Sex: Female Age: 45-49 Population: 2,191","Year: 2030 Type: Forecast Sex: Female Age: 50-54 Population: 1,982","Year: 2030 Type: Forecast Sex: Female Age: 55-59 Population: 1,968","Year: 2030 Type: Forecast Sex: Female Age: 60-64 Population: 1,998","Year: 2030 Type: Forecast Sex: Female Age: 65-69 Population: 2,410","Year: 2030 Type: Forecast Sex: Female Age: 70-74 Population: 2,308","Year: 2030 Type: Forecast Sex: Female Age: 75-79 Population: 2,113","Year: 2030 Type: Forecast Sex: Female Age: 80-84 Population: 1,254","Year: 2030 Type: Forecast Sex: Female Age: 85+ Population: 787"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(207,216,45,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Female","legendgroup":"Female","showlegend":false,"xaxis":"x","yaxis":"y2","hoverinfo":"text","frame":null},{"orientation":"h","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],"x":[1.433956184763282,1.5523047121485758,1.7369188869156849,1.7631523576244217,1.6436460250670655,1.7294134820046421,1.9269141377383403,2.0948774953563705,2.2507017340650219,2.2993173178106225,2.479212291586768,2.8666902093612552,2.8056943135648598,2.5369614600491941,2.1031517071255958,1.7010925897897182,1.2265710204651008,1.3566682592941213],"y":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18],"text":["Year: 2050 Type: Forecast Sex: Female Age: 0-4 Population: 1,434","Year: 2050 Type: Forecast Sex: Female Age: 5-9 Population: 1,552","Year: 2050 Type: Forecast Sex: Female Age: 10-14 Population: 1,737","Year: 2050 Type: Forecast Sex: Female Age: 15-19 Population: 1,763","Year: 2050 Type: Forecast Sex: Female Age: 20-24 Population: 1,644","Year: 2050 Type: Forecast Sex: Female Age: 25-29 Population: 1,729","Year: 2050 Type: Forecast Sex: Female Age: 30-34 Population: 1,927","Year: 2050 Type: Forecast Sex: Female Age: 35-39 Population: 2,095","Year: 2050 Type: Forecast Sex: Female Age: 40-44 Population: 2,251","Year: 2050 Type: Forecast Sex: Female Age: 45-49 Population: 2,299","Year: 2050 Type: Forecast Sex: Female Age: 50-54 Population: 2,479","Year: 2050 Type: Forecast Sex: Female Age: 55-59 Population: 2,867","Year: 2050 Type: Forecast Sex: Female Age: 60-64 Population: 2,806","Year: 2050 Type: Forecast Sex: Female Age: 65-69 Population: 2,537","Year: 2050 Type: Forecast Sex: Female Age: 70-74 Population: 2,103","Year: 2050 Type: Forecast Sex: Female Age: 75-79 Population: 1,701","Year: 2050 Type: Forecast Sex: Female Age: 80-84 Population: 1,227","Year: 2050 Type: Forecast Sex: Female Age: 85+ Population: 1,357"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(207,216,45,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Female","legendgroup":"Female","showlegend":false,"xaxis":"x2","yaxis":"y2","hoverinfo":"text","frame":null},{"orientation":"h","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[-2.1629999999999998,-2.2639999999999998,-2.359,-2.2930000000000001,-2.0449999999999999,-1.931,-2.0939999999999999,-2.23,-2.2370000000000001,-1.6799999999999999,-1.425,-1.3149999999999999,-1.367,-1.353,-1.0609999999999999,-0.747,-0.39200000000000002,-0.23699999999999999],"x":[2.1629999999999998,2.2639999999999998,2.359,2.2930000000000001,2.0449999999999999,1.931,2.0939999999999999,2.23,2.2370000000000001,1.6799999999999999,1.425,1.3149999999999999,1.367,1.353,1.0609999999999999,0.747,0.39200000000000002,0.23699999999999999],"y":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18],"text":["Year: 1990 Type: Estimate Sex: Male Age: 0-4 Population: 2,163","Year: 1990 Type: Estimate Sex: Male Age: 5-9 Population: 2,264","Year: 1990 Type: Estimate Sex: Male Age: 10-14 Population: 2,359","Year: 1990 Type: Estimate Sex: Male Age: 15-19 Population: 2,293","Year: 1990 Type: Estimate Sex: Male Age: 20-24 Population: 2,045","Year: 1990 Type: Estimate Sex: Male Age: 25-29 Population: 1,931","Year: 1990 Type: Estimate Sex: Male Age: 30-34 Population: 2,094","Year: 1990 Type: Estimate Sex: Male Age: 35-39 Population: 2,230","Year: 1990 Type: Estimate Sex: Male Age: 40-44 Population: 2,237","Year: 1990 Type: Estimate Sex: Male Age: 45-49 Population: 1,680","Year: 1990 Type: Estimate Sex: Male Age: 50-54 Population: 1,425","Year: 1990 Type: Estimate Sex: Male Age: 55-59 Population: 1,315","Year: 1990 Type: Estimate Sex: Male Age: 60-64 Population: 1,367","Year: 1990 Type: Estimate Sex: Male Age: 65-69 Population: 1,353","Year: 1990 Type: Estimate Sex: Male Age: 70-74 Population: 1,061","Year: 1990 Type: Estimate Sex: Male Age: 75-79 Population: 747","Year: 1990 Type: Estimate Sex: Male Age: 80-84 Population: 392","Year: 1990 Type: Estimate Sex: Male Age: 85+ Population: 237"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(165,223,249,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Male","legendgroup":"Male","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"h","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[-2.0639703580301876,-2.1879685772141722,-2.2149681894558459,-2.2129682181786849,-1.9759716218351022,-2.244967758613261,-2.2039683474314602,-2.0159710473783226,-1.9069726127730464,-1.9779715931122632,-1.9669717510878775,-2.2439677729746808,-2.4219652166420125,-2.5679631198747686,-2.192968505407074,-1.3479806408065373,-0.75498915712829062,-0.47499317832574572],"x":[2.0639703580301876,2.1879685772141722,2.2149681894558459,2.2129682181786849,1.9759716218351022,2.244967758613261,2.2039683474314602,2.0159710473783226,1.9069726127730464,1.9779715931122632,1.9669717510878775,2.2439677729746808,2.4219652166420125,2.5679631198747686,2.192968505407074,1.3479806408065373,0.75498915712829062,0.47499317832574572],"y":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18],"text":["Year: 2020 Type: Estimate Sex: Male Age: 0-4 Population: 2,064","Year: 2020 Type: Estimate Sex: Male Age: 5-9 Population: 2,188","Year: 2020 Type: Estimate Sex: Male Age: 10-14 Population: 2,215","Year: 2020 Type: Estimate Sex: Male Age: 15-19 Population: 2,213","Year: 2020 Type: Estimate Sex: Male Age: 20-24 Population: 1,976","Year: 2020 Type: Estimate Sex: Male Age: 25-29 Population: 2,245","Year: 2020 Type: Estimate Sex: Male Age: 30-34 Population: 2,204","Year: 2020 Type: Estimate Sex: Male Age: 35-39 Population: 2,016","Year: 2020 Type: Estimate Sex: Male Age: 40-44 Population: 1,907","Year: 2020 Type: Estimate Sex: Male Age: 45-49 Population: 1,978","Year: 2020 Type: Estimate Sex: Male Age: 50-54 Population: 1,967","Year: 2020 Type: Estimate Sex: Male Age: 55-59 Population: 2,244","Year: 2020 Type: Estimate Sex: Male Age: 60-64 Population: 2,422","Year: 2020 Type: Estimate Sex: Male Age: 65-69 Population: 2,568","Year: 2020 Type: Estimate Sex: Male Age: 70-74 Population: 2,193","Year: 2020 Type: Estimate Sex: Male Age: 75-79 Population: 1,348","Year: 2020 Type: Estimate Sex: Male Age: 80-84 Population: 755","Year: 2020 Type: Estimate Sex: Male Age: 85+ Population: 475"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(165,223,249,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Male","legendgroup":"Male","showlegend":false,"xaxis":"x2","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"h","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[-1.7264768876532977,-1.9847667514056093,-2.3562649887043041,-2.3402108147943279,-2.3424264977589133,-1.9730615873313664,-1.9826339086517437,-2.2881358510728798,-2.3474676029219981,-2.0963975992862505,-1.9339916874455738,-2.0516762736981784,-1.9135459384997764,-2.2236833371512743,-2.1166783462294445,-1.893713189652706,-1.2071386675648981,-0.51121700769455791],"x":[1.7264768876532977,1.9847667514056093,2.3562649887043041,2.3402108147943279,2.3424264977589133,1.9730615873313664,1.9826339086517437,2.2881358510728798,2.3474676029219981,2.0963975992862505,1.9339916874455738,2.0516762736981784,1.9135459384997764,2.2236833371512743,2.1166783462294445,1.893713189652706,1.2071386675648981,0.51121700769455791],"y":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18],"text":["Year: 2030 Type: Forecast Sex: Male Age: 0-4 Population: 1,726","Year: 2030 Type: Forecast Sex: Male Age: 5-9 Population: 1,985","Year: 2030 Type: Forecast Sex: Male Age: 10-14 Population: 2,356","Year: 2030 Type: Forecast Sex: Male Age: 15-19 Population: 2,340","Year: 2030 Type: Forecast Sex: Male Age: 20-24 Population: 2,342","Year: 2030 Type: Forecast Sex: Male Age: 25-29 Population: 1,973","Year: 2030 Type: Forecast Sex: Male Age: 30-34 Population: 1,983","Year: 2030 Type: Forecast Sex: Male Age: 35-39 Population: 2,288","Year: 2030 Type: Forecast Sex: Male Age: 40-44 Population: 2,347","Year: 2030 Type: Forecast Sex: Male Age: 45-49 Population: 2,096","Year: 2030 Type: Forecast Sex: Male Age: 50-54 Population: 1,934","Year: 2030 Type: Forecast Sex: Male Age: 55-59 Population: 2,052","Year: 2030 Type: Forecast Sex: Male Age: 60-64 Population: 1,914","Year: 2030 Type: Forecast Sex: Male Age: 65-69 Population: 2,224","Year: 2030 Type: Forecast Sex: Male Age: 70-74 Population: 2,117","Year: 2030 Type: Forecast Sex: Male Age: 75-79 Population: 1,894","Year: 2030 Type: Forecast Sex: Male Age: 80-84 Population: 1,207","Year: 2030 Type: Forecast Sex: Male Age: 85+ Population: 511"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(165,223,249,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Male","legendgroup":"Male","showlegend":false,"xaxis":"x","yaxis":"y2","hoverinfo":"text","frame":null},{"orientation":"h","width":[0.89999999999999991,0.90000000000000013,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.90000000000000036,0.89999999999999947,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858,0.89999999999999858],"base":[-1.4926180565747313,-1.645111307168039,-1.8945596001760898,-2.1418518487997305,-2.3027909832248259,-2.2954876507885054,-2.4284531566456757,-2.3255087564504549,-2.4308281782479919,-2.3390623880460555,-2.4918511113835802,-2.8032564080304638,-2.7254221998746471,-2.4068410940803853,-2.0483537331854929,-1.6591931712600592,-1.0412058364973846,-0.74743155379165749],"x":[1.4926180565747313,1.645111307168039,1.8945596001760898,2.1418518487997305,2.3027909832248259,2.2954876507885054,2.4284531566456757,2.3255087564504549,2.4308281782479919,2.3390623880460555,2.4918511113835802,2.8032564080304638,2.7254221998746471,2.4068410940803853,2.0483537331854929,1.6591931712600592,1.0412058364973846,0.74743155379165749],"y":[1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18],"text":["Year: 2050 Type: Forecast Sex: Male Age: 0-4 Population: 1,493","Year: 2050 Type: Forecast Sex: Male Age: 5-9 Population: 1,645","Year: 2050 Type: Forecast Sex: Male Age: 10-14 Population: 1,895","Year: 2050 Type: Forecast Sex: Male Age: 15-19 Population: 2,142","Year: 2050 Type: Forecast Sex: Male Age: 20-24 Population: 2,303","Year: 2050 Type: Forecast Sex: Male Age: 25-29 Population: 2,295","Year: 2050 Type: Forecast Sex: Male Age: 30-34 Population: 2,428","Year: 2050 Type: Forecast Sex: Male Age: 35-39 Population: 2,326","Year: 2050 Type: Forecast Sex: Male Age: 40-44 Population: 2,431","Year: 2050 Type: Forecast Sex: Male Age: 45-49 Population: 2,339","Year: 2050 Type: Forecast Sex: Male Age: 50-54 Population: 2,492","Year: 2050 Type: Forecast Sex: Male Age: 55-59 Population: 2,803","Year: 2050 Type: Forecast Sex: Male Age: 60-64 Population: 2,725","Year: 2050 Type: Forecast Sex: Male Age: 65-69 Population: 2,407","Year: 2050 Type: Forecast Sex: Male Age: 70-74 Population: 2,048","Year: 2050 Type: Forecast Sex: Male Age: 75-79 Population: 1,659","Year: 2050 Type: Forecast Sex: Male Age: 80-84 Population: 1,041","Year: 2050 Type: Forecast Sex: Male Age: 85+ Population: 747"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(165,223,249,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Male","legendgroup":"Male","showlegend":false,"xaxis":"x2","yaxis":"y2","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":62.492320464923225,"r":9.2984640929846432,"b":47.422166874221681,"l":69.73848069738483},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"title":{"text":" Age Composition","font":{"color":"rgba(0,0,0,1)","family":"","size":22.316313823163149},"x":0,"xref":"paper"},"xaxis":{"domain":[0,0.48616299986162997],"automargin":true,"type":"linear","autorange":false,"range":[-3.0867537389000499,3.1501875402308412],"tickmode":"array","ticktext":[3,2,1,0,1,2,3],"tickvals":[-3,-2,-1,0,1.0000000000000004,2.0000000000000004,3.0000000000000004],"categoryorder":"array","categoryarray":[3,2,1,0,1,2,3],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":true,"linecolor":"rgba(0,0,0,1)","linewidth":0.8453149175440583,"showgrid":false,"gridcolor":null,"gridwidth":0,"zeroline":false,"anchor":"y2","title":"","hoverformat":".2f"},"annotations":[{"text":"Population (in Thousands)","x":0.5,"y":0,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"center","yanchor":"top","annotationType":"axis","yshift":-27.895392278953928},{"text":"Age","x":0,"y":0.5,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"xref":"paper","yref":"paper","textangle":-90,"xanchor":"right","yanchor":"center","annotationType":"axis","xshift":-50.211706102117077},{"text":"1990","x":0.24308149993081499,"y":1,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(26,26,26,1)","family":"","size":14.87754254877543},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"center","yanchor":"bottom"},{"text":"2020","x":0.75691850006918493,"y":1,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(26,26,26,1)","family":"","size":14.87754254877543},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"center","yanchor":"bottom"},{"text":"2030","x":0.24308149993081499,"y":0.46402379964023799,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(26,26,26,1)","family":"","size":14.87754254877543},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"center","yanchor":"bottom"},{"text":"2050","x":0.75691850006918493,"y":0.46402379964023799,"showarrow":false,"ax":0,"ay":0,"font":{"color":"rgba(26,26,26,1)","family":"","size":14.87754254877543},"xref":"paper","yref":"paper","textangle":-0,"xanchor":"center","yanchor":"bottom"}],"yaxis":{"domain":[0.53597620035976201,1],"automargin":true,"type":"linear","autorange":false,"range":[0.40000000000000002,18.600000000000001],"tickmode":"array","ticktext":["5-9","15-19","25-29","35-39","45-49","55-59","65-69","75-79","85+"],"tickvals":[2,4,5.9999999999999991,8,10,12,14,16,18],"categoryorder":"array","categoryarray":["5-9","15-19","25-29","35-39","45-49","55-59","65-69","75-79","85+"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":true,"linecolor":"rgba(0,0,0,1)","linewidth":0.8453149175440583,"showgrid":false,"gridcolor":null,"gridwidth":0,"zeroline":false,"anchor":"x","title":"","hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":null,"line":{"color":null,"width":0,"linetype":[]},"yref":"paper","xref":"paper","x0":0,"x1":0.48616299986162997,"y0":0.53597620035976201,"y1":1},{"type":"rect","fillcolor":"rgba(255,255,255,1)","line":{"color":"rgba(0,0,0,1)","width":1.6906298350881166,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":0.48616299986162997,"y0":0,"y1":29.755085097550861,"yanchor":1,"ysizemode":"pixel"},{"type":"rect","fillcolor":null,"line":{"color":null,"width":0,"linetype":[]},"yref":"paper","xref":"paper","x0":0.51383700013836997,"x1":1,"y0":0.53597620035976201,"y1":1},{"type":"rect","fillcolor":"rgba(255,255,255,1)","line":{"color":"rgba(0,0,0,1)","width":1.6906298350881166,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0.51383700013836997,"x1":1,"y0":0,"y1":29.755085097550861,"yanchor":1,"ysizemode":"pixel"},{"type":"rect","fillcolor":null,"line":{"color":null,"width":0,"linetype":[]},"yref":"paper","xref":"paper","x0":0,"x1":0.48616299986162997,"y0":0,"y1":0.46402379964023799},{"type":"rect","fillcolor":"rgba(255,255,255,1)","line":{"color":"rgba(0,0,0,1)","width":1.6906298350881166,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":0.48616299986162997,"y0":0,"y1":29.755085097550861,"yanchor":0.46402379964023799,"ysizemode":"pixel"},{"type":"rect","fillcolor":null,"line":{"color":null,"width":0,"linetype":[]},"yref":"paper","xref":"paper","x0":0.51383700013836997,"x1":1,"y0":0,"y1":0.46402379964023799},{"type":"rect","fillcolor":"rgba(255,255,255,1)","line":{"color":"rgba(0,0,0,1)","width":1.6906298350881166,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0.51383700013836997,"x1":1,"y0":0,"y1":29.755085097550861,"yanchor":0.46402379964023799,"ysizemode":"pixel"}],"xaxis2":{"type":"linear","autorange":false,"range":[-3.0867537389000499,3.1501875402308412],"tickmode":"array","ticktext":[3,2,1,0,1,2,3],"tickvals":[-3,-2,-1,0,1.0000000000000004,2.0000000000000004,3.0000000000000004],"categoryorder":"array","categoryarray":[3,2,1,0,1,2,3],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":true,"linecolor":"rgba(0,0,0,1)","linewidth":0.8453149175440583,"showgrid":false,"domain":[0.51383700013836997,1],"gridcolor":null,"gridwidth":0,"zeroline":false,"anchor":"y2","title":"","hoverformat":".2f"},"yaxis2":{"type":"linear","autorange":false,"range":[0.40000000000000002,18.600000000000001],"tickmode":"array","ticktext":["5-9","15-19","25-29","35-39","45-49","55-59","65-69","75-79","85+"],"tickvals":[2,4,5.9999999999999991,8,10,12,14,16,18],"categoryorder":"array","categoryarray":["5-9","15-19","25-29","35-39","45-49","55-59","65-69","75-79","85+"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":true,"linecolor":"rgba(0,0,0,1)","linewidth":0.8453149175440583,"showgrid":false,"domain":[0,0.46402379964023799],"gridcolor":null,"gridwidth":0,"zeroline":false,"anchor":"x","title":"","hoverformat":".2f"},"showlegend":true,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":2.405153901216893,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.87754254877543},"title":{"text":"","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"source":"A","attrs":{"7d07271a6bb6":{"x":{},"y":{},"fill":{},"text":{},"type":"bar"}},"cur_data":"7d07271a6bb6","visdat":{"7d07271a6bb6":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>
]

---

# Klamath Race and Ethnicity

.pulll-right[
<div class="plotly html-widget html-fill-item" id="htmlwidget-0f608d6316a1eff831a0" style="width:504px;height:400px;"></div>
<script type="application/json" data-for="htmlwidget-0f608d6316a1eff831a0">{"x":{"data":[{"orientation":"v","width":[9,9,9,9,9,9,9],"base":[55.713999999999999,61.049000000000007,63.437000000000005,66.738041533225143,67.681483813258325,69.241857562185714,70.659971111595809],"x":[1990,2000,2010,2020,2030,2040,2050],"y":[2.2340000000000018,2.8359999999999985,2.8950000000000031,2.8919584667748524,2.7390548400763777,2.428291250391311,2.0671001073605879],"text":["Year: 1990 Type: Estimate Group: AIAN Population: 2,234","Year: 2000 Type: Estimate Group: AIAN Population: 2,836","Year: 2010 Type: Estimate Group: AIAN Population: 2,895","Year: 2020 Type: Estimate Group: AIAN Population: 2,892","Year: 2030 Type: Forecast Group: AIAN Population: 2,739","Year: 2040 Type: Forecast Group: AIAN Population: 2,428","Year: 2050 Type: Forecast Group: AIAN Population: 2,067"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(207,216,45,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"AIAN","legendgroup":"AIAN","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[9,9,9,9,9,9,9],"base":[55.271999999999998,60.405000000000008,62.639000000000003,65.580058163748902,66.116034910375475,67.206006737701244,68.028453611870589],"x":[1990,2000,2010,2020,2030,2040,2050],"y":[0.44200000000000017,0.64399999999999835,0.79800000000000182,1.1579833694762414,1.5654489028828493,2.03585082448447,2.63151749972522],"text":["Year: 1990 Type: Estimate Group: API Population: 442","Year: 2000 Type: Estimate Group: API Population: 644","Year: 2010 Type: Estimate Group: API Population: 798","Year: 2020 Type: Estimate Group: API Population: 1,158","Year: 2030 Type: Forecast Group: API Population: 1,565","Year: 2040 Type: Forecast Group: API Population: 2,036","Year: 2050 Type: Forecast Group: API Population: 2,632"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(165,223,249,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"API","legendgroup":"API","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[9,9,9,9,9,9,9],"base":[54.914000000000001,59.888000000000005,61.981000000000002,64.738070256064105,65.065520617717752,65.836738953020657,66.285631067802115],"x":[1990,2000,2010,2020,2030,2040,2050],"y":[0.35799999999999699,0.51700000000000301,0.65800000000000125,0.84198790768479626,1.0505142926577236,1.3692677846805879,1.7428225440684741],"text":["Year: 1990 Type: Estimate Group: Black Population: 358","Year: 2000 Type: Estimate Group: Black Population: 517","Year: 2010 Type: Estimate Group: Black Population: 658","Year: 2020 Type: Estimate Group: Black Population: 842","Year: 2030 Type: Forecast Group: Black Population: 1,051","Year: 2040 Type: Forecast Group: Black Population: 1,369","Year: 2050 Type: Forecast Group: Black Population: 1,743"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(109,141,36,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Black","legendgroup":"Black","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[9,9,9,9,9,9,9],"base":[51.914999999999999,54.889000000000003,55.018000000000001,55.773199006189763,52.803385685140803,49.717675968877131,45.753542240940511],"x":[1990,2000,2010,2020,2030,2040,2050],"y":[2.9990000000000023,4.9990000000000023,6.963000000000001,8.9648712498743421,12.262134932576949,16.119062984143525,20.532088826861603],"text":["Year: 1990 Type: Estimate Group: Hispanic Population: 2,999","Year: 2000 Type: Estimate Group: Hispanic Population: 4,999","Year: 2010 Type: Estimate Group: Hispanic Population: 6,963","Year: 2020 Type: Estimate Group: Hispanic Population: 8,965","Year: 2030 Type: Forecast Group: Hispanic Population: 12,262","Year: 2040 Type: Forecast Group: Hispanic Population: 16,119","Year: 2050 Type: Forecast Group: Hispanic Population: 20,532"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(232,211,162,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"Hispanic","legendgroup":"Hispanic","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"orientation":"v","width":[9,9,9,9,9,9,9],"base":[0,0,0,0,0,0,0],"x":[1990,2000,2010,2020,2030,2040,2050],"y":[51.914999999999999,54.889000000000003,55.018000000000001,55.773199006189763,52.803385685140803,49.717675968877131,45.753542240940511],"text":["Year: 1990 Type: Estimate Group: White Population: 51,915","Year: 2000 Type: Estimate Group: White Population: 54,889","Year: 2010 Type: Estimate Group: White Population: 55,018","Year: 2020 Type: Estimate Group: White Population: 55,773","Year: 2030 Type: Forecast Group: White Population: 52,803","Year: 2040 Type: Forecast Group: White Population: 49,718","Year: 2050 Type: Forecast Group: White Population: 45,754"],"type":"bar","textposition":"none","marker":{"autocolorscale":false,"color":"rgba(33,57,33,1)","line":{"width":1.8897637795275593,"color":"transparent"}},"name":"White","legendgroup":"White","showlegend":true,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null},{"x":[2025,2025],"y":[-3.6363535609478199,76.363424779904221],"text":"","type":"scatter","mode":"lines","line":{"width":1.8897637795275593,"color":"rgba(0,0,0,1)","dash":"dot"},"hoveron":"points","showlegend":false,"xaxis":"x","yaxis":"y","hoverinfo":"text","frame":null}],"layout":{"margin":{"t":47.614777916147794,"r":9.2984640929846432,"b":47.422166874221681,"l":47.422166874221681},"plot_bgcolor":"rgba(255,255,255,1)","paper_bgcolor":"rgba(255,255,255,1)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286},"title":{"text":"Klamath Race & Ethnicity Projections","font":{"color":"rgba(0,0,0,1)","family":"","size":22.316313823163149},"x":0,"xref":"paper"},"xaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[1982.05,2057.9499999999998],"tickmode":"array","ticktext":["2000","2020","2040"],"tickvals":[2000,2020,2040],"categoryorder":"array","categoryarray":["2000","2020","2040"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"y","title":{"text":"Year","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"yaxis":{"domain":[0,1],"automargin":true,"type":"linear","autorange":false,"range":[-3.6363535609478199,76.363424779904221],"tickmode":"array","ticktext":["0","20","40","60"],"tickvals":[0,20,40,60],"categoryorder":"array","categoryarray":["0","20","40","60"],"nticks":null,"ticks":"outside","tickcolor":"rgba(51,51,51,1)","ticklen":4.6492320464923216,"tickwidth":0.8453149175440583,"showticklabels":true,"tickfont":{"color":"rgba(77,77,77,1)","family":"","size":14.87754254877543},"tickangle":-0,"showline":false,"linecolor":null,"linewidth":0,"showgrid":true,"gridcolor":"rgba(235,235,235,1)","gridwidth":0.8453149175440583,"zeroline":false,"anchor":"x","title":{"text":"Population (in Thousands)","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}},"hoverformat":".2f"},"shapes":[{"type":"rect","fillcolor":"transparent","line":{"color":"rgba(51,51,51,1)","width":0.8453149175440583,"linetype":"solid"},"yref":"paper","xref":"paper","x0":0,"x1":1,"y0":0,"y1":1}],"showlegend":true,"legend":{"bgcolor":"rgba(255,255,255,1)","bordercolor":"transparent","borderwidth":2.405153901216893,"font":{"color":"rgba(0,0,0,1)","family":"","size":14.87754254877543},"title":{"text":"","font":{"color":"rgba(0,0,0,1)","family":"","size":18.596928185969286}}},"hovermode":"closest","barmode":"relative"},"config":{"doubleClick":"reset","modeBarButtonsToAdd":["hoverclosest","hovercompare"],"showSendToCloud":false},"source":"A","attrs":{"7d0733101d3":{"x":{},"y":{},"fill":{},"text":{},"type":"bar"},"7d0766ec548":{"xintercept":{}}},"cur_data":"7d0733101d3","visdat":{"7d0733101d3":["function (y) ","x"],"7d0766ec548":["function (y) ","x"]},"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.20000000000000001,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>
]

---

# Klamath UGB Population Changes

---

# Klamath UGBs: Bonanza in Context

.pux-right[
<img src="Klamath_files/figure-html/unnamed-chunk-16-1.png" width="800px" height="400px" />
]

.pux-left[
<table>
 <thead>
 <tr>
 <th style="text-align:left;"> Metric </th>
 <th style="text-align:left;"> 1980 </th>
 <th style="text-align:left;"> 2000 </th>
 <th style="text-align:left;"> 2020 </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Pop 65+ </td>
 <td style="text-align:left;"> 12.59% </td>
 <td style="text-align:left;"> 11.81% </td>
 <td style="text-align:left;"> 46.53% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Units </td>
 <td style="text-align:left;"> 126 </td>
 <td style="text-align:left;"> 152 </td>
 <td style="text-align:left;"> 175 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Occupancy </td>
 <td style="text-align:left;"> 79.37% </td>
 <td style="text-align:left;"> 91.45% </td>
 <td style="text-align:left;"> 83.43% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Persons Per Household </td>
 <td style="text-align:left;"> 2.70 </td>
 <td style="text-align:left;"> 2.99 </td>
 <td style="text-align:left;"> 2.77 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Household Income </td>
 <td style="text-align:left;"> $12,143 </td>
 <td style="text-align:left;"> $31,944 </td>
 <td style="text-align:left;"> $90,313 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Employment Rate </td>
 <td style="text-align:left;"> 95.10% </td>
 <td style="text-align:left;"> 92.71% </td>
 <td style="text-align:left;"> 96.73% </td>
 </tr>
</tbody>
</table>
]

---

# Klamath County: Bonanza UGB Boundaries

<div class="leaflet html-widget html-fill-item" id="htmlwidget-7ad6e1fbbec713b29f10" style="width:504px;height:450px;"></div>
<script type="application/json" data-for="htmlwidget-7ad6e1fbbec713b29f10">{"x":{"options":{"crs":{"crsClass":"L.CRS.EPSG3857","code":null,"proj4def":null,"projectedBounds":null,"options":{}}},"calls":[{"method":"addProviderTiles","args":["CartoDB.Positron",null,null,{"errorTileUrl":"","noWrap":false,"detectRetina":false}]},{"method":"addPolygons","args":[[[[{"lng":[-121.4038526981165,-121.4038193842344,-121.4010246534021,-121.4008880517409,-121.4006234437147,-121.3990232104918,-121.3940856077155,-121.3940833670676,-121.3941280130711,-121.3950428283485,-121.3951298435528,-121.3952840447882,-121.3959084495884,-121.3963084608297,-121.3965478182,-121.3967799983866,-121.3978736884267,-121.3982160397275,-121.3984594923276,-121.3986582527724,-121.3989160885343,-121.3991256596487,-121.3992099397204,-121.3994631923632,-121.4010840559709,-121.4012362304876,-121.4012794301624,-121.4013712083674,-121.4013873266408,-121.4016047937819,-121.4017307690619,-121.4018083421618,-121.4019695085452,-121.4128843670105,-121.4128929584652,-121.4141113912115,-121.4141105825471,-121.4154416291966,-121.415481856184,-121.4183730899909,-121.4184161522463,-121.4100454131325,-121.4098221716185,-121.4096520342395,-121.4089590267733,-121.408938691343,-121.4097350328452,-121.4100898422583,-121.4107247577204,-121.4112914431104,-121.4115689967469,-121.4122473617208,-121.4126034019275,-121.4129738599503,-121.413317172219,-121.4134869953477,-121.4136061624469,-121.4136995942084,-121.4138430208426,-121.4138828559391,-121.4087604898566,-121.4088531843554,-121.408237140541,-121.4038526981165],"lat":[42.20608857798906,42.20235748143674,42.2023571335653,42.2023711591491,42.20235032874396,42.20231998308363,42.20237456373825,42.20171706014769,42.20165746965364,42.20118299769139,42.20106383527381,42.20102535506086,42.20061415111816,42.20042137336275,42.20029251157313,42.20014001578915,42.19976052642232,42.19967143738609,42.19951207767005,42.19940892533231,42.19914452791269,42.19884837144244,42.1986987667656,42.19843271258451,42.19617929402195,42.19608167319154,42.19601635435351,42.19592493755228,42.1958585060022,42.19565800600473,42.19537296711395,42.19525241422603,42.19507217003519,42.19506050593819,42.19786046204872,42.19785418829303,42.19745826976943,42.19745104977877,42.19876792925751,42.19882057202384,42.20251218281978,42.20247096728595,42.20267551720001,42.20272354210095,42.20272413342276,42.20351053315105,42.20401713569279,42.20417243577016,42.2046127844045,42.20485468099891,42.20495318922285,42.20537033383427,42.20557889986517,42.2055764469544,42.20556660442063,42.20559656659695,42.20563562699274,42.20569302122789,42.20579294043911,42.20621013236526,42.20609389693419,42.20960218240575,42.20959892311551,42.20608857798906]}]],[[{"lng":[-121.4086686643478,-121.4086699916707,-121.4074526921833,-121.4074466801981,-121.4051693030839,-121.401660201104,-121.3990023579009,-121.3989565822955,-121.3985982346866,-121.3984499164511,-121.3976798337269,-121.3973102243701,-121.3970293105934,-121.3963606985649,-121.39615152277,-121.3941506337504,-121.394162657793,-121.3941624468806,-121.394156928161,-121.3941719117756,-121.3989928521961,-121.3989932508042,-121.3994355229509,-121.3997985414291,-121.3998686991314,-121.4006430561068,-121.4007804380867,-121.4009052860827,-121.4010383337414,-121.4017798878643,-121.4027312483846,-121.4038347154177,-121.4038347606086,-121.4038405298118,-121.4038402183959,-121.4038309160158,-121.403891371568,-121.4039146283705,-121.4079574911631,-121.4082525624206,-121.4088686317393,-121.4087876929553,-121.4087854045518,-121.4138964772455,-121.4138751929969,-121.4138643220337,-121.4137018154078,-121.4141686138912,-121.418037312375,-121.4184207591383,-121.4183709564112,-121.4184024437837,-121.4183857393059,-121.4142458761179,-121.4141900750923,-121.4090637985011,-121.4089425001242,-121.4086686643478],"lat":[42.19506291219329,42.19496734318745,42.19496177367825,42.19505529592278,42.19505884712981,42.19503150626785,42.19505805385131,42.19505491218267,42.19504210589626,42.19504503367055,42.19505316312762,42.19506816150882,42.19508333264383,42.19510101319818,42.1950974652706,42.19509003098086,42.19649604064725,42.19788575909638,42.2011318438732,42.20237440455524,42.20237798226955,42.20232795400815,42.20233428630479,42.20233948162724,42.2023393238978,42.20235607789891,42.20236884566818,42.20237627878898,42.20236256747971,42.20236245917972,42.20236294380776,42.20236189182061,42.20284179177913,42.20413533166827,42.20419425105454,42.20595319685429,42.20631954728916,42.20959150982745,42.20960391874569,42.20960481959347,42.20960669534469,42.20619703124396,42.20610064824955,42.20621540572017,42.20580856477134,42.20560080788104,42.20249444454254,42.20249685380623,42.2025167483803,42.20243568848732,42.1990639718842,42.19881728262111,42.1953269010528,42.19525799681274,42.19525706660157,42.19507780655928,42.19507878541311,42.19506291219329]}]]],null,null,{"interactive":true,"className":"","stroke":true,"color":["#a5dff9","#cfd82d"],"weight":5,"opacity":0.5,"fill":true,"fillColor":["#a5dff9","#cfd82d"],"fillOpacity":0.2,"smoothFactor":1,"noClip":false},null,null,null,{"interactive":false,"permanent":false,"direction":"auto","opacity":1,"offset":[0,0],"textsize":"10px","textOnly":false,"className":"","sticky":true},null]},{"method":"addLegend","args":[{"colors":["#cfd82d","#a5dff9"],"labels":["Bonanza City","UGB"],"na_color":null,"na_label":"NA","opacity":1,"position":"topright","type":"unknown","title":null,"extra":null,"layerId":null,"className":"info legend","group":null}]}],"limits":{"lat":[42.19496177367825,42.20960669534469],"lng":[-121.4184207591383,-121.3940833670676]}},"evals":[],"jsHooks":[]}</script>

---

# Bonanza UGB Pop Forecast

---

# Bonanza UGB Pop Forecast

---

# Klamath UGBs: Chiloquin in Context

.pux-right[
<img src="Klamath_files/figure-html/unnamed-chunk-21-1.png" width="800px" height="400px" />
]

.pux-left[
<table>
 <thead>
 <tr>
 <th style="text-align:left;"> Metric </th>
 <th style="text-align:left;"> 1980 </th>
 <th style="text-align:left;"> 2000 </th>
 <th style="text-align:left;"> 2020 </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Pop 65+ </td>
 <td style="text-align:left;"> 9.25% </td>
 <td style="text-align:left;"> 11.73% </td>
 <td style="text-align:left;"> 16.04% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Units </td>
 <td style="text-align:left;"> 288 </td>
 <td style="text-align:left;"> 290 </td>
 <td style="text-align:left;"> 358 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Occupancy </td>
 <td style="text-align:left;"> 87.15% </td>
 <td style="text-align:left;"> 88.62% </td>
 <td style="text-align:left;"> 84.08% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Persons Per Household </td>
 <td style="text-align:left;"> 3.10 </td>
 <td style="text-align:left;"> 2.79 </td>
 <td style="text-align:left;"> 2.55 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Household Income </td>
 <td style="text-align:left;"> $11,118 </td>
 <td style="text-align:left;"> $20,688 </td>
 <td style="text-align:left;"> $40,781 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Employment Rate </td>
 <td style="text-align:left;"> 71.31% </td>
 <td style="text-align:left;"> 67.14% </td>
 <td style="text-align:left;"> 74.78% </td>
 </tr>
</tbody>
</table>
]

---

# Klamath County: Chiloquin UGB Boundaries

<div class="leaflet html-widget html-fill-item" id="htmlwidget-b3f80f52dda0e64fbf0b" style="width:504px;height:450px;"></div>
<script type="application/json" data-for="htmlwidget-b3f80f52dda0e64fbf0b">{"x":{"options":{"crs":{"crsClass":"L.CRS.EPSG3857","code":null,"proj4def":null,"projectedBounds":null,"options":{}}},"calls":[{"method":"addProviderTiles","args":["CartoDB.Positron",null,null,{"errorTileUrl":"","noWrap":false,"detectRetina":false}]},{"method":"addPolygons","args":[[[[{"lng":[-121.8735678411861,-121.872963859928,-121.871979442271,-121.8719795843356,-121.8719808345671,-121.8719811164675,-121.8719818073742,-121.8719818083516,-121.8713516162936,-121.8708952641637,-121.869540835774,-121.869540833194,-121.8695408327031,-121.8695408313409,-121.8695303018497,-121.8695303004028,-121.868978529022,-121.8670815030599,-121.8670808050323,-121.8665121654085,-121.8665115124778,-121.8663977809738,-121.8648892649067,-121.8648274437047,-121.8648272816848,-121.8646254530913,-121.8641178401162,-121.8636738455411,-121.8635722920649,-121.8633602048262,-121.8632317568866,-121.8631747909433,-121.8628708508293,-121.8625359730356,-121.8624882785536,-121.8620780222198,-121.8619408366618,-121.8617708093035,-121.8615672036404,-121.8615669776496,-121.8614891100294,-121.8613865663525,-121.8572192908878,-121.8572908021616,-121.8572651707048,-121.8572651701498,-121.8572651674985,-121.8572651685436,-121.8572651692064,-121.8572653622646,-121.8572653682409,-121.8572653689036,-121.8572658164176,-121.8572658162451,-121.8572658169383,-121.8572658178034,-121.857265817601,-121.8572673468832,-121.8572673479284,-121.8572673485911,-121.8572673493626,-121.8572673504078,-121.8572673507282,-121.8572673513909,-121.8572675311259,-121.8572675309534,-121.8572675316161,-121.857267566731,-121.8572675677762,-121.8572675684389,-121.8572678836576,-121.8572678834852,-121.8572678841478,-121.8572679157956,-121.857267915623,-121.8572679162857,-121.8572687259121,-121.8572687269774,-121.8572687276199,-121.8572692978237,-121.8572692976512,-121.8572692995315,-121.8572710090715,-121.857271008919,-121.8572710095616,-121.8572727040876,-121.8572727039152,-121.859709725401,-121.8597097284869,-121.8597112881572,-121.8597132449288,-121.8597132471802,-121.8597132514836,-121.859713262125,-121.8597132654125,-121.8597132686798,-121.8597150118266,-121.8597150140781,-121.8597150183815,-121.8597150332532,-121.8597150365205,-121.8597150398081,-121.8597238436805,-121.8597238459319,-121.8597238502352,-121.8597256093129,-121.8597256115642,-121.8597256158675,-121.859729141731,-121.8597291451999,-121.8597291482855,-121.8597298304849,-121.8597298339537,-121.8597298370394,-121.8597330095064,-121.8597330129954,-121.859733016061,-121.8597332198012,-121.85973322327,-121.8597332263557,-121.8597417529758,-121.8597417564445,-121.8597417595301,-121.859742030203,-121.8597420322728,-121.8597420367574,-121.8597426259919,-121.8597426282431,-121.8597426325462,-121.8597434990262,-121.8597435012774,-121.8597435055805,-121.8597438809921,-121.8597438842592,-121.8597438875262,-121.8597448248221,-121.8597448282908,-121.8597448313764,-121.8597469886682,-121.8597469921369,-121.8597469952225,-121.8597474300395,-121.8597474333268,-121.8597474378113,-121.8597475131974,-121.8597475166661,-121.8597475197517,-121.8597479635727,-121.8597479656424,-121.859747970127,-121.8597510040207,-121.8597510062718,-121.8597510105748,-121.8597515113853,-121.8597515146725,-121.8597515179394,-121.8597527488117,-121.8597527510628,-121.8597527553658,-121.8597532852894,-121.8597532885766,-121.8597532918436,-121.8597562383499,-121.8597562418185,-121.859756244904,-121.8597564294741,-121.8597564329427,-121.8597564360281,-121.8597564969759,-121.8597565004446,-121.8597565047476,-121.8597565101345,-121.8597565122041,-121.8597565166885,-121.8597567567992,-121.8597567602678,-121.8597567633532,-121.859756803459,-121.8597568055286,-121.8597568100131,-121.8597570489061,-121.8597570521931,-121.8597570554601,-121.8597572174914,-121.8597600396062,-121.8597600428933,-121.8597600461602,-121.8597601951453,-121.8597601986139,-121.8597602016994,-121.8597605783727,-121.8597605804423,-121.8597605849268,-121.8597610559647,-121.8597610580141,-121.8597610625187,-121.859761681618,-121.8597616836875,-121.8597616881719,-121.8597619155243,-121.8597619189929,-121.8597619220782,-121.8597622191647,-121.8597622224517,-121.8597622257187,-121.859763322405,-121.8597633256921,-121.859763328959,-121.8597636346779,-121.8597636381464,-121.8597636412319,-121.859763861167,-121.859763864454,-121.859763867721,-121.8597648607599,-121.859764864047,-121.8597648685313,-121.8597653550413,-121.8597653572923,-121.8597653615952,-121.8597653995398,-121.8597654028269,-121.8597654060938,-121.8597681028782,-121.8597681061652,-121.859768109432,-121.8597686416737,-121.8597686449405,-121.8597686482275,-121.8597687933097,-121.8597687967782,-121.859768801081,-121.8597689247472,-121.8597689280343,-121.8597689313011,-121.8597694635416,-121.8597694668286,-121.8597694700954,-121.8597696528719,-121.8597696563405,-121.8597696594258,-121.8597731073851,-121.8597731106721,-121.8597731139389,-121.8597736461332,-121.8597736482027,-121.859773652687,-121.8597739518715,-121.8597739541225,-121.8597739584253,-121.8597763988255,-121.8597764008949,-121.8597764053792,-121.8597769363514,-121.8597769396383,-121.8597769441226,-121.8597773900622,-121.8597773935306,-121.8597773966159,-121.8597787529862,-121.8597787550355,-121.8597787595399,-121.8597792905088,-121.8597792937756,-121.85977929828,-121.8597797987333,-121.8597798022016,-121.8605369214034,-121.8608870013173,-121.8610026432383,-121.8611825275816,-121.8612572150386,-121.8616274299739,-121.8621489024275,-121.8621395319279,-121.8621395281007,-121.8621863157074,-121.8622414581399,-121.8622665541777,-121.862266556417,-121.8622665607073,-121.8622804689021,-121.862495881185,-121.8626193738331,-121.8626939026623,-121.8628436233995,-121.8629912559168,-121.8630414811634,-121.8630963899055,-121.8631428673397,-121.8632032634169,-121.8632964025543,-121.863396371151,-121.863537839013,-121.8636186736992,-121.8637341423211,-121.8638912452255,-121.8640015815156,-121.8642215980327,-121.8644486800027,-121.8646860404709,-121.8648794062749,-121.8650832852863,-121.8653062758277,-121.8655173707061,-121.8657136464099,-121.8659182628412,-121.8661180244657,-121.8663171960197,-121.866593806103,-121.8668256475688,-121.8669980166681,-121.8670904279154,-121.8670866334517,-121.8670866060522,-121.8670866195611,-121.8670702896622,-121.8670702841775,-121.8670702799306,-121.8670649343426,-121.8670649288578,-121.8670649246109,-121.8670434082811,-121.8670434040137,-121.867043398549,-121.8670431830685,-121.867043178801,-121.8654467975233,-121.8654467928633,-121.8654464556616,-121.8654436959273,-121.865443691652,-121.8654436882096,-121.8654426796226,-121.8654426753474,-121.8654426719049,-121.8654416632954,-121.86544165902,-121.8654416555776,-121.8654396318717,-121.8654396263788,-121.8654396229363,-121.8654365816645,-121.8654365773891,-121.8654365739466,-121.8654347532307,-121.8654347489553,-121.8654347455127,-121.8654343950078,-121.8654343907324,-121.8654343872899,-121.8654308502749,-121.8654308447819,-121.8654308425569,-121.8654287081768,-121.8654280113059,-121.8654280058129,-121.8654280023703,-121.8654277868972,-121.8654277824395,-121.8654277791791,-121.8654249945691,-121.8654249902936,-121.865424986851,-121.8654203918141,-121.8659351935476,-121.8660635987799,-121.86606460723,-121.8670937971006,-121.8677699524665,-121.8677704761934,-121.8688075613025,-121.8689156331868,-121.8698236309485,-121.8698246467245,-121.8730398685535,-121.8730472236273,-121.8730390272875,-121.8730389070855,-121.8760948444208,-121.8767137189134,-121.8767541882264,-121.8767542844363,-121.8767781228971,-121.8770388263641,-121.8772046504661,-121.8784266141915,-121.8807381499233,-121.8816257309941,-121.8816140710383,-121.8816198189054,-121.8816984434277,-121.8816984830861,-121.8817013091769,-121.8818385192565,-121.8811227053064,-121.8807151704289,-121.8802237684797,-121.87978529102,-121.8786606778846,-121.8784877832423,-121.8782963611066,-121.87773192157,-121.8773822107349,-121.8768803963361,-121.8768955218791,-121.876614176589,-121.876558998905,-121.8763523137959,-121.8752989382278,-121.875210376668,-121.8735678411861],"lat":[42.58458014899944,42.58457956102354,42.58360696239723,42.58349264191403,42.58305560555409,42.58295684110017,42.58271543157301,42.58271515160632,42.58271370406604,42.58271265356787,42.58270952653682,42.58270941224644,42.58270922861672,42.58270911431127,42.58090579598923,42.58090551605272,42.58090347554289,42.58089644074284,42.58089643763061,42.58089436291202,42.5808943610418,42.58089393805077,42.58088840207564,42.58088817503219,42.5808881743222,42.58088743206491,42.58088587366625,42.58088396770162,42.5810159293751,42.5812198265609,42.58134331518682,42.58139807775198,42.58158781252638,42.58179686016705,42.58182663506308,42.58215748468115,42.58227785900546,42.58242705242215,42.58269601925021,42.58269631637673,42.58279918027205,42.5828901905636,42.58299738178676,42.57755399146451,42.5775415348138,42.57754123776407,42.57754030251838,42.57754002255233,42.5775397254877,42.57744337958821,42.57744310226236,42.57744280519774,42.57721648675926,42.57721620680807,42.57721596555371,42.57721589532975,42.57721566848906,42.57642391505693,42.57642363509095,42.57642333802641,42.5764226646891,42.57642238472307,42.57642207235978,42.57642177529524,42.57632891775646,42.57632863780532,42.57632834074082,42.57631520951709,42.57631492955113,42.57631463248659,42.57615056977109,42.57615028982,42.57614999275549,42.57613382079741,42.57613354084637,42.57613324378182,42.57571152902663,42.57571124996073,42.57571095199629,42.57541421902922,42.57541393907824,42.5754136419989,42.57451326955675,42.57451299050577,42.57451269254151,42.57361235925535,42.57361207930456,42.57361168596952,42.57361138887546,42.57349038324768,42.57333834658405,42.57333806660338,42.5733377694944,42.5733369943173,42.57333670622245,42.57333641722769,42.57320115336372,42.57320087338308,42.57320057627415,42.57319944637811,42.57319915738339,42.57319886928857,42.57251518378483,42.57251490380433,42.57251460669545,42.57237799061645,42.57237771063595,42.572377413527,42.57210360248325,42.57210332248783,42.5721030253939,42.57205009693589,42.57204981694049,42.57204951984664,42.57180314764297,42.57180286854749,42.57180257055362,42.57178682498411,42.57178654498875,42.57178624789476,42.57111580669558,42.57111552670017,42.57111522960639,42.57109404709469,42.57109375901499,42.57109347000551,42.57104720936127,42.57104692938087,42.57104663227211,42.57097861292844,42.57097833294809,42.57097803583931,42.57094853807734,42.5709482490828,42.57094796008828,42.57087445964576,42.57087417965045,42.57087388255665,42.5707042254426,42.57070394544731,42.57070364835347,42.57066957340363,42.57066928530906,42.57066899629963,42.57066306685846,42.57066278686317,42.57066248976942,42.57062772968055,42.57062744160091,42.57062715259143,42.57038867938599,42.57038839940572,42.57038810229702,42.5703487659509,42.57034847785641,42.57034818886192,42.57025148566651,42.57025120568624,42.57025090857753,42.57020928454566,42.57020899645116,42.57020870745664,42.56997709734605,42.56997681735086,42.56997652025717,42.56996209368003,42.5699618136848,42.56996151659109,42.56995651900356,42.56995623900832,42.56995594189966,42.56995558446643,42.56995529638679,42.56995500737744,42.56993593974624,42.56993565975101,42.56993536265734,42.56993226108205,42.56993197300252,42.56993168399311,42.56991261637696,42.56991232828244,42.56991203928808,42.56989916127881,42.56967401233059,42.56967372423605,42.56967343524169,42.56966155118028,42.56966127118503,42.5696609740914,42.56963104424513,42.56963075616558,42.56963046715629,42.5695929549277,42.56959266594813,42.56959237783872,42.56954304907364,42.56954276099405,42.56954247198481,42.56952435689161,42.56952407689646,42.56952377980278,42.56950008100504,42.56949979291057,42.56949950391616,42.56941208583734,42.56941179774283,42.56941150874848,42.5693871626241,42.56938688262896,42.56938658553521,42.5693691177556,42.56936882966117,42.56936854066679,42.56928932350355,42.5692890354091,42.5692887463998,42.56924996834777,42.56924968836748,42.56924939125896,42.56924635632345,42.56924606822903,42.56924577923469,42.56903069216055,42.56903040406611,42.5690301150718,42.56898772588406,42.56898743688966,42.56898714879524,42.56897557984349,42.5689752998484,42.5689750027399,42.56896508676119,42.56896479866683,42.56896450967243,42.56892212048562,42.56892183239117,42.56892154339682,42.56890698272137,42.56890670272615,42.56890640563257,42.56863136441745,42.56863107632311,42.5686307873288,42.56858839634676,42.5685881082673,42.56858781925802,42.56856399711852,42.56856371713841,42.56856342002986,42.56836879608602,42.56836850800656,42.56836821899739,42.56832582803391,42.56832553993954,42.56832525093036,42.56828960867605,42.568289328681,42.56828903158739,42.56818103069825,42.56818074171887,42.5681804536096,42.56813806264871,42.56813777365445,42.56813748554516,42.56809753711711,42.5680972571221,42.56809773666767,42.5680974669584,42.56809737679129,42.56809723733029,42.56809717982497,42.56809689144275,42.56809588287159,42.56741004082916,42.5674097618236,42.56735554600597,42.56632488087427,42.56448782204107,42.5644875420612,42.56448724495293,42.56342981232064,42.56364782259556,42.56385842942947,42.56403662957596,42.56425814128502,42.56455102040921,42.56483438199871,42.56514211939606,42.56541429019762,42.56564478787953,42.56582559217726,42.56597878990693,42.56614252494827,42.56627100832728,42.56645426927469,42.56667295810951,42.56679284240817,42.56698305543149,42.5671460078273,42.56729202101833,42.56745237488722,42.5675738613151,42.56773110844568,42.56786373142673,42.56798837800646,42.56814311878665,42.56825640487356,42.56833403942706,42.56838886109492,42.56843316543407,42.5684642180431,42.56859379887365,42.56884971725952,42.56885001465307,42.56885028993903,42.5699507417476,42.56995103887149,42.56995133688034,42.57031534359997,42.57031564072391,42.57031593873281,42.57178269772957,42.57178299483867,42.57178329286268,42.57179805472601,42.57179835183506,42.57179932573805,42.5717996057486,42.57182185672431,42.57201068895834,42.57201098606737,42.57201126606297,42.57208058894694,42.57208088605603,42.57208116605157,42.57215048803722,42.57215078514628,42.57215106514193,42.57229028710753,42.57229058423165,42.57229086422722,42.57249998531248,42.57250028242163,42.57250056241722,42.57262580404139,42.57262610115049,42.57262638114614,42.57265042273225,42.57265071984136,42.57265099983704,42.5728942174349,42.57289451455903,42.57289479453977,42.57304154873411,42.57308943742499,42.57308973454915,42.57309001454482,42.57310479440978,42.57310508341968,42.57310537151462,42.57329683803422,42.5732971351434,42.57329741513913,42.57361333915828,42.57361388337666,42.57361394437408,42.57361394457404,42.57361455895489,42.5736160063054,42.57361600705767,42.57361625269137,42.57361636382435,42.57361729421979,42.57361729519545,42.57355858483971,42.5735896939202,42.5736201184687,42.5736205655402,42.57362381856798,42.57362448623389,42.57362453374034,42.57362453344808,42.57362452782965,42.57347292856627,42.57345680294785,42.57262268327094,42.57263073164587,42.57262644694504,42.57327207019043,42.57372508449667,42.57432527473861,42.57432557220322,42.57434714664775,42.57440938461345,42.57997367173721,42.58297780199634,42.58679787133766,42.58678375605624,42.58669840074538,42.5866957265584,42.58655252114129,42.58651127354037,42.58659498021053,42.58675038961339,42.58677638562531,42.58684781929735,42.5867508355108,42.58639506616161,42.58458181748475,42.58458173276104,42.58458014899944]}]],[[{"lng":[-121.863812190723,-121.8642786921243,-121.8649924365317,-121.8666180216808,-121.8671508658018,-121.8674500073177,-121.8696033854478,-121.8696274192971,-121.8720502168529,-121.8720501173623,-121.8720491265944,-121.8720486350886,-121.8720454249427,-121.872044206619,-121.8720430360353,-121.8720253087942,-121.8768572016503,-121.8768603579347,-121.8768671700757,-121.8768922061592,-121.8768936832151,-121.8769003267218,-121.8769021056048,-121.8803707850673,-121.8807351843995,-121.8809113083089,-121.8816201502246,-121.8816080227642,-121.8816724265651,-121.8816803572244,-121.8816901135486,-121.8807928092662,-121.880446561098,-121.8803771879463,-121.879012966943,-121.878617114033,-121.8771835411552,-121.8771444311859,-121.8770604815704,-121.8768033546172,-121.8768042997151,-121.876824583782,-121.876834205469,-121.876852894144,-121.8768536192541,-121.8768542167725,-121.8768543960666,-121.8720206480091,-121.8720202546262,-121.8720190308688,-121.8719987092567,-121.8719966729397,-121.8719932333592,-121.871988118283,-121.8720125561432,-121.8720098884827,-121.8719596520685,-121.8719614082922,-121.8719616465927,-121.8719628792694,-121.8719634556287,-121.8719647337185,-121.8719665121421,-121.8719632366757,-121.8719633423446,-121.8719635322055,-121.8719644947817,-121.8704626622852,-121.8703773963755,-121.8703594648176,-121.8703410034873,-121.8703230560804,-121.8703046495618,-121.8696948440793,-121.8689069958648,-121.8686948399145,-121.8678392216186,-121.8675249511625,-121.8671565365032,-121.8670700847536,-121.86703860169,-121.8669390231057,-121.8660743851805,-121.866049616709,-121.8660325455214,-121.8654702425116,-121.8654699869405,-121.8654690611586,-121.8654685303602,-121.8654679238465,-121.8654678635077,-121.8654679394543,-121.8654679451033,-121.8654679139611,-121.8654679061966,-121.8654676301531,-121.8654676126482,-121.865467433581,-121.8654674148586,-121.8654673395748,-121.8654673208525,-121.8654672412316,-121.8654672212916,-121.8654669622251,-121.8654665929085,-121.8654656193702,-121.8664846362305,-121.8670861715722,-121.8670992508471,-121.8671122524103,-121.8671132465845,-121.8671229403422,-121.8671227629308,-121.8671190972604,-121.8671190197271,-121.8671178394383,-121.8671177890359,-121.8671189083643,-121.8671189440991,-121.867119405971,-121.867119283392,-121.8671014951087,-121.867083737058,-121.8670660332917,-121.8670484395934,-121.8670305501765,-121.8670125473668,-121.8669945792388,-121.8669770647913,-121.8669601722621,-121.8669428089169,-121.8669252072003,-121.8669074655493,-121.8668891650743,-121.8668726091446,-121.8668557119047,-121.8668382822195,-121.8668212618324,-121.8668047059966,-121.8667889627993,-121.8667726394772,-121.8667557998865,-121.8667378983763,-121.8667207255522,-121.8667039083729,-121.8666876664793,-121.8666712840258,-121.8666547906387,-121.8666380721539,-121.8666209955342,-121.8666047537389,-121.8665881200855,-121.866571224016,-121.8665544725932,-121.8665378601347,-121.8665215025088,-121.8665055151366,-121.8664895075977,-121.8664734799732,-121.8664574310051,-121.8664413642648,-121.866425213539,-121.8664089812018,-121.866392564858,-121.8663771020242,-121.8663635702954,-121.866348832198,-121.8663330370934,-121.8663162165053,-121.8663000991081,-121.8662847919576,-121.8662706659047,-121.8662558204865,-121.8662349394394,-121.8662197863514,-121.8662040266072,-121.8661885957408,-121.8661736656857,-121.8661587678177,-121.8661439032732,-121.8661294084117,-121.8661141618778,-121.866098236333,-121.8660816005421,-121.8660657461691,-121.866051290714,-121.8660361678796,-121.8660202375038,-121.8660045620219,-121.865988972865,-121.8659771053294,-121.8659644804281,-121.8659511353948,-121.865936952128,-121.8659237160905,-121.8659116096809,-121.8658983066278,-121.8658839109411,-121.865868437548,-121.8658540180465,-121.8658411377701,-121.865827809495,-121.8658140468562,-121.8657998169798,-121.8657848311289,-121.8657705607375,-121.8657571032037,-121.8657442781301,-121.865732279727,-121.865719623733,-121.8657063434044,-121.8656915654124,-121.865678937453,-121.8656707834487,-121.8656545967212,-121.8656457498995,-121.8656333770651,-121.8656202775858,-121.865606494701,-121.8655914840536,-121.8655776535313,-121.8655660191746,-121.8655539655952,-121.865541506327,-121.8655278314351,-121.8655139855273,-121.8654999421683,-121.8654868630636,-121.8654741975506,-121.8654625115647,-121.8654499744054,-121.8654362788508,-121.8654227519462,-121.8654095903192,-121.8653957764143,-121.8653808374436,-121.8653675131896,-121.865356959085,-121.8653464085761,-121.8653363785094,-121.8653249739534,-121.8653122893794,-121.8652983703752,-121.8652835622409,-121.8652673980822,-121.8652545226378,-121.865237751151,-121.8652224982685,-121.8652100045673,-121.8651948761458,-121.8651805258889,-121.8651674865542,-121.8651535424493,-121.8651385639422,-121.8651238916469,-121.865109575968,-121.8650954203361,-121.8650815742418,-121.8650673111923,-121.8650520471784,-121.8650376935127,-121.8650244061926,-121.8650106449597,-121.8649957544143,-121.8649821439182,-121.864968309789,-121.8649540623771,-121.8649407523959,-121.8649290571972,-121.8649156779677,-121.864899977979,-121.8648848674028,-121.8648710668653,-121.864856425715,-121.8648410155159,-121.8648245777506,-121.8648099108805,-121.8647976738297,-121.8647850504683,-121.8647718206696,-121.8647588712475,-121.8647466630882,-121.8647334010784,-121.8647183646371,-121.8647047544871,-121.8646930507559,-121.8646804610311,-121.8646673070551,-121.8646525184217,-121.864636216692,-121.8646219903185,-121.864610626721,-121.8645993052125,-121.8645873107751,-121.8645744368767,-121.8645615246309,-121.8645485740378,-121.8645352333774,-121.8645256272689,-121.8645088125482,-121.8644984817678,-121.8644861323181,-121.8644717066012,-121.8644626823415,-121.8644529573605,-121.8644394015841,-121.8644279388474,-121.8644156790934,-121.8644035574085,-121.8643915762273,-121.8643797632278,-121.8643676211418,-121.864354826477,-121.8643425607821,-121.8643311864235,-121.8643196437701,-121.8643080651233,-121.8642942707967,-121.8642842191155,-121.864279232715,-121.8642725207712,-121.8642579547354,-121.8642464153739,-121.8642409015184,-121.8642339446373,-121.8642246394249,-121.8642165715424,-121.8642104230516,-121.8642030827595,-121.8641945873282,-121.8641834993649,-121.8641736938279,-121.8641664068135,-121.8641591584128,-121.8641460517864,-121.8641359636028,-121.8641306054163,-121.8641216325967,-121.8641080876425,-121.8640985930603,-121.864088871827,-121.8640777937835,-121.8640729384691,-121.8640647370247,-121.8640534229253,-121.8640428897485,-121.864033413312,-121.8640233016571,-121.8640122113483,-121.8640023540334,-121.8639878133314,-121.863979544979,-121.8639719037099,-121.863966070261,-121.8639580702893,-121.8639480323844,-121.8639354814794,-121.8639244658601,-121.8639157266328,-121.8639064142612,-121.8638962050763,-121.8638868613824,-121.8638713654367,-121.8638660425754,-121.8638614378234,-121.8638565929705,-121.8638515093358,-121.8638461881772,-121.8638406295353,-121.8638348359057,-121.863828806132,-121.8638225439068,-121.8638160492709,-121.863809321108,-121.863802364288,-121.8637951776543,-121.8637877636824,-121.8637801236908,-121.8637722577,-121.8637641669678,-121.8637558564047,-121.8637471003927,-121.8637393625329,-121.8637326755705,-121.8637270649656,-121.8637225488136,-121.8637195544737,-121.8637161691526,-121.8637123942093,-121.8637082285885,-121.8637036772208,-121.8636987390913,-121.8636934192114,-121.8636877201377,-121.8636816105002,-121.863675091739,-121.8636681700628,-121.8636608480482,-121.8636531295702,-121.8636448311163,-121.8636367078587,-121.8636287561247,-121.8636209808246,-121.8636133808014,-121.8636059814391,-121.8635986546202,-121.8635914051942,-121.8635842295288,-121.8635770780937,-121.8635701806232,-121.8635635433055,-121.8635571650038,-121.8635510481529,-121.8635451916363,-121.863539601642,-121.8635342757553,-121.8635292152745,-121.8635244275441,-121.8635190725875,-121.86351315921,-121.8635066889327,-121.8634994274758,-121.863492349817,-121.8634854584519,-121.8634787545976,-121.8634722383552,-121.8634659120989,-121.8634597601839,-121.8634537850652,-121.8634481817574,-121.8634423507488,-121.8634362920803,-121.8634300070299,-121.8634234968153,-121.8634167603202,-121.8634098036924,-121.8634026232799,-121.8633951539283,-121.8633886365042,-121.8633830926333,-121.863378539031,-121.863374989978,-121.8633730188384,-121.8633702541797,-121.8633667014787,-121.8633623685862,-121.8633572645705,-121.8633506346347,-121.8633448170006,-121.8633398184425,-121.8633356541752,-121.8633323309122,-121.8633298554475,-121.8633282332569,-121.8633274686388,-121.8633282701051,-121.8633283637664,-121.8633277512855,-121.8633264331076,-121.8633244109357,-121.8633216876299,-121.8633182672672,-121.8633141551627,-121.863309356631,-121.8633038781844,-121.8632976622566,-121.8632926613331,-121.8632889011769,-121.8632863965735,-121.8632851623894,-121.8632852037518,-121.8632865195999,-121.8632891029673,-121.8632929430539,-121.8632980511751,-121.8633017605099,-121.8633040546172,-121.8633049170767,-121.8633043424043,-121.863302336093,-121.863298192477,-121.8632950271238,-121.863292848166,-121.8632916650549,-121.8632914774619,-121.8632922862556,-121.8632943534973,-121.8632943413522,-121.8632922512683,-121.8632881090218,-121.8632819670704,-121.8632739009824,-121.8632640153007,-121.8632524326272,-121.8632392984715,-121.8632247740684,-121.8632117118335,-121.8632002938589,-121.8631906830207,-121.8631830109057,-121.8631773861114,-121.8631738858654,-121.8631725618294,-121.863173428047,-121.8631778024446,-121.8631799978348,-121.8631799796487,-121.8631777510773,-121.8631722339356,-121.8631670075985,-121.8631620781932,-121.8631574446438,-121.8631531069702,-121.8631490689255,-121.863144608131,-121.8631385503468,-121.8631324882232,-121.863126308641,-121.8631200104434,-121.8631135972422,-121.8631070666837,-121.8631004175099,-121.8630936558484,-121.8630867755921,-121.8630797792163,-121.8630726691557,-121.8630654442134,-121.863058103192,-121.8630506485468,-121.8630430802373,-121.863035397127,-121.8630276028481,-121.8630196937483,-121.8630115273674,-121.8630035530198,-121.8629957756761,-121.8629881916839,-121.8629808059734,-121.8629736173271,-121.8629666282605,-121.8629598388343,-121.8629532490078,-121.862946860079,-121.8629406769582,-121.8629346415738,-121.8629293474778,-121.8629248049549,-121.8629219409151,-121.8629178496491,-121.862912548338,-121.8629060626844,-121.86289842322,-121.8628896616332,-121.8628790593016,-121.8628691615897,-121.8628599885411,-121.8628515589625,-121.8628438892452,-121.8628369982359,-121.8628315321357,-121.8628254507764,-121.8628187618266,-121.8628114741315,-121.8628035941221,-121.8627951343766,-121.8627861036798,-121.8627765121753,-121.8627663747343,-121.8627557002025,-121.8627443183377,-121.8627331180594,-121.862722099388,-121.862711263581,-121.8627006167658,-121.8626901553307,-121.8626798854028,-121.8626698045878,-121.8626599165782,-121.8626502214346,-121.8626407215713,-121.8626314195041,-121.8626223333925,-121.8626128938437,-121.8626031046718,-121.8625929708878,-121.8625824986798,-121.8625716918415,-121.8625605553637,-121.8625490954345,-121.8625373170649,-121.8625251928006,-121.8625129148976,-121.8625004906397,-121.8624879176127,-121.8624751970944,-121.8624623315196,-121.8624493221461,-121.8624361726059,-121.8624228805651,-121.8624097359028,-121.8623958445688,-121.8623812535909,-121.8623660135083,-121.8623501748997,-121.8623337979419,-121.8623169355272,-121.862299646554,-121.8622821678272,-121.862283531511,-121.8622751521136,-121.8622124405849,-121.8621830031026,-121.8621952214685,-121.8619926391782,-121.8616159785289,-121.8612401842665,-121.8610503831345,-121.8608590635956,-121.8605074668397,-121.8597349661551,-121.859737060135,-121.8597386630512,-121.8597410614867,-121.8597460858804,-121.8597475946275,-121.8597490557353,-121.8597550320851,-121.8597576876124,-121.8597603896781,-121.859763144073,-121.85976913188,-121.8597696337707,-121.8597732217934,-121.8597740787134,-121.8597696175776,-121.8597695938967,-121.8597694886548,-121.8597694216455,-121.859769336002,-121.859763774804,-121.859763815126,-121.8597638510876,-121.859763364818,-121.859760882671,-121.8597596552083,-121.859758386203,-121.8597569411929,-121.8597557790399,-121.8597546561459,-121.8597535072656,-121.8597523537491,-121.8589675668879,-121.8572897915097,-121.8572882869192,-121.8572948985045,-121.857304492106,-121.8573077788955,-121.8573248728964,-121.8573251481614,-121.8573286105603,-121.8573326402459,-121.8573326616065,-121.8573330150496,-121.8573330866023,-121.8573273040316,-121.8573141028077,-121.8573028728702,-121.858244692512,-121.8618677607395,-121.8620837268996,-121.8620954104985,-121.8621070654327,-121.8621187796638,-121.8621305568454,-121.8621423945417,-121.8621542951883,-121.8621662551725,-121.8621782744535,-121.8621903554874,-121.8622024970764,-121.8622146967649,-121.8622269582061,-121.8622392777871,-121.8622516567054,-121.862264094941,-121.8622765925746,-121.8622891470898,-121.8623017609625,-121.862314432975,-121.8623271631678,-121.8623399502422,-121.8623527955171,-121.8623656964962,-121.8623786556353,-121.8623916704989,-121.8624047435427,-121.8624178711134,-121.8624310544289,-121.8624442946865,-121.8624575894913,-121.8624709412788,-121.8624843463754,-121.8624978072369,-121.8625113214279,-121.8625248913838,-121.8625385134917,-121.8625521901064,-121.8625659200909,-121.8625797046428,-121.8625935413468,-121.8626074289649,-121.8626213723682,-121.8626356861007,-121.8629878745254,-121.8630718507999,-121.8632446821507,-121.8633227351678,-121.8634667968858,-121.863812190723],"lat":[42.58069639553447,42.58064871122896,42.58064953480237,42.58065139319459,42.58065199682829,42.58065233511551,42.58065669213811,42.58250429191153,42.58251028986219,42.58248456137212,42.58222977531958,42.582103011476,42.58127669555292,42.58096283121616,42.58066158047502,42.57949348585693,42.57958923183713,42.57993790906849,42.58069092523935,42.58345729704836,42.58362054470489,42.58435455573856,42.58455111975668,42.58445458039922,42.58107976322573,42.57970167210323,42.57409004769472,42.57343366596967,42.57343375874039,42.5734062983805,42.57244000077889,42.57243943070775,42.57243921021357,42.57243916499981,42.57243683335354,42.5724374408455,42.57342510337524,42.57342505627528,42.57348064310766,42.57365089740407,42.5737549736946,42.57599184604984,42.57705281493158,42.57911355325204,42.57919354376049,42.57925948501279,42.57927919393394,42.5791863363163,42.5791603225281,42.57907970630406,42.57774050051908,42.57760628089665,42.57737957132171,42.57704256793572,42.57666202093089,42.57654167903249,42.57650147662924,42.5759158496225,42.57583589505812,42.57542490829768,42.57523235227445,42.57480603058158,42.57421266393597,42.57419847895674,42.57403670934276,42.57374744809312,42.57341808182503,42.57341513282007,42.57341512890447,42.57341512778805,42.57341512780351,42.57341512597652,42.57341512620994,42.57341509686393,42.57341505580695,42.57341519476061,42.57340877980823,42.5734065399733,42.57340391518705,42.57340425099136,42.57340437291579,42.57340476125204,42.57340990919749,42.57341095825411,42.57341092515414,42.57340983022472,42.57305556180813,42.57287749584583,42.57277548683069,42.57265863942275,42.57243790372051,42.5724099965727,42.57239709614669,42.57228757807681,42.57227467691605,42.57207796496493,42.57206506392487,42.5719382562953,42.57192535527077,42.57187086522895,42.5718579642047,42.57180160366151,42.57178870265253,42.57163528425711,42.57162239024439,42.57160624233949,42.57161188757368,42.57161514170038,42.57100129067586,42.57040189477458,42.57035607282967,42.5697807388271,42.56976783706043,42.56938631414739,42.56937341295337,42.56891652421278,42.56890147577974,42.5684559540634,42.56844305327947,42.56828717046645,42.56827426983158,42.56827007345023,42.56826608373319,42.56826196282043,42.56825759210308,42.5682539334569,42.56825059306351,42.56824717032492,42.56824264109113,42.56823695918354,42.56823210942443,42.56822776039059,42.56822374073821,42.56822156610851,42.56821536424759,42.56820968868355,42.56820497475034,42.56819950863598,42.56819331036472,42.56818604619075,42.56817951919175,42.56817375288631,42.56817015015303,42.56816494424831,42.56815914525325,42.56815250201826,42.56814605224682,42.56813975956749,42.56813380001811,42.56812843088382,42.56812179123645,42.56811570461204,42.56811002449031,42.56810411574336,42.56809799644468,42.56809151213968,42.56808454258599,42.56807759668263,42.56807067802914,42.56806378484081,42.568056913473,42.56805015205676,42.56804349786236,42.56803710877913,42.56802952783984,42.5680201462054,42.56801181370592,42.56800461942071,42.56799882761152,42.56799203066098,42.56798427766184,42.56797538041786,42.56796714824539,42.56795723318388,42.5679496691171,42.56794242126904,42.56793479760312,42.56792664567612,42.56791846274545,42.56791024519654,42.56790167923351,42.56789385795334,42.56788681736892,42.56788073879836,42.56787361361818,42.56786501205394,42.5678570587173,42.56785001908156,42.567842671151,42.56783526274538,42.56782471558148,42.56781466022222,42.56780512771537,42.56779628154371,42.56778666757813,42.56777627367385,42.56776671183923,42.5677580582094,42.56775048903376,42.56774185909751,42.56773198059835,42.56772243346862,42.56771322834246,42.56770441963423,42.56769632685413,42.56768755734787,42.56767810991805,42.56766819382244,42.5676577265579,42.56764769315871,42.56763811031892,42.56762983673715,42.56761980388904,42.567607702347,42.56760111769828,42.56758907508296,42.56757885185764,42.56756913265907,42.5675599448607,42.5675518838665,42.56754274345926,42.56753205386066,42.56752162146294,42.56751145240067,42.56750094721674,42.56749193391508,42.5674829671477,42.5674732314807,42.56746320447336,42.56745254610517,42.56744243200104,42.56743317199549,42.56742377578968,42.56741410594083,42.56740494370366,42.56739681788899,42.5673872805593,42.56737599525023,42.56736470719559,42.56735316789597,42.56734235032514,42.56733233973782,42.56732326789801,42.56731500183638,42.56730827822972,42.56729844371514,42.56729260163475,42.56728481092087,42.5672746764532,42.56726673387745,42.56725803279334,42.56724827409758,42.56723922145249,42.5672311212973,42.56722272032033,42.56721398549615,42.56720511097708,42.56719597520323,42.56718719741901,42.56717939691753,42.56717070485929,42.56716112652885,42.56715191859015,42.56714269212311,42.5671333635061,42.56712421676969,42.56711542887746,42.56710587061973,42.56709522851494,42.56708573141677,42.56707841604354,42.56707045070357,42.56706128013838,42.56705285263988,42.56704520963626,42.56703887730266,42.56703049692315,42.567020181024,42.56701012371854,42.56700050054415,42.5669906731852,42.56698034162286,42.56697074764539,42.56696271926099,42.56695340230953,42.56694275668539,42.56693267735138,42.5669230127259,42.56691473914252,42.56690822597673,42.56689944858732,42.56688860163874,42.56687773076756,42.5668672615374,42.56685737831977,42.56684752257697,42.56683769430898,42.56682817418912,42.56681663141287,42.56681102380114,42.56679963935403,42.56678941121972,42.56678086490414,42.56676887659197,42.56675719124318,42.56674259769918,42.56673237576864,42.56672207361147,42.56671168334051,42.56670120492609,42.56669062362536,42.56668024620378,42.5666703088789,42.56666001218816,42.56664916984606,42.56663842498822,42.5666277039758,42.56661858457593,42.56660709856359,42.56659390121925,42.56658119405925,42.5665727403582,42.56656203235987,42.56654893601099,42.56653622105556,42.56652435319914,42.56651200025519,42.56649905842811,42.56648645980165,42.56647426423663,42.56646326623441,42.56645162236073,42.56643900957528,42.56642643502243,42.5664167553549,42.56640526797867,42.56639216071176,42.56638017984466,42.56637082781742,42.56635903879197,42.56634735156818,42.5663364137459,42.56632319408043,42.56631091028009,42.56630003476601,42.56628874008277,42.56627694452835,42.56626544032803,42.56625444323927,42.5662428224922,42.56622037441488,42.56620809233086,42.56619559010517,42.56618257418471,42.5661702041875,42.56615867477082,42.56614857597821,42.56613754105734,42.5661254384846,42.56611357159274,42.56610211448842,42.56609026238248,42.56606637945074,42.5660519682947,42.56603867803246,42.56602543302655,42.56601223776153,42.56599909402224,42.56598600360861,42.56597296919036,42.56595999348223,42.56594707823912,42.56593422526083,42.56592143906197,42.56590871958259,42.56589606953736,42.56588349069626,42.56587098754381,42.56585856097993,42.56584621278946,42.56583394471242,42.56582185043619,42.56580938088925,42.56579658427879,42.56578350980185,42.56577020404499,42.56575666356131,42.56574317378703,42.56572974100668,42.56571637243447,42.56570307071037,42.56568984484845,42.56567670108831,42.56566364479958,42.56565068896969,42.5656378434828,42.56562511366354,42.56561250578148,42.56560002969081,42.56558775605741,42.56557542086122,42.56556302324726,42.56555056495554,42.56553804870089,42.56552546607006,42.56551286004391,42.56550022966275,42.56548757587142,42.56547491638118,42.56546217815831,42.56544936562769,42.56543648240402,42.56542352845747,42.5654105083026,42.56539742636433,42.56538428357253,42.56537108351193,42.56535782789283,42.56534469175859,42.56533168760352,42.56531882891134,42.5653062031741,42.56529351936948,42.56528078016743,42.56526798555309,42.56525514002602,42.56524224085658,42.56522929633845,42.56521630734168,42.56520322736391,42.5651902023911,42.56517723422305,42.5651643255446,42.56515147634068,42.56513869112581,42.56512597252507,42.56511332058319,42.56510076220488,42.56508791668853,42.5650748251766,42.5650615270716,42.56504806180558,42.5650344205399,42.56502085382755,42.56500738860633,42.56499404908435,42.56498085945474,42.56496804592392,42.56495501808285,42.56494180645426,42.56492843785663,42.56491494011284,42.56490134464545,42.56488767839234,42.56487397010621,42.56486026419964,42.5648465453778,42.56483283342396,42.56481914813637,42.56480551109819,42.56479194117779,42.56477845722856,42.56476507898904,42.56475182619755,42.56473871767763,42.56472579284306,42.56471258304314,42.56469915097352,42.56468555856453,42.56467187134605,42.56465815496753,42.5646444706534,42.56463088780217,42.56461746775772,42.56460428059417,42.56459084055049,42.56457722884377,42.56456352759101,42.56454981787485,42.56453618154308,42.56452280909211,42.56450929230777,42.56449566799724,42.5644819774523,42.56446826028443,42.5644545551902,42.56444092736557,42.56442721434536,42.56441358894426,42.56440022277798,42.56438728263363,42.56437493411459,42.56436333166631,42.56435262051078,42.56434293568711,42.56433440754033,42.56432467142129,42.56431386462155,42.56430213637076,42.56428965248556,42.564276585366,42.56426312039929,42.56424944328649,42.5642357455911,42.56422242161333,42.56420880572167,42.56419509367715,42.56418148167737,42.56416838173089,42.56415521700335,42.56414198921989,42.56412870469499,42.56411536432859,42.56410197257549,42.56408580719098,42.56406755771403,42.56405459047895,42.56404165259053,42.56402874676349,42.56401587115312,42.56400302938894,42.56399021968603,42.56397744376947,42.56396470081408,42.56395199258977,42.56393931906668,42.56392668115959,42.56391407978337,42.56390151580808,42.56388898743373,42.56387649827499,42.56386404738713,42.56385163481492,42.56383931541663,42.56382692524824,42.56381446874963,42.56380194596569,42.56378935953639,42.56377670947681,42.56376399935666,42.56375123187589,42.56373840523459,42.56372552301752,42.56371258696488,42.56369961399233,42.56368646449102,42.56367316263935,42.56365960974591,42.56364623034276,42.56363308453017,42.56362023230392,42.56360773179995,42.56359563843966,42.5635843787196,42.56357277368881,42.56356084830624,42.56354862664579,42.56353613371121,42.56352339537631,42.56351028488913,42.56349732327829,42.56348452665254,42.56347190930589,42.56345948646223,42.5634472759704,42.56343528942474,42.56342354470394,42.56341205332756,42.56340082958964,42.56338999260079,42.56337905346405,42.56336801307942,42.5633568732318,42.56334563564634,42.56333430216788,42.56332287452159,42.56331135453718,42.56329974396981,42.56328804551922,42.5632762582557,42.56326438574916,42.56325242327588,42.56324061006551,42.56322895327254,42.56321745913647,42.56320613208225,42.56319497836433,42.5631840033224,42.56317321138126,42.56316260878054,42.56315222016157,42.56314193064439,42.56313173923947,42.56312164687658,42.56311165624044,42.56310176730117,42.56309198184363,42.56308229892297,42.56307272306871,42.56306304008527,42.56305394416808,42.56304546894633,42.56303764170497,42.56303049152878,42.56302404108375,42.56301831402528,42.56301333033458,42.56300965781318,42.56451377275462,42.56613762600444,42.56722536561702,42.56724784382437,42.56793304333598,42.5679315211169,42.56793340292263,42.56793395048353,42.56793520354949,42.56793646589394,42.56793878397689,42.56794200049828,42.56810447518407,42.56824459928972,42.56837544192014,42.56864967097184,42.56871836152128,42.56878487154533,42.56905690606935,42.56918883839352,42.56932295576516,42.56945978831357,42.56973656755259,42.56977516068037,42.57005114927331,42.57018455293391,42.57045373310289,42.57049283946969,42.5706650999587,42.57077346863012,42.57091301671941,42.57132099143367,42.57159034703746,42.57184391013229,42.57189759143505,42.57217057955133,42.57230553461068,42.57244510355775,42.57285149599449,42.57299029041177,42.57312447818175,42.57326174575946,42.57339962191539,42.57339300696709,42.57338969279434,42.57519993872341,42.57550143495661,42.57593890071156,42.57610738966405,42.57698351991357,42.57699762133394,42.57733609475988,42.57772986962916,42.57786737416943,42.58013651592422,42.58059689466037,42.58090749058331,42.58161655845894,42.5822198131964,42.58225030064555,42.58227384746942,42.58204083089532,42.58203430271111,42.58202362237615,42.58201297912023,42.58200237289845,42.58199180374071,42.58198127161711,42.58197077837229,42.58196032220636,42.58194990398945,42.58193952463623,42.58192918327673,42.58191887986612,42.58190861624901,42.58189839151056,42.58188820475078,42.58187805956938,42.58186795239649,42.58185788500206,42.58184785740104,42.58183787139322,42.58182792339382,42.58181801788758,42.58180815220446,42.58179832721461,42.5817885429478,42.58177880027406,42.58176909923824,42.58175943982534,42.58174982112047,42.58174024495339,42.58173071129411,42.58172121928757,42.58171176980382,42.58170236287263,42.58169299846417,42.581683678423,42.58167439911964,42.58166516416864,42.58165597265516,42.58164682550892,42.58163772184496,42.58162866160345,42.58161944018754,42.58139870263942,42.5813460707323,42.58121411791892,42.58115452635083,42.58105064979899,42.58069639553447]}]]],null,null,{"interactive":true,"className":"","stroke":true,"color":["#a5dff9","#cfd82d"],"weight":5,"opacity":0.5,"fill":true,"fillColor":["#a5dff9","#cfd82d"],"fillOpacity":0.2,"smoothFactor":1,"noClip":false},null,null,null,{"interactive":false,"permanent":false,"direction":"auto","opacity":1,"offset":[0,0],"textsize":"10px","textOnly":false,"className":"","sticky":true},null]},{"method":"addLegend","args":[{"colors":["#cfd82d","#a5dff9"],"labels":["Chiloquin City","UGB"],"na_color":null,"na_label":"NA","opacity":1,"position":"topright","type":"unknown","title":null,"extra":null,"layerId":null,"className":"info legend","group":null}]}],"limits":{"lat":[42.56300965781318,42.58684781929735],"lng":[-121.8818385192565,-121.8572192908878]}},"evals":[],"jsHooks":[]}</script>

---

# Chiloquin UGB Pop Forecast

---

# Chiloquin UGB Pop Forecast

---

# Klamath UGBs: Klamath Falls in Context

.pux-right[
<img src="Klamath_files/figure-html/unnamed-chunk-26-1.png" width="800px" height="400px" />
]

.pux-left[
<table>
 <thead>
 <tr>
 <th style="text-align:left;"> Metric </th>
 <th style="text-align:left;"> 1980 </th>
 <th style="text-align:left;"> 2000 </th>
 <th style="text-align:left;"> 2020 </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Pop 65+ </td>
 <td style="text-align:left;"> 13.49% </td>
 <td style="text-align:left;"> 12.76% </td>
 <td style="text-align:left;"> 15.68% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Units </td>
 <td style="text-align:left;"> 7,364 </td>
 <td style="text-align:left;"> 8,722 </td>
 <td style="text-align:left;"> 9,979 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Occupancy </td>
 <td style="text-align:left;"> 90.86% </td>
 <td style="text-align:left;"> 90.76% </td>
 <td style="text-align:left;"> 91.08% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Persons Per Household </td>
 <td style="text-align:left;"> 2.37 </td>
 <td style="text-align:left;"> 2.36 </td>
 <td style="text-align:left;"> 2.30 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Household Income </td>
 <td style="text-align:left;"> $13,353 </td>
 <td style="text-align:left;"> $28,498 </td>
 <td style="text-align:left;"> $46,695 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Employment Rate </td>
 <td style="text-align:left;"> 86.67% </td>
 <td style="text-align:left;"> 89.35% </td>
 <td style="text-align:left;"> 92.14% </td>
 </tr>
</tbody>
</table>
]

---

# Klamath County: Klamath Falls UGB Boundaries

<div class="leaflet html-widget html-fill-item" id="htmlwidget-20e82edad1a5a2806d6a" style="width:504px;height:450px;"></div>
<script type="application/json" data-for="htmlwidget-20e82edad1a5a2806d6a">{"x":{"options":{"crs":{"crsClass":"L.CRS.EPSG3857","code":null,"proj4def":null,"projectedBounds":null,"options":{}}},"calls":[{"method":"addProviderTiles","args":["CartoDB.Positron",null,null,{"errorTileUrl":"","noWrap":false,"detectRetina":false}]},{"method":"addPolygons","args":[[[[{"lng":[-121.7329101877021,-121.7302528089636,-121.7301325121835,-121.722744136976,-121.7227430416774,-121.7227507635857,-121.7227630751261,-121.7227121951086,-121.7226700206589,-121.7176912670773,-121.7178882549164,-121.7178919435708,-121.7079727631677,-121.7079679000571,-121.7079552548706,-121.7079184619322,-121.703124630927,-121.7029686457415,-121.7030073768804,-121.7029577022569,-121.7029579395155,-121.7029879129292,-121.7030076076313,-121.7030103863333,-121.6981565111631,-121.6981143731307,-121.6981294899127,-121.6981594069237,-121.6980968183814,-121.6980824627224,-121.697890311674,-121.6932813665746,-121.6904178331874,-121.6883479060472,-121.6883500127038,-121.6883534128343,-121.6883542655977,-121.6883562145979,-121.6883566878208,-121.6882890395723,-121.6872927063114,-121.6872869779588,-121.6862042501043,-121.6861844503901,-121.6861850128768,-121.686188589729,-121.6861920759415,-121.6861922460437,-121.6833970087971,-121.6834084086203,-121.6836399089553,-121.6836726570316,-121.6836758765992,-121.6836335100617,-121.6834674366827,-121.6834849420227,-121.6834777129848,-121.6834966203836,-121.6835051628709,-121.6835129680252,-121.6835117872306,-121.6859003259995,-121.6860067676513,-121.6860196810824,-121.6874053568615,-121.6882874045852,-121.6884107010965,-121.692236866267,-121.6937036360641,-121.6941741982073,-121.6945412919045,-121.6950946978547,-121.6954654799579,-121.6955577132426,-121.6955446506249,-121.6954541209021,-121.6954423140727,-121.6952775981142,-121.6956700538676,-121.6956672946978,-121.6939087946644,-121.6943044307369,-121.6948811251075,-121.6950671716143,-121.6953344262222,-121.6955447700464,-121.695712775933,-121.6959058252286,-121.6961185045122,-121.6963718267579,-121.6972123427392,-121.6973876959855,-121.6973700411999,-121.6972409716946,-121.6978746458762,-121.6980822199273,-121.6981981650796,-121.6981913792812,-121.6981920488581,-121.698760124054,-121.7039112312274,-121.7038689446386,-121.7051734385821,-121.7058097450006,-121.7059588391307,-121.7061016836057,-121.7062735966031,-121.7062888989048,-121.7063225762568,-121.7065240451837,-121.7066348596097,-121.7067332490007,-121.7069254473274,-121.7076476607039,-121.7077334217579,-121.7080768811659,-121.7084734625127,-121.7087454150495,-121.7094575082411,-121.7102999672697,-121.7105073296825,-121.7109237142422,-121.7114992806191,-121.7116136609225,-121.7120127474783,-121.7122329619852,-121.7123429887244,-121.7125435589025,-121.7127813389127,-121.7136509300885,-121.7138123717375,-121.7138850462673,-121.7139420415445,-121.7140757055065,-121.7142729612016,-121.7143100375425,-121.7143009105197,-121.7176833256224,-121.7177659835337,-121.7225058578576,-121.7228935871972,-121.7275878546696,-121.7276274680002,-121.7276092174601,-121.7276907458968,-121.7278108573827,-121.7279727670854,-121.72796707712,-121.7267303588937,-121.7247990760851,-121.7248020990659,-121.7228143680455,-121.7228248361451,-121.7228544666681,-121.7269905239397,-121.7270503009309,-121.7276173824275,-121.7257707753942,-121.7245694462603,-121.7238535262465,-121.7218736177719,-121.7295081743475,-121.7296703609749,-121.7313880036848,-121.7327153140824,-121.7327079599844,-121.7333021896076,-121.7338489520804,-121.7338180350231,-121.7351698850104,-121.7408707381733,-121.7507098007107,-121.7506544989297,-121.7514873951871,-121.75146456929,-121.7526123057217,-121.7523293293241,-121.7534737465597,-121.753766339878,-121.7573150131681,-121.7664520505493,-121.7664346834556,-121.7669942611552,-121.766995957319,-121.7672289413404,-121.767631025868,-121.7677304488923,-121.7678844828513,-121.7680463391885,-121.7683315505811,-121.7686655732908,-121.7701354517398,-121.7718013485422,-121.7719804379659,-121.7705877765429,-121.7717443286482,-121.7717564577795,-121.7718750123955,-121.7718612178091,-121.7699555795703,-121.7697829964033,-121.7683016739614,-121.7682630833713,-121.7704598054184,-121.770575696782,-121.7708822355746,-121.773953496368,-121.7728568930509,-121.7727615107113,-121.7725950553376,-121.7716297225101,-121.7718760857805,-121.7720352206029,-121.7721368363332,-121.7721880616849,-121.7737399393855,-121.7740319437401,-121.7741059660879,-121.7741586785848,-121.774323611599,-121.7751347969731,-121.7753744064355,-121.7756050788784,-121.7758122946804,-121.7766609898854,-121.7781045491302,-121.7790419203849,-121.7794731633021,-121.7801066580728,-121.7806851608889,-121.7842839216249,-121.7846728753267,-121.7847573114329,-121.7849204348728,-121.7850203045289,-121.7850951392228,-121.7851563978604,-121.7851849630368,-121.7857312561316,-121.786473013689,-121.7865597518443,-121.7866339474147,-121.7867454850201,-121.7868122339121,-121.7868557669158,-121.7868450997994,-121.7870397525046,-121.7870900757978,-121.787150350348,-121.7873014131785,-121.7874197338476,-121.7872339012278,-121.7871802770425,-121.7871956862381,-121.7872828535192,-121.7876630016533,-121.7880191740532,-121.7880784039569,-121.7884646295191,-121.7883069405117,-121.7883848132214,-121.7884888868798,-121.7886433985819,-121.7887764130038,-121.7894188655286,-121.7901337344238,-121.7916365775045,-121.7922974473493,-121.7925222501105,-121.7934041924393,-121.7942216897813,-121.7943987246913,-121.794708297101,-121.7950587373078,-121.7953387755756,-121.7956681934243,-121.795998015249,-121.7965097642459,-121.797050002452,-121.7973567962009,-121.7975117655749,-121.797633020841,-121.7976951318006,-121.7977221213113,-121.7977344331654,-121.7977764639887,-121.7978390837073,-121.7978653070194,-121.7978805849155,-121.7979271051772,-121.7979642562313,-121.798026964924,-121.7980698468407,-121.7981094500121,-121.7981620460828,-121.7981926130361,-121.798229973661,-121.7982716329346,-121.7982880602125,-121.7983227945331,-121.7984283126863,-121.7984288139726,-121.798498574261,-121.7986083758809,-121.798653332559,-121.7986949400365,-121.7987812499166,-121.7988552468046,-121.7989121289776,-121.7990343561843,-121.7990675958503,-121.7991097972529,-121.7991380792587,-121.7991404970425,-121.7991538888799,-121.7991496152261,-121.7991565005775,-121.7991553679891,-121.7991659951586,-121.7991617897359,-121.799168365549,-121.7991659496997,-121.7991721381158,-121.7991925281451,-121.7991846155757,-121.7992062488173,-121.7992236083756,-121.7993077490089,-121.79933023596,-121.7994066305779,-121.7994069445248,-121.7994582066172,-121.7997903063183,-121.8010306682607,-121.8108766671342,-121.8110346040601,-121.8159220878427,-121.8158303156322,-121.8207457517612,-121.8207635540913,-121.8195708196889,-121.8195712688874,-121.8196269958497,-121.8196146979948,-121.8208280044955,-121.8202459952583,-121.8157643216307,-121.8157189751193,-121.8174364028555,-121.8174165441191,-121.818430861759,-121.8184670910127,-121.8200902836527,-121.8205168633659,-121.8209344698591,-121.8206465723795,-121.8206489273326,-121.8206446302626,-121.8207443464292,-121.820988020461,-121.8218729892766,-121.8231135415868,-121.8240269166846,-121.8239414280655,-121.8239125543614,-121.8234517156853,-121.8229584883744,-121.8227281182947,-121.8226678220911,-121.8223308197397,-121.822178249382,-121.8215645195807,-121.8217829322204,-121.8199314018535,-121.8209290121223,-121.8209321179423,-121.8259036879218,-121.8259063089132,-121.8283658522252,-121.8283300847009,-121.8325705114789,-121.8327601154341,-121.8329796355257,-121.8335000511619,-121.8339303196662,-121.8345102682973,-121.8345585576867,-121.8356553232663,-121.8357131212413,-121.8357750925729,-121.8356542882649,-121.8357007000259,-121.8211414329615,-121.8208936029856,-121.8208143371627,-121.8062032218192,-121.806217143416,-121.8060387437565,-121.7974166957475,-121.7972150892129,-121.7967843498141,-121.7956705711028,-121.7944824223996,-121.796367112272,-121.7963270034308,-121.8116735876109,-121.8128428319171,-121.8150614900008,-121.8159949928658,-121.8159949461996,-121.8204431697772,-121.8204943573254,-121.8204355550898,-121.8204312363335,-121.8205158521811,-121.8205875243713,-121.8206740408594,-121.821629320968,-121.8212914981151,-121.8231549640239,-121.8237498838568,-121.8251707587617,-121.8286881259967,-121.8306926781849,-121.8306917357595,-121.8308941465306,-121.8356628380374,-121.8356698924989,-121.8404750792566,-121.8404616206679,-121.8405163086193,-121.8405497322997,-121.8411777695051,-121.8435545434696,-121.8433232540924,-121.843652914849,-121.8446193640282,-121.8464898979691,-121.847466121125,-121.8480315645923,-121.8528750728853,-121.8454292367772,-121.8453935797732,-121.8414057847798,-121.839699177379,-121.8388899051946,-121.838762243847,-121.8386522101999,-121.8385769245019,-121.8383554937825,-121.838159545994,-121.8378104889993,-121.8375920462736,-121.8369616109297,-121.8367945600535,-121.8363360564437,-121.8358516888961,-121.8357630984324,-121.8357459189606,-121.8357202228856,-121.8355834358183,-121.8354890168017,-121.8354128302456,-121.8353343666961,-121.83526353617,-121.8352784209852,-121.8352083360379,-121.8349989394803,-121.8349152626525,-121.8348093918639,-121.8346754086168,-121.834570044472,-121.8343705036642,-121.8342066380482,-121.8341180143771,-121.8338849650535,-121.8336838060187,-121.8335940049862,-121.8335045672549,-121.8327914192768,-121.8326185580335,-121.8324188652155,-121.8322288722503,-121.832127193637,-121.8320320101493,-121.831758096164,-121.8315974117264,-121.8310157057597,-121.8309385701326,-121.8308602391437,-121.8307671510024,-121.8307245096626,-121.8306630469499,-121.8305555408983,-121.8304943014038,-121.8304002705728,-121.8303472524447,-121.8302713181434,-121.8301730741568,-121.8299670531269,-121.8299209544488,-121.8298514851334,-121.8298255368416,-121.8298073932042,-121.8297551216426,-121.8296722846278,-121.8296544005513,-121.8295997779541,-121.8295104950542,-121.8294800071769,-121.829404037264,-121.8293049856654,-121.8292452900212,-121.8291356741073,-121.8289089047517,-121.8287633284714,-121.8286856531528,-121.8283871851888,-121.8282739715861,-121.828082435612,-121.8277490986122,-121.827674273964,-121.8275262971212,-121.8273485914245,-121.8271244549828,-121.8269861946749,-121.8268785620744,-121.8263885646019,-121.8262831770579,-121.8262041901003,-121.8258030529844,-121.8257891332368,-121.8257867238136,-121.825648309751,-121.825542202074,-121.8254502084942,-121.8253631623539,-121.8252528757752,-121.8251582062853,-121.8250064407927,-121.824930461092,-121.8248273947335,-121.8246948627294,-121.8245239628856,-121.8244637757316,-121.8244276267762,-121.8240515312221,-121.8237909662413,-121.82369321477,-121.8234981161371,-121.823061300569,-121.8217721677837,-121.8213563582855,-121.8211259117904,-121.8209498113901,-121.8209505181937,-121.8208665579178,-121.8207779186534,-121.8205362078312,-121.8204451323698,-121.8202216447135,-121.8196938202615,-121.8192766344635,-121.8190573652806,-121.8189443529985,-121.8188232028836,-121.8186772407323,-121.8185947669342,-121.8184662667171,-121.8183507660683,-121.81818854149,-121.8180744223084,-121.817921805745,-121.8178472388379,-121.8177588727719,-121.8177308868241,-121.8176728800223,-121.8175885118506,-121.817314978749,-121.8172043531554,-121.8169899134585,-121.8169088717517,-121.8167996908814,-121.8167051354227,-121.8166312783549,-121.8164592243919,-121.8163470521038,-121.8161192231939,-121.8160410615398,-121.8160150225293,-121.8160970377017,-121.8134994371684,-121.8146750872612,-121.8140314226803,-121.8136139425543,-121.8051540403806,-121.8036979965079,-121.8043631461598,-121.8044344381718,-121.8056542625671,-121.8056375946544,-121.8063228028469,-121.8065085451443,-121.8068986342093,-121.8071500571353,-121.8086686211443,-121.8092983694809,-121.8100430995429,-121.8102845729481,-121.8105887529707,-121.8105557932027,-121.8105613785689,-121.8063042082047,-121.8062030942771,-121.8036776114948,-121.8036775760655,-121.8012247043534,-121.7997489889231,-121.7974627581071,-121.7972387938434,-121.7962279538426,-121.7953636212265,-121.7951457662285,-121.7914526612832,-121.7914586120885,-121.7914688969228,-121.7914469963052,-121.7890172170715,-121.7868018688334,-121.7865243721547,-121.7768310115479,-121.7768443018161,-121.7769513631204,-121.7769874204149,-121.7770776478967,-121.7771418131377,-121.7771625175858,-121.7771522609004,-121.7771444602687,-121.7771393887139,-121.7771392973193,-121.7771206571016,-121.7771102417278,-121.7721514824613,-121.7721422870273,-121.7721651303106,-121.7721939882592,-121.7721945172206,-121.7721965385565,-121.7721976272349,-121.7721995450701,-121.7722000835238,-121.7722006454311,-121.7722046475394,-121.7722052010574,-121.7722086574553,-121.7722091254386,-121.7722126358675,-121.772214507636,-121.7722179430428,-121.7722186501773,-121.7722231994735,-121.7722255787854,-121.7722300646246,-121.7722305232878,-121.7722331286125,-121.7722340834279,-121.7722342219719,-121.7722326284078,-121.7722332822765,-121.772217556811,-121.7722212308404,-121.7722070270746,-121.7721857766713,-121.7721940376632,-121.77220343309,-121.7721994806381,-121.7721832229182,-121.772148471605,-121.7721329903729,-121.7716782572213,-121.7716233916125,-121.7705159519043,-121.7703360108597,-121.7703069899697,-121.7702945826785,-121.7701878054605,-121.769973417745,-121.7697112906226,-121.769636707356,-121.7696246867948,-121.76937324431,-121.7685693911426,-121.7685693514259,-121.7680370819054,-121.7672964714541,-121.7672698824153,-121.7672582631592,-121.7672459720967,-121.7672369025826,-121.7672367989431,-121.7671758437432,-121.7670864587472,-121.7654158809282,-121.7647219411681,-121.7643684965327,-121.7638598739402,-121.7632624850759,-121.7614902216627,-121.7596117719322,-121.7573564216027,-121.757338839764,-121.7564336937847,-121.7549242145152,-121.7549167588234,-121.7532839552614,-121.7530556167168,-121.7529297779996,-121.7528081651523,-121.7521008851748,-121.74766856957,-121.7476350860402,-121.747307231544,-121.7465176311055,-121.7440546046167,-121.7436705737373,-121.7458974004736,-121.7453883643639,-121.7425013817327,-121.7424912720052,-121.7422592934225,-121.7419496106896,-121.7417957591019,-121.7417336929587,-121.7419202400621,-121.741941839982,-121.7419919008514,-121.7420201751059,-121.7420979865591,-121.7421959794666,-121.7422382577387,-121.7422826255432,-121.742533702807,-121.7432162130509,-121.7432932135379,-121.7433809517183,-121.7433588312614,-121.7444970242992,-121.7463201408073,-121.7474220902273,-121.7505926162726,-121.7523218134464,-121.7498405750237,-121.7505346129272,-121.7515000061913,-121.75195231383,-121.7541412480572,-121.7539265046522,-121.7551435097457,-121.7473852106502,-121.7473855185214,-121.7424685322748,-121.7424715242804,-121.7328984358379,-121.7329233386939,-121.7329101877021],"lat":[42.2610835099709,42.26112254647676,42.2574802909917,42.25743860055081,42.25743859916864,42.25606534589972,42.25387530206722,42.25190122071484,42.250264813507,42.25025205985727,42.24313280234981,42.24301044165302,42.24298349921877,42.24283719360832,42.24107755040949,42.23576154676017,42.23574806381196,42.23574762125269,42.22859522434496,42.22849514599225,42.22847861802935,42.22638853725196,42.22501507987484,42.22482133819039,42.22481375897475,42.22481369223159,42.22242021203871,42.21768250172139,42.20663884365952,42.20663214578651,42.20663418899105,42.20664845407914,42.20665602155641,42.20666146635689,42.20545335892339,42.20350276072208,42.20301320157246,42.2018950027946,42.20181367069356,42.20169938962789,42.20033076124547,42.20032289193136,42.20034575050575,42.20126383837606,42.20138995922943,42.20219314010599,42.20297570563078,42.20301398497655,42.20301980240331,42.19954430500254,42.19869996175034,42.19788554512935,42.19693121198468,42.19692809943874,42.19451105465532,42.1943340142095,42.19353949314201,42.19323482092992,42.1927400546558,42.19215800183955,42.19201505530959,42.19201992969444,42.19202137469206,42.19202123866503,42.19202052793279,42.19202451612416,42.19200739289347,42.19197449615479,42.19196890563538,42.1919717637601,42.19196722626945,42.19196032615736,42.19195570426446,42.19195455337722,42.19122810919532,42.1912254705929,42.1905231000168,42.19022477701341,42.18942378991354,42.18928289989653,42.18768677931776,42.18704836271313,42.18597980712488,42.18580435439576,42.18568222141753,42.18563116399515,42.18565102370934,42.18583321184272,42.18590136741757,42.18587863668221,42.18556431063844,42.18521553112759,42.18505854340012,42.18479436444948,42.18477665022375,42.18458469831798,42.18247187965179,42.18173282247837,42.18166809301097,42.18162345701236,42.18045656527348,42.18036713375213,42.1800752902065,42.17993244513044,42.17999427041047,42.18006356544598,42.18016479800497,42.18018366683489,42.1801970473006,42.18038614732482,42.1805190488538,42.18065791727363,42.18086142901222,42.18217914134848,42.18231348244836,42.18271323038871,42.18310306632635,42.18337531331829,42.18394011925842,42.1845151548433,42.18469247630193,42.18497246387044,42.18537198757126,42.18544653559153,42.18580251342573,42.1859948514209,42.18608693915013,42.18623750859603,42.18636667884505,42.1867256431519,42.18680083710157,42.18682802743552,42.18685538924488,42.18695304656759,42.18709432083872,42.18651430825084,42.1810172308731,42.18098870624706,42.1738400771774,42.17384509931829,42.17393267759236,42.17397244103242,42.17363895315601,42.16070173282832,42.16051272419968,42.16030236743709,42.1590857489978,42.15880271199969,42.15831382060201,42.15820522481512,42.15830676186377,42.15819551614994,42.15518864308912,42.1535503517505,42.15353132467708,42.15172538970346,42.15172015320887,42.14811829483934,42.1481045523761,42.14461526566849,42.14087822726021,42.14083130935557,42.14121774160466,42.1444442702829,42.14445118941617,42.14698260057463,42.14809409518764,42.14809419423248,42.14924994662499,42.15170403922968,42.15173999781236,42.1627757415635,42.16279335600215,42.16366408059271,42.16366434036158,42.16492594565146,42.16509779928236,42.16640115095629,42.16669763482716,42.16671581696698,42.16665751912265,42.16666554493509,42.16697412697965,42.16692910688852,42.16704578057794,42.16728442882813,42.16734394038389,42.16741586742342,42.16748444362553,42.16758290708277,42.16766776570274,42.16790097084162,42.16816623505583,42.16818426831648,42.16936593711367,42.16951957527322,42.17030167306898,42.17030649082803,42.17393493889159,42.17394142323255,42.17393722493928,42.17396044170059,42.17760618262012,42.17759947022358,42.17767543237408,42.1789225613151,42.18158016967978,42.18251883437955,42.18262969611362,42.18292070430351,42.18462717514532,42.18501721728465,42.1853657022035,42.18570011740629,42.18594016561974,42.18678824512195,42.18696330919433,42.18702957127466,42.18719982837164,42.18743591639721,42.1879697927177,42.18811706293819,42.18850242885117,42.1887638956529,42.18942667112371,42.19092070387875,42.19083224126972,42.19082724411381,42.19084576874173,42.19089597043593,42.19230799125415,42.19161535505805,42.1913298151058,42.19114683517794,42.19093354944062,42.19058768617442,42.19012408940458,42.18969504632938,42.18905493833053,42.18797762679976,42.18756764863091,42.18714956882492,42.18687367331731,42.18678136373828,42.1865381900951,42.18616792957302,42.18589745057969,42.18518785344301,42.1850340612142,42.18486839376752,42.18450727290539,42.1842454877179,42.18400983367883,42.18379040399122,42.18358078027812,42.18342095570599,42.18320405294683,42.18303295335497,42.182890084402,42.18287702327359,42.18276968222884,42.18268332171971,42.18268151800473,42.18274595290924,42.18267459076266,42.18250871854545,42.18170993081073,42.1814275995895,42.18123126190174,42.18071218523043,42.18039394918677,42.18037484482966,42.18026265335438,42.18018829636681,42.18016798101299,42.18004703971242,42.17994524965619,42.17992008188816,42.17975408703168,42.17964617782498,42.17953153838819,42.1793520866585,42.17927181604393,42.17925191513414,42.17923396163378,42.17921630222396,42.17920376484359,42.17918886623272,42.17917473983627,42.17911046761274,42.17908042090118,42.17904492459196,42.17902661244448,42.17901691875554,42.17899712519102,42.17898010896329,42.17895992934351,42.17893841211701,42.17892405793906,42.17888888960373,42.17875032743589,42.17873315721049,42.17866887326187,42.17855714420331,42.17850139708484,42.17846170615447,42.17841218387272,42.17838156828577,42.17835618788479,42.17826948130048,42.17822210891894,42.17815251299884,42.17807453878815,42.17802432508589,42.17796940740227,42.17794200072557,42.17790897166666,42.17785909226442,42.17782511734057,42.17778169396777,42.17775339727025,42.17772657894433,42.17769935423342,42.17766494668525,42.17764002370682,42.17760621083802,42.17754499129639,42.17739359993555,42.17735169299628,42.17725072918615,42.17723653934283,42.17718803935509,42.1778888310205,42.1807489505673,42.18081004906626,42.18450240921602,42.18448730390445,42.1829732781115,42.18297322294989,42.18106200366661,42.18104487977083,42.18083535890609,42.18083469267977,42.18044986398679,42.18044719700535,42.1790793548535,42.17909807495187,42.17525126665448,42.17466470041694,42.17463476775492,42.17425426127907,42.17431734499028,42.17376228811359,42.17371272377384,42.17364315143152,42.17375510373559,42.17592907643371,42.1766547751051,42.17701343194757,42.17755772610683,42.17954832539864,42.17925775083861,42.18076504093688,42.18086249624164,42.18114691834911,42.18171017318592,42.18239630456905,42.18259974468194,42.18288975610563,42.18334727306387,42.18358365979857,42.18437026493422,42.18447469383939,42.18705540208162,42.18798962466737,42.18808825960445,42.18811860298305,42.18823929176644,42.18825197495357,42.19178337118953,42.19179439106997,42.1917826897181,42.19174991885073,42.19179564870717,42.19192582024223,42.19195379557495,42.19277141226354,42.1918996192919,42.19253764921189,42.19924811127807,42.19924590777666,42.20283410244554,42.20272740809832,42.20278674415272,42.19912357704457,42.19907996780112,42.19568145257651,42.19544197421973,42.19536646804113,42.19556210743727,42.19618724439174,42.19728746866033,42.19896836455499,42.1989784649416,42.21011701155163,42.21003615511108,42.21003334027974,42.21002834721471,42.21002629990518,42.20998876258007,42.21001262042741,42.20976504494459,42.20966065686875,42.20946103496382,42.20942442573465,42.20884438405508,42.20859638519705,42.20905410939991,42.21001717020872,42.21003394959498,42.21040895487594,42.21102812643387,42.21263664709441,42.21367541642582,42.21363219426704,42.21373272085628,42.21372213337435,42.2110037024438,42.21099495000631,42.21371315014396,42.21371248633545,42.22038872438937,42.22178359855868,42.22451097858089,42.22459501656312,42.22500796785609,42.22588427834309,42.228108747706,42.22942353735694,42.22995273242918,42.23545481931875,42.23551867490013,42.24289607524879,42.24290858056771,42.24292414757675,42.24292881707245,42.24294321407737,42.24297281799866,42.24300971070745,42.24308563959733,42.24312416725682,42.24315392159887,42.24312958088714,42.24300870778698,42.24296189841122,42.24287363764118,42.24270987164062,42.24229716358162,42.24214445301993,42.24207665659944,42.24175319908053,42.24162712232066,42.2414648445806,42.24135656603104,42.24120193333962,42.24117091311812,42.24112935410094,42.24096483096498,42.24085532987431,42.24075894692574,42.24064234268018,42.24056908386299,42.24045969661922,42.24039999496446,42.24038050434628,42.24032035233791,42.24032406155826,42.24030073431029,42.24024398724738,42.24021404140741,42.24021741182376,42.24017998485954,42.24011159937775,42.24004857425174,42.23996619520675,42.23977674300576,42.23970414826037,42.23927810496701,42.23923020280821,42.23920673070423,42.23914103125686,42.23908885943845,42.239045907614,42.23895339629989,42.23892072298927,42.23889101506867,42.23882454114435,42.23876663530389,42.2387022818379,42.23861224042117,42.23856010903664,42.23846713830118,42.23830810824384,42.23811043235495,42.23793372802804,42.23770342090548,42.23759697919842,42.23731236183421,42.23702430578094,42.23689488535472,42.23674159656247,42.23663998645323,42.23659865075665,42.23655659975289,42.23649481574164,42.23644289675497,42.23642702523053,42.23635580227337,42.23631596281184,42.23626405368454,42.23619536511519,42.23617003960297,42.23613979856997,42.23610107243973,42.23605954841328,42.2360419976525,42.23601767501237,42.23592170943735,42.23590620225858,42.23587818058306,42.23581020018521,42.23581757123097,42.23590851056408,42.23586969091051,42.23586238842181,42.23583536111819,42.2358235401265,42.23580445184344,42.23578174423587,42.23575245435411,42.23574279542271,42.23571607141189,42.23569295970778,42.23567819859033,42.23568080758061,42.23567437988014,42.23567892674481,42.23567790819374,42.23566769025251,42.23566588658722,42.2356970033029,42.23573024289909,42.23576659003,42.2357915970814,42.23580987312088,42.23582534370913,42.23583690785799,42.2358433165994,42.23587235789525,42.23587701159241,42.23589810836771,42.23593710364858,42.23598844517355,42.23598274156637,42.23597161077681,42.23595403816679,42.23593557262868,42.23593120804534,42.23590658989045,42.2358913272706,42.23586057328514,42.23583518995263,42.2358049158789,42.23579629459167,42.23577863305909,42.23577866355721,42.23575914755327,42.2357411357856,42.23570398198373,42.23569222513469,42.23565080085395,42.23563869103416,42.23561692692831,42.23561140167773,42.23559861199352,42.23559412533015,42.23558476308513,42.23554717875939,42.23555262273146,42.23554992405942,42.25350537990963,42.25354915572925,42.2574247003045,42.25755301156973,42.25762554098463,42.25871970408151,42.25907981960731,42.25990838601243,42.25981972080851,42.26052767679774,42.26055420663349,42.26098094374503,42.26097874815875,42.26131706639445,42.26148973991273,42.26246710401232,42.26295313061248,42.26407346837171,42.26456827402152,42.26562273542388,42.26644699658462,42.26827868632934,42.26832613187869,42.26832862920272,42.2683288642982,42.2683302112032,42.26832903879592,42.26830316986487,42.26828274346683,42.26828073958681,42.2682716909506,42.2682594932291,42.26825248120389,42.2682151240186,42.26754899874152,42.26639744022724,42.26453887650624,42.26452426200515,42.26451089153912,42.26450921393879,42.26444375864401,42.26415486752317,42.2618275239473,42.26104364358243,42.25908205622367,42.25768700434897,42.25723685734363,42.25568234535921,42.25449995708082,42.25373126741383,42.2537173564272,42.25146762918767,42.25021053066551,42.2502226130752,42.25022264603361,42.2490546053073,42.24658482597984,42.24653950264959,42.24622845462572,42.24606081513458,42.24576559924231,42.2457181760152,42.24566862481471,42.24531565524932,42.24526686379085,42.24496213301931,42.24492207657857,42.24462156463414,42.24446127409696,42.24416709938125,42.24412067959238,42.24382229969057,42.24366625156795,42.24337203425355,42.24332038088954,42.24302619697153,42.24291841571363,42.24279106882318,42.24244731935314,42.24238899624382,42.24198113480394,42.24179958538632,42.24092423619354,42.24075789205494,42.24062082850453,42.24052503773301,42.24050905979352,42.24048250584276,42.24041964292199,42.24039163815721,42.23956904336215,42.23946979003421,42.23746636760138,42.23714083099724,42.23708832690903,42.23706588035287,42.23709799112805,42.23716246225592,42.23723986079121,42.23726195349195,42.23726552888769,42.23734044121958,42.2375793997528,42.23757941190932,42.23773727996646,42.23795729635542,42.23796519499049,42.23739464784903,42.23682929908408,42.23643640791918,42.23582133641266,42.2356552771759,42.2356816862105,42.23568969058857,42.23570169880853,42.23570303622954,42.23568815700363,42.23570079483394,42.23572781600658,42.23573029369029,42.23574515341094,42.23686652370916,42.23758450071875,42.23758480739892,42.23895451741807,42.24067966816341,42.24091815201395,42.24110010986976,42.24133016096782,42.24301350476434,42.24298180375062,42.24576201421328,42.24625259955529,42.24669514036267,42.24591649817538,42.24666636190141,42.24740963916894,42.24805441258228,42.24807930502084,42.25158176527633,42.25195738473446,42.25243984706152,42.25272981170362,42.25304417820652,42.25464009777447,42.25486027094672,42.25500259100343,42.25505592477718,42.25516361518317,42.2552609793152,42.25529269500948,42.25534389922771,42.25562507426158,42.25665193240975,42.25687249667646,42.25732334859674,42.25752258634778,42.25753520858407,42.25755506121724,42.25756806297183,42.2599455369858,42.26124033488545,42.26317287038376,42.26366507081288,42.26429250700246,42.26486989109241,42.26718042387733,42.26927616416029,42.27220415228587,42.27210870574603,42.26973489359298,42.26970316037016,42.26841096378398,42.26838408279956,42.26304745958058,42.2610835099709]}]],[[{"lng":[-121.821599735295,-121.8215927249976,-121.821165411975,-121.8211759479932,-121.821599735295],"lat":[42.18997463296951,42.18964435511776,42.1896493699804,42.18997473106985,42.18997463296951]}],[{"lng":[-121.8211221319329,-121.8219682880818,-121.8219786139343,-121.821132461952,-121.8211221319329],"lat":[42.19178504201238,42.19178620023153,42.19138838674798,42.19138722232407,42.19178504201238]}],[{"lng":[-121.7573398149591,-121.760049347914,-121.7600417760627,-121.7587464649703,-121.7586712682963,-121.7573712383205,-121.7573655378559,-121.7573398149591],"lat":[42.16655649801278,42.16654115998897,42.16652621716049,42.16294686940288,42.16285672629878,42.16077228499689,42.16238910833012,42.16655649801278]}],[{"lng":[-121.7524985725237,-121.7524968380354,-121.7524952033377,-121.7524918386481,-121.7547437701519,-121.754746023339,-121.754748051225,-121.7535818728334,-121.7535837863433,-121.7547499973151,-121.7547529163559,-121.7534089025478,-121.7528018373819,-121.7525946154962,-121.7525026125746,-121.7524985725237],"lat":[42.20117000618677,42.20159488654773,42.20195820421837,42.20270338311201,42.20272048455606,42.20197439178195,42.20119143052763,42.20118024728471,42.20042323276925,42.20043446675512,42.19946532066954,42.19944998983785,42.19944339184241,42.19998864760411,42.19998763024456,42.20117000618677]}],[{"lng":[-121.7201321274213,-121.7201343930237,-121.7201626524324,-121.7201532954023,-121.720167901587,-121.7177589716813,-121.7177524915737,-121.7201321274213],"lat":[42.18554062321921,42.18520889515064,42.1850476327611,42.18504762368628,42.18461172422582,42.18461702634541,42.18552427162575,42.18554062321921]}],[{"lng":[-121.8146832347659,-121.81468389182,-121.8137260282169,-121.8137281019931,-121.8139292846098,-121.8141175503809,-121.8142061448712,-121.8142071009695,-121.814204451471,-121.8137264744561,-121.8137252664139,-121.8137236662505,-121.8137259252325,-121.8137452568421,-121.8147047056335,-121.8146792553077,-121.8146805096985,-121.8146832347659],"lat":[42.19240886432711,42.19191561627319,42.19190496989987,42.19226568915146,42.19226844401314,42.1922711785566,42.19227246043267,42.19240520267873,42.19254193358879,42.1925383773002,42.19309333446633,42.19336735263414,42.19364938559172,42.19491622153704,42.19491622546798,42.19379361223368,42.19254203653928,42.19240886432711]}],[{"lng":[-121.8135069691712,-121.8135066764524,-121.8131376084673,-121.8131354554912,-121.8125837153753,-121.8125879675464,-121.8125873877686,-121.8125931503462,-121.8130709765639,-121.8135120409237,-121.8135063452224,-121.8135069691712],"lat":[42.19254175235917,42.192265441948,42.19226382831717,42.1918992084069,42.19189749391474,42.19253694553271,42.19364744001713,42.19488375423137,42.19487934136181,42.19488170182017,42.19364941697726,42.19254175235917]}],[{"lng":[-121.8123717247792,-121.8123673085166,-121.8118025582267,-121.8118084518819,-121.8118106765327,-121.8123717247792],"lat":[42.19322043176017,42.19239797333031,42.19239198948882,42.19267179379653,42.19321534889236,42.19322043176017]}],[{"lng":[-121.8259094597669,-121.8259452768493,-121.8211122469837,-121.821111279532,-121.8229211903172,-121.8229211909503,-121.8210383229408,-121.8210379688622,-121.8259091052943,-121.8258946567861,-121.8356772682283,-121.8357648297942,-121.8259094597669],"lat":[42.19552678289529,42.19195482792276,42.19195035212633,42.19438133187784,42.19438134544876,42.19552676377656,42.195525832619,42.19643136129785,42.19643231066091,42.19917665464311,42.19921127315698,42.1955580430275,42.19552678289529]}],[{"lng":[-121.8158947853726,-121.8149261119283,-121.8149261125303,-121.8158947857117,-121.8158947853726],"lat":[42.19256732959722,42.19256732571467,42.19491622579698,42.19491622922668,42.19256732959722]}],[{"lng":[-121.8155843579902,-121.8155830313992,-121.8152174380836,-121.815215326465,-121.8155843579902],"lat":[42.19549782854519,42.19508568814999,42.19507469302945,42.19549887988436,42.19549782854519]}],[{"lng":[-121.8123722198024,-121.8123709570166,-121.8118103097607,-121.8118130622278,-121.8123722198024],"lat":[42.1944696706631,42.19405954508506,42.19406092137756,42.19446726708702,42.1944696706631]}],[{"lng":[-121.8123725989466,-121.8123722793923,-121.8112392451871,-121.8112377409965,-121.8123725989466],"lat":[42.19378724278835,42.19350938904972,42.19350577833212,42.19378489751531,42.19378724278835]}],[{"lng":[-121.7582852140373,-121.7590610278714,-121.7590610568343,-121.7590587878613,-121.7590595649999,-121.7590603440592,-121.7583123064027,-121.7573859106693,-121.7573349772975,-121.7573366389372,-121.757439833862,-121.7583109579585,-121.7591819682629,-121.7591829774873,-121.759184192315,-121.7591850358903,-121.7591859548958,-121.7591791165182,-121.759170981413,-121.7591591844863,-121.759145364591,-121.7591276677466,-121.7590971449319,-121.759097781321,-121.7590917674409,-121.7590960418187,-121.7591006614793,-121.7590941745276,-121.7590612747394,-121.7592974898118,-121.7593174074556,-121.7593284001403,-121.7593224002884,-121.7593444138318,-121.7593740124505,-121.7594042456536,-121.7594200370019,-121.7594197107272,-121.7602809584498,-121.7602880385383,-121.7602771892722,-121.7602351614857,-121.7602331891825,-121.7592787700302,-121.7592797676189,-121.7590581773337,-121.7584520066418,-121.7573818185881,-121.7573815017165,-121.7584516426099,-121.7590576582189,-121.7590612435801,-121.7590557801253,-121.7590538941252,-121.7592789655266,-121.7592753594233,-121.7602405256971,-121.7602405739555,-121.7615467907166,-121.7615726191312,-121.761562674322,-121.7615577922658,-121.7615474894084,-121.7615469933537,-121.7569302206278,-121.7569309402922,-121.7569323888476,-121.7562754220869,-121.7562820411321,-121.7562867599985,-121.756938283672,-121.7569393882286,-121.7562856234947,-121.755665721914,-121.7550457904333,-121.7546713871205,-121.7546740455257,-121.7544111903786,-121.7544071412226,-121.754406075837,-121.7548489852928,-121.7557330165371,-121.756941900526,-121.7569350982362,-121.7564338431815,-121.7559909082644,-121.7555480064163,-121.7551051221843,-121.7546622523272,-121.7542194032469,-121.7537820820974,-121.7524906203801,-121.7524931990239,-121.7537895127406,-121.7540110274901,-121.7547769448489,-121.754865352581,-121.7548636667751,-121.7554912229182,-121.75582281271,-121.7559544362054,-121.7559562952127,-121.7549741361866,-121.7549746123805,-121.7549741877727,-121.7549769620745,-121.7549753588925,-121.7549750729009,-121.7549720028867,-121.7556420322032,-121.755817443844,-121.7558214392881,-121.7563493120158,-121.7570010286542,-121.7570038004952,-121.75690228539,-121.7558868534865,-121.7553265058971,-121.7553264135651,-121.7549558683561,-121.7549564522853,-121.7547344380689,-121.7547339221005,-121.75397816305,-121.753297640648,-121.7526936614557,-121.752471099741,-121.7524679504122,-121.752473551844,-121.7524871328634,-121.7525086411372,-121.7525379942209,-121.7525750793916,-121.7526197538693,-121.7526718434764,-121.752731148837,-121.7527974404971,-121.7528641811175,-121.752936328732,-121.7530136499618,-121.7530958959116,-121.7535316500558,-121.757011245924,-121.7569985152206,-121.7569968017477,-121.7569962290501,-121.7571950683995,-121.7572086830666,-121.7570503169079,-121.7560146407433,-121.7537109537098,-121.753361860312,-121.7533324705048,-121.7533263020419,-121.7526296594742,-121.7522084806377,-121.751514729102,-121.7512262392181,-121.750996946482,-121.7504809170385,-121.7501732726963,-121.7499684391418,-121.7505707033645,-121.7513539316096,-121.7514404289094,-121.7509230347844,-121.7508328299101,-121.7500597905248,-121.7499488920142,-121.7499492843192,-121.7499498909179,-121.749950314619,-121.7499498254142,-121.7499485605926,-121.749946549501,-121.7499453438061,-121.7499451305836,-121.7499429973108,-121.7499403280384,-121.7499388704356,-121.7499379893044,-121.7499369827843,-121.7499352418759,-121.7499334402793,-121.7499317682005,-121.7492748926687,-121.7492743100261,-121.7492737266902,-121.7493768088915,-121.7496538801101,-121.749929483946,-121.7499293348914,-121.7499293461934,-121.7499297281464,-121.7499296256921,-121.7499295897772,-121.7499502657043,-121.7499469063782,-121.7499253729623,-121.7484587736202,-121.7484738141344,-121.7481414132423,-121.7469371474361,-121.7459951734875,-121.7470731723842,-121.7466538770606,-121.7425473626685,-121.7425056997781,-121.7276782392445,-121.7276568025861,-121.7276349929055,-121.7228226632155,-121.7228239770927,-121.7228248041659,-121.7228257404668,-121.7228264928242,-121.7228272446158,-121.7228333689764,-121.7228322022434,-121.7228315238117,-121.7239596256719,-121.7239679678694,-121.7228345315007,-121.7228487996088,-121.7228211213289,-121.7228224117498,-121.7226842341866,-121.7226990702014,-121.7226694311884,-121.7226652676386,-121.7217790806902,-121.7208560086914,-121.7208558277705,-121.7208604512486,-121.7202713791824,-121.7178473946091,-121.7178319622552,-121.7178342730371,-121.7131754090196,-121.7127822225587,-121.712796471436,-121.7112477356578,-121.7112468402816,-121.7112464089202,-121.7112456028431,-121.7112445015187,-121.7107331730716,-121.7101240122188,-121.7099227998763,-121.7080036244352,-121.7054007518974,-121.7047702548591,-121.7036555200348,-121.7032655489558,-121.703263768583,-121.7031413277803,-121.69841575782,-121.6983231695922,-121.7030490273623,-121.7030281850668,-121.7080341534658,-121.7080842482709,-121.7180854607262,-121.7179961874261,-121.7229905011098,-121.7230255977434,-121.7276916724463,-121.7325929212505,-121.7351805525693,-121.7351673382224,-121.7423971021524,-121.7423471734908,-121.742399909551,-121.7349712922107,-121.7350310666991,-121.7374672766407,-121.7374976080219,-121.739975755461,-121.7399657996548,-121.744932884969,-121.7449326820613,-121.7474158527603,-121.7474164270578,-121.7556221858425,-121.7551600093884,-121.7548451377152,-121.7542720058532,-121.7539374462255,-121.7538071306498,-121.7532132586015,-121.7524127473335,-121.752403047693,-121.7524650309064,-121.7525421140674,-121.7525496373251,-121.7526267048491,-121.7526361021108,-121.7542728893184,-121.7543804114354,-121.7544989226813,-121.755325083515,-121.7555754443397,-121.7559044777856,-121.7560822992256,-121.7562389787672,-121.7563308609317,-121.7564338159013,-121.7565346864124,-121.756657753336,-121.7567545476478,-121.7568289513485,-121.7569255534625,-121.7570517836824,-121.7571092881765,-121.7572297642106,-121.7573415478048,-121.7573505870736,-121.7573687000062,-121.7563532088761,-121.7557097147577,-121.7559030732718,-121.7558396547869,-121.75450456123,-121.7545337190026,-121.7524632591393,-121.7524834802133,-121.7574033278228,-121.7574057103016,-121.7573982741449,-121.762298941446,-121.7623008833649,-121.7629857136391,-121.7627238042404,-121.7626389259773,-121.7625541039302,-121.7624421622544,-121.7623573404636,-121.7622636880852,-121.7621821586182,-121.7621227238042,-121.7620034561061,-121.7618629897859,-121.7620338009848,-121.7621258265749,-121.7622257579337,-121.7622876089314,-121.7623513612848,-121.7624185790392,-121.7624695823274,-121.7626010656162,-121.7626434651511,-121.7626911181041,-121.7627186928771,-121.7627740144763,-121.7628274321647,-121.7629068078394,-121.7629567613178,-121.7629938513175,-121.7630289889607,-121.7629871801527,-121.7630618939473,-121.7631273485758,-121.7631976459882,-121.7632681571991,-121.7633203637006,-121.7634791642467,-121.7635247183045,-121.7635622156416,-121.763621862672,-121.7636686208948,-121.7637487853381,-121.7638073289646,-121.7637784715421,-121.7637582858326,-121.7636988734312,-121.7636543416696,-121.7636115999792,-121.7635705885428,-121.7635481528931,-121.7634789961838,-121.7634282437296,-121.7633619828859,-121.7633157427406,-121.7632527165754,-121.7632124131784,-121.7631632215071,-121.7630900916979,-121.7630287185098,-121.7629175067941,-121.762830747207,-121.7628031318668,-121.7627202712154,-121.7626233485161,-121.7622997865077,-121.7622505164814,-121.762228707383,-121.762096426033,-121.7621082152286,-121.762699695728,-121.7633368391124,-121.763671066224,-121.7641719436602,-121.7647965965562,-121.766568911894,-121.7671061525045,-121.7671438935698,-121.7672909742143,-121.7673175632545,-121.7685904396779,-121.7703156674052,-121.7722253203571,-121.7722281105831,-121.7722150718976,-121.7721725681869,-121.7757966111318,-121.7771312335192,-121.7771851943507,-121.7795790530043,-121.7803204457171,-121.7803605733964,-121.7781317272144,-121.7781183208758,-121.7803881688606,-121.7803736870516,-121.7771237952897,-121.7770715596778,-121.7770476613506,-121.779096837361,-121.7790797475926,-121.7867876010575,-121.7867314403183,-121.7914680505405,-121.7915013825859,-121.7964748101224,-121.8062387319069,-121.8062424592276,-121.8094913915594,-121.8092695013512,-121.8088556107791,-121.8083119323743,-121.8082960319727,-121.8084842561331,-121.807537403738,-121.8071514036672,-121.806604937709,-121.8051665592568,-121.8058897604886,-121.8055050377103,-121.805390198182,-121.8052473375355,-121.8049972853465,-121.8047977761878,-121.8046950497605,-121.8041025957841,-121.8046207182535,-121.8050610725948,-121.8050829474791,-121.8051852259859,-121.8054193294827,-121.8055673588302,-121.8057211941662,-121.8059654721074,-121.8062770204653,-121.8065992941859,-121.8081164611542,-121.8082645316579,-121.8093971823129,-121.8095246170883,-121.809710657354,-121.8100785996278,-121.8106618340106,-121.8110111261341,-121.8112106824679,-121.8114470613416,-121.8117024325184,-121.8120382760787,-121.8122686709988,-121.8124801003472,-121.8126218826895,-121.8127087109012,-121.8127828621537,-121.8128399260146,-121.8128972740125,-121.8129599835487,-121.8129886248934,-121.8129990403294,-121.8129325235283,-121.8128953124432,-121.8128680187556,-121.8128564913016,-121.8128565104385,-121.8129077706742,-121.8129704671213,-121.8129875629112,-121.8129703996386,-121.8128274073303,-121.8127132018226,-121.8125999980762,-121.8124448718839,-121.8123485757839,-121.8122671819143,-121.8117583049628,-121.8114173763204,-121.811255103611,-121.8110924527766,-121.8110259701195,-121.8108116441448,-121.8106266297812,-121.8104420939583,-121.8100682869693,-121.8096617135528,-121.8094928563902,-121.8094232477115,-121.8093659147311,-121.8093183020749,-121.8092892714062,-121.8092894525946,-121.8093026039222,-121.8093240698924,-121.8093641278366,-121.8094520161472,-121.8096148708172,-121.8097541768003,-121.8099170312378,-121.810027443591,-121.810132131915,-121.8102366391934,-121.810352582686,-121.810498170559,-121.8107397326511,-121.8109836436574,-121.8112741699349,-121.8116112184226,-121.8118031443935,-121.8120704106861,-121.8122388778993,-121.8124017254525,-121.8125003149641,-121.8125989950913,-121.8126865122508,-121.8127443866765,-121.8127675491044,-121.8127907086827,-121.812790397638,-121.8127611964009,-121.8127781142521,-121.8127778669486,-121.8127381491747,-121.8127324881843,-121.8127579983209,-121.8126734650015,-121.8125930857382,-121.8127745271857,-121.8161535405526,-121.8160176609319,-121.8160433671175,-121.816121876366,-121.8162071857003,-121.8162350778875,-121.8164590119129,-121.816637895415,-121.8167087742185,-121.8168092115786,-121.8169050677143,-121.8170226007978,-121.8171724426281,-121.8172537496412,-121.8173518173929,-121.8174499998121,-121.8176117287975,-121.8176875281728,-121.8177373297267,-121.817765631958,-121.8184726594075,-121.8188823893508,-121.8192552118902,-121.8195274765146,-121.8202065151467,-121.820493217389,-121.8209551868234,-121.8209715913445,-121.8211414461889,-121.8214416973912,-121.8217010631694,-121.82184242181,-121.8221680331146,-121.8223435534519,-121.8223586487398,-121.8223930430204,-121.8226830083139,-121.8227162774389,-121.8227684257908,-121.8228000587177,-121.8228706015424,-121.8229926556187,-121.823359228784,-121.8237664231883,-121.8240686517505,-121.8248385474695,-121.8252236380137,-121.8258692105763,-121.8263225983119,-121.8265042749822,-121.8270210017826,-121.8273486897498,-121.8276652563028,-121.8279660772302,-121.8282655540631,-121.8285466351616,-121.8288123657661,-121.8290164573353,-121.8291129376859,-121.8293059139713,-121.8295157423728,-121.829730725417,-121.8299274227351,-121.8301244776653,-121.8304370871463,-121.8305808272201,-121.8306768523324,-121.8308063286568,-121.8308841455155,-121.8315021636924,-121.8408164696133,-121.8407145271605,-121.840714732639,-121.8408315206653,-121.8454170583517,-121.8454531928135,-121.852893094957,-121.8516804545031,-121.850254258802,-121.845767148128,-121.8405585776056,-121.8401757683098,-121.8407608379708,-121.84067023613,-121.8358717871174,-121.8359136330395,-121.8308551978597,-121.8320623756936,-121.8320896880356,-121.8309056633768,-121.8308649276778,-121.8308213040704,-121.8307039079541,-121.8296761784344,-121.8277647539765,-121.8260584220487,-121.8223904285583,-121.8225096593541,-121.8209554777922,-121.8208709701808,-121.7963521662085,-121.7963157568912,-121.7874610616016,-121.7869847785207,-121.7866092231673,-121.7863898695149,-121.7862467527261,-121.7862157938962,-121.7862041802963,-121.7861923811827,-121.7861967888954,-121.7861071445791,-121.7859036687249,-121.7856721140823,-121.7855236601527,-121.785161309349,-121.7843214997477,-121.7841680580805,-121.7839110392661,-121.7834664122943,-121.7823087133867,-121.7819451099069,-121.781826900009,-121.7816339573728,-121.7815549881343,-121.7813917012715,-121.7813419999685,-121.7806861471118,-121.7779789153575,-121.7778579790513,-121.7774418571005,-121.7774199331679,-121.7774347746625,-121.7775083698253,-121.7775308618343,-121.7774570525932,-121.7773756782374,-121.7772649647284,-121.7772303066258,-121.7781781209133,-121.7821397983956,-121.7823142161153,-121.7824225868952,-121.7828483093665,-121.7831793927697,-121.7866078563288,-121.7866133999452,-121.7863551263461,-121.7863573133323,-121.7845350252067,-121.784518200389,-121.7819587510077,-121.7819548530004,-121.7866209834718,-121.7866239064799,-121.7869559299708,-121.7873142056845,-121.7876501156767,-121.7880047070516,-121.7885750491488,-121.7886583724851,-121.7886744812896,-121.7887414014858,-121.7887900215539,-121.7888276455552,-121.789005191051,-121.7892437432341,-121.7892689560469,-121.7893585942612,-121.7894466416476,-121.7895130008549,-121.7901801489274,-121.7901284858333,-121.789689278849,-121.7895545499564,-121.789242684241,-121.788771952424,-121.7883473679088,-121.7878877806468,-121.7874337301719,-121.7871697821883,-121.7870997598285,-121.7870426371242,-121.7866274079626,-121.7866196203916,-121.7882530074281,-121.7883714091767,-121.7883799274323,-121.7889278251684,-121.789573093342,-121.7899348960492,-121.7905077008994,-121.7908969786501,-121.7908876451832,-121.7911022996568,-121.7911155065027,-121.7914753745553,-121.7914642543834,-121.7914619691717,-121.7914510870536,-121.7938981286476,-121.7941557864959,-121.7952466104532,-121.7954039710443,-121.7955602349604,-121.7959470647072,-121.7963403722692,-121.7963418765029,-121.7974406193336,-121.7993309833779,-121.7999462079202,-121.8001547821375,-121.8004400305555,-121.8010956818678,-121.8012745621287,-121.8013019017544,-121.8013494741337,-121.801347687134,-121.8021951203259,-121.8037698504215,-121.8037700299023,-121.8046354905701,-121.8054599115473,-121.806078266272,-121.8068571901145,-121.8073631766056,-121.8081766179008,-121.8092106698387,-121.8110842677618,-121.8110366362588,-121.8110426339392,-121.8159470151272,-121.8159447603144,-121.8168298001736,-121.8168324073494,-121.8196365997446,-121.8196417922874,-121.8209517446618,-121.8209580109713,-121.8210631721156,-121.8210636478299,-121.8217202552549,-121.8217247526448,-121.8210619280278,-121.8210589175409,-121.8209687746501,-121.8209747122115,-121.8209669313478,-121.8209449868893,-121.8209165796741,-121.8208763583582,-121.8208325787851,-121.8207367567672,-121.8198623378064,-121.8198262793669,-121.8195922138782,-121.819570098618,-121.8195474712419,-121.8195243412346,-121.8195007133382,-121.8194765970762,-121.8194519983814,-121.8194269243576,-121.8194013833574,-121.8193753837334,-121.8193489325895,-121.819322037088,-121.8192947055623,-121.8192669475943,-121.8192387715176,-121.8192101844945,-121.8191811960684,-121.8191518158216,-121.8191220509167,-121.8190919109358,-121.8190614054226,-121.8190305427884,-121.8189993338062,-121.8189677868485,-121.8189359115172,-121.818903718605,-121.8188712152938,-121.8188384147961,-121.8188053243136,-121.8187719546582,-121.8187383166227,-121.8187044198285,-121.8186750948986,-121.8185158095588,-121.8183764105768,-121.8180692063964,-121.8172676177172,-121.816700279874,-121.8159726705236,-121.8159699289185,-121.815989285365,-121.8162682089412,-121.8183029462385,-121.818346596794,-121.8183827410408,-121.8184187179961,-121.8184545131593,-121.8184901072681,-121.8185254858609,-121.8185606320563,-121.8185955302023,-121.8186301646662,-121.8186645186058,-121.8186985775595,-121.8187323235334,-121.8187657432761,-121.8187988211746,-121.8188315416355,-121.8188638902558,-121.8188958514422,-121.8189274107723,-121.8189585538824,-121.8189892664084,-121.8190195339672,-121.8190493446147,-121.8190786827579,-121.819107534072,-121.8191358890136,-121.8191637308382,-121.8191910487924,-121.8192178285908,-121.8192440607094,-121.8192697308043,-121.8192948294101,-121.8193193421831,-121.8193432596582,-121.8193665711599,-121.8193892647841,-121.8194113310657,-121.8194327593297,-121.819453540111,-121.8194736639448,-121.8194931201952,-121.819511903027,-121.819530001785,-121.8195474082143,-121.8195641141185,-121.8195801124527,-121.819595396211,-121.8196099583875,-121.819620832588,-121.8181756328417,-121.8159557390842,-121.8159467878264,-121.8159446551452,-121.81594214701,-121.8135471112142,-121.8135563522303,-121.8099377340123,-121.8099404995477,-121.8092680849992,-121.80859567052,-121.8085929409227,-121.8084209327641,-121.8084209390353,-121.8080433557023,-121.8080397713208,-121.8072941875445,-121.8072859785435,-121.8061050908565,-121.8060309636419,-121.8019984745332,-121.8020018263076,-121.8020050041164,-121.8020081236762,-121.8020111849872,-121.8020141880493,-121.8020171328628,-121.8020200194466,-121.8020228478009,-121.8020256179065,-121.8020283298019,-121.8020309834678,-121.8020329670937,-121.8021521886803,-121.8022589260887,-121.8022659789669,-121.8023173347226,-121.8023511021812,-121.8023527818488,-121.802120576242,-121.802139281353,-121.8021530650351,-121.8021628723634,-121.8021644788301,-121.8021606662312,-121.8021523276417,-121.8021402725234,-121.8021167238376,-121.8020915479316,-121.8020563905976,-121.8020280770248,-121.8019689396517,-121.8019154150802,-121.8018029557226,-121.8017828752794,-121.8017633719847,-121.8017069605034,-121.8016874573443,-121.8016861646722,-121.8010274169353,-121.801056985341,-121.8012351765665,-121.8013034498498,-121.8014067071944,-121.8015088503483,-121.8015441065684,-121.8015437621176,-121.8015441114013,-121.8015443566209,-121.8015444977956,-121.8015445349061,-121.8015444691622,-121.8015442993348,-121.8015440254048,-121.8015436486008,-121.8015431676748,-121.8015425826267,-121.8015418934563,-121.8015411013544,-121.8015402051109,-121.8015392059165,-121.8015381025612,-121.8015368962356,-121.80153558573,-121.8015341722539,-121.8015326545592,-121.8015310338555,-121.8015293101429,-121.8015274834212,-121.8015255524614,-121.801523519664,-121.801521382609,-121.8015191424873,-121.8015167993178,-121.8015143542719,-121.8015118061398,-121.8015091549214,-121.8015064005783,-121.8015035443587,-121.8015005849949,-121.8014975237161,-121.8014943605221,-121.8014910941647,-121.8014877270634,-121.8014842567987,-121.8014806845801,-121.8014770115792,-121.8014732365859,-121.8014693596196,-121.8014653818515,-121.8014613032624,-121.8014571226808,-121.8014528412589,-121.8014484590158,-121.8014439759324,-121.8014393919892,-121.8014347072056,-121.8014211687437,-121.801343646739,-121.801318410982,-121.8011786085278,-121.8011186291057,-121.8010318014633,-121.8009404224854,-121.8009273091665,-121.8009191439579,-121.8009148826852,-121.8009133308762,-121.7999181093043,-121.7974739998684,-121.7972823250407,-121.7967329981638,-121.7960987287905,-121.7954059341383,-121.7912451917451,-121.7912364089087,-121.790860382919,-121.79055531795,-121.7902374171345,-121.7899713812532,-121.7897349335605,-121.7895584345878,-121.7894083333402,-121.7892100734896,-121.7890959876026,-121.7889985239932,-121.7875705456419,-121.787545534237,-121.7868141481862,-121.7867728973105,-121.7860674207411,-121.7858933248039,-121.7854415304654,-121.7853235904314,-121.785158252841,-121.7850571123788,-121.7849444959215,-121.7848294571263,-121.7821888216689,-121.781120247438,-121.7808610481387,-121.7808147177928,-121.7805183011178,-121.7800656683102,-121.7797055843308,-121.7792021891129,-121.7783769213898,-121.7778261218851,-121.7781386662095,-121.7790466566665,-121.7795833366691,-121.7801575505855,-121.7807067466276,-121.7821140383353,-121.7852707953581,-121.7862711394094,-121.7863566117156,-121.7867597838055,-121.7860035114721,-121.7842175482856,-121.7852485739479,-121.7865084881476,-121.7864732938224,-121.7815753126079,-121.781570224089,-121.7815646349875,-121.7809001382498,-121.7802281827249,-121.7796076324449,-121.7792624543106,-121.778601284141,-121.7786127896725,-121.7770941917404,-121.7770633711448,-121.7769728310813,-121.7769264589077,-121.7769195622674,-121.7769727260479,-121.7770068322569,-121.7769924409142,-121.7769409303698,-121.7768968114457,-121.7768306819787,-121.7767347104122,-121.776683633404,-121.7767945003173,-121.7768091732108,-121.7767870697941,-121.7768166408842,-121.7769350631355,-121.7770163020435,-121.7771569437247,-121.7773120822127,-121.7774818950935,-121.7774989633335,-121.7775760702888,-121.7734587772657,-121.7728192780569,-121.7722941800266,-121.7719759233435,-121.7713995857739,-121.7713601166317,-121.7704963380481,-121.7703228122472,-121.7696976611943,-121.7694848077505,-121.7694661983315,-121.7693164254427,-121.7688488251428,-121.768491394419,-121.7680648467121,-121.7678797475052,-121.7674737956653,-121.7672475661361,-121.7671185689157,-121.7669295321672,-121.766926251659,-121.7669271978816,-121.7667703885807,-121.766759255609,-121.7667510064599,-121.7660606906776,-121.7652899624123,-121.7645453714317,-121.7637484936962,-121.7637222889388,-121.7629141800647,-121.7628852961813,-121.7623566510275,-121.7623248670485,-121.7620086779078,-121.7615163017795,-121.7610320053638,-121.7598520040661,-121.7596909755373,-121.7596706841153,-121.7596024367075,-121.7595433543132,-121.7595519768968,-121.7583737424573,-121.7578949182189,-121.7578257086186,-121.7574927849856,-121.7574558935086,-121.756698341118,-121.7563489055235,-121.7547111965731,-121.753229605438,-121.753223968678,-121.7525602379973,-121.751759369788,-121.7517643441876,-121.751130107853,-121.7509992263334,-121.7507410168574,-121.7503957843073,-121.7497961799771,-121.7476535119152,-121.7474282965307,-121.7473172547093,-121.7470908308017,-121.7470909747863,-121.7452908977151,-121.7449250755859,-121.7434906882758,-121.74135883793,-121.7408392266755,-121.7410714889842,-121.7400085749844,-121.7396084402086,-121.7472466854783,-121.7572556293952,-121.7572494476033,-121.7583043362487,-121.7584656277346,-121.7594520650315,-121.7591454610126,-121.7599163816766,-121.7599559256695,-121.7607246407878,-121.7608276892211,-121.7625646622855,-121.7628260440196,-121.7628483672124,-121.7624770144598,-121.7623088187852,-121.7599022743879,-121.759904242326,-121.7598121070931,-121.7598073416536,-121.7598023183968,-121.759797038588,-121.7597915023014,-121.7597857108027,-121.7597796665665,-121.7597733696303,-121.7597668225059,-121.7597600252121,-121.7597529790328,-121.7597456864429,-121.7597381499171,-121.7597303695114,-121.7597223464724,-121.7597140832938,-121.75970558245,-121.7596968439786,-121.7596878715824,-121.75967866528,-121.759669228793,-121.7596595621399,-121.7596496702333,-121.7596395518821,-121.7596292120174,-121.7596186506764,-121.7596078715063,-121.7595968758094,-121.7595856660234,-121.7595742458327,-121.7595626165024,-121.7595507804888,-121.7595387402481,-121.7595264982735,-121.7595140570027,-121.7595014201385,-121.7594885901001,-121.7594755681897,-121.7594623592453,-121.7594489633413,-121.7594353853343,-121.7594216276803,-121.7594076940823,-121.7593935857682,-121.7593793064037,-121.7593648596545,-121.7593502479952,-121.7593354738448,-121.7593205409061,-121.7593054540357,-121.7592902132705,-121.7592748234858,-121.7592592883471,-121.759243610292,-121.7592277929861,-121.7592118400948,-121.7592037970935,-121.7588810791122,-121.7574138028131,-121.7573991162218,-121.7571177074756,-121.7537738367072,-121.7535858051627,-121.7523505939989,-121.7526344946742,-121.7408974834269,-121.7375994709255,-121.7351875521756,-121.7338331340777,-121.7338657885307,-121.7333236004771,-121.7327262458891,-121.73273226859,-121.7314037482776,-121.7294981527629,-121.7218999642958,-121.7221053114728,-121.7236919704812,-121.7238665153078,-121.7245879478557,-121.7257833182704,-121.7276338582282,-121.7270443429033,-121.7270084726058,-121.7228728461652,-121.7226357230921,-121.7226598065848,-121.7246424180031,-121.724651689659,-121.7265121794454,-121.7274813138995,-121.7275474544402,-121.7334354244134,-121.7374777691626,-121.7374925054003,-121.7288856257619,-121.7276537149983,-121.7258929918372,-121.7258967525766,-121.7255917930623,-121.7247626146669,-121.7243466747203,-121.7243422852841,-121.7242881231856,-121.7242935336182,-121.7246126981204,-121.7228544112118,-121.722855253581,-121.7226572169057,-121.7226589990929,-121.7226572975139,-121.7226258979445,-121.7226269546051,-121.7210243499239,-121.7209929139692,-121.7189675577696,-121.7189669460578,-121.7177346976223,-121.7176407159935,-121.7177280695997,-121.7143168852727,-121.7143293591258,-121.7177589716813,-121.7178007439114,-121.7207287796278,-121.7225565388318,-121.7226605041452,-121.7226614092461,-121.7227827931749,-121.7233898943805,-121.7234937846355,-121.7234927112035,-121.7238065135553,-121.7246608186763,-121.7252464354022,-121.7254872937503,-121.7255423746554,-121.7276607793716,-121.7276623972114,-121.7278413933653,-121.7279032301501,-121.7279612944831,-121.7283618675268,-121.728548855235,-121.7290093893073,-121.7299025689391,-121.7314014942201,-121.731649463688,-121.7326136198671,-121.7326301977062,-121.7326135148753,-121.7326176012658,-121.7359826836329,-121.7359708825129,-121.7377165374828,-121.7377163068078,-121.7389404751051,-121.7396552181372,-121.7407526655373,-121.740586229724,-121.7431349533131,-121.745274199556,-121.7472765475656,-121.7472862179431,-121.7533879367497,-121.7534356937054,-121.7562706449472,-121.7567245941898,-121.757391549043,-121.7595661117995,-121.7595711488266,-121.7610361779242,-121.7634392267856,-121.7664717547936,-121.7664935466434,-121.7669506308831,-121.7698731394008,-121.7704650420701,-121.7710117957129,-121.7710198701272,-121.7710409378425,-121.7710890456409,-121.7711000491817,-121.7727865644024,-121.7727477961575,-121.7727066717873,-121.7725432870003,-121.7726052220519,-121.7726191057239,-121.7726397515811,-121.7726191504026,-121.772578608921,-121.7727808209567,-121.7728607498855,-121.7730019884792,-121.7731488276586,-121.7733816522607,-121.7733946701105,-121.7733208638334,-121.7732894585341,-121.7733450437929,-121.7733436338656,-121.7734155150468,-121.773419416942,-121.7734897211931,-121.7734607112815,-121.773479047654,-121.7733531303419,-121.7733472220603,-121.7732513481611,-121.7731590649522,-121.7731664071609,-121.7732547489718,-121.7733874699038,-121.7735125130773,-121.7736303884007,-121.7736819251845,-121.7736746095639,-121.773748133602,-121.7740209057722,-121.7742351762462,-121.7744195252338,-121.7745815306232,-121.7746773433351,-121.7748987734313,-121.7752898351853,-121.7754077152252,-121.7756510860334,-121.775709887952,-121.775813203863,-121.7758426852873,-121.7759087980751,-121.775925272749,-121.7702354159947,-121.7693744207187,-121.7687676105644,-121.7680707484579,-121.7678649162806,-121.7671786124029,-121.766825933003,-121.7649000706274,-121.7620713720966,-121.7596225317233,-121.7596232089923,-121.7596181234775,-121.7595850612893,-121.7588891520119,-121.7581251857229,-121.7573651499023,-121.7573689900784,-121.7579836666524,-121.7579755032015,-121.7573756264251,-121.7573628385159,-121.7583963821413,-121.7589094566636,-121.7589093574825,-121.7589093127467,-121.7587394417469,-121.7587393680732,-121.7582852702031,-121.7582852140373],"lat":[42.20702083540555,42.20702059307818,42.20662633234793,42.20647067877788,42.2059918521101,42.20551165208008,42.20550878532402,42.20551218642346,42.20551317229922,42.20534942513087,42.20534941558406,42.20534783549297,42.20534654413581,42.20530515571507,42.20527396854919,42.20522443318031,42.20517867166261,42.20511430055941,42.20507708723667,42.20504128641021,42.20499667579363,42.20494293091731,42.20486370494403,42.20483405172568,42.20481040731008,42.20465676731354,42.20242130472313,42.2018267735151,42.20065615797934,42.20065634694325,42.2018235905261,42.20418881041979,42.20480457587867,42.20488922969282,42.20498396099507,42.20511003027324,42.20534328640655,42.20547749217063,42.20547888748806,42.20418755236095,42.20182808976401,42.1975990013883,42.19714586841306,42.19714710102649,42.19760056096357,42.19760082993972,42.197600797984,42.19760025191854,42.19714801110389,42.19714765219638,42.19714724936011,42.19672718122048,42.19627448431985,42.19581613057223,42.19581365727151,42.19673080635063,42.19673476025778,42.19628082857103,42.1962691196325,42.19572238178531,42.19455945541883,42.19398865399172,42.19220492193391,42.19210987002437,42.19213075804636,42.19229745170804,42.19310051316013,42.1930963958615,42.19379035838476,42.19429863499291,42.19430675823769,42.19461183052007,42.1946090653729,42.19460541891151,42.19460178281079,42.19459957343799,42.19514858333643,42.19514704307016,42.19562602479585,42.19565416798029,42.19565462860071,42.19566231230901,42.19567429586166,42.19627402396411,42.1962711737728,42.19626858219544,42.1962659470646,42.19626328205665,42.19626060610913,42.19625793624986,42.19625532874307,42.19624785817143,42.19679210448729,42.196798816245,42.19679997080213,42.19680405730335,42.19680452225965,42.197478917418,42.19748203436535,42.19733067485928,42.19733138271459,42.19777055107555,42.19776581846041,42.19932438736246,42.19948643058915,42.20301177169298,42.2042140279946,42.20465765552193,42.2053293875682,42.20533426923023,42.20533848823059,42.20535358032537,42.20535592610857,42.20536786428049,42.20550516410161,42.20550463570231,42.20550122452578,42.20549756355827,42.20619499289834,42.20619241670172,42.205495022325,42.20549348616569,42.2061923665826,42.20619220598726,42.20619201884862,42.20619164683141,42.20619150914401,42.20662426910585,42.20671996291529,42.20681521431158,42.20690965397514,42.20700292012634,42.20709465042727,42.2071844927798,42.20727209904053,42.20735713215095,42.20743926439307,42.20751147141812,42.20758074417416,42.20764685939196,42.20770960477857,42.20784654197276,42.20893472127436,42.20783472963435,42.20746496228051,42.20728149653505,42.2072811599055,42.20932436187108,42.2092716113299,42.20891150632038,42.20819213267954,42.20857692009997,42.20860942422206,42.20860634143853,42.20825839339373,42.20872294148722,42.20837586629249,42.20823129083968,42.20846830316116,42.20821243373042,42.20855482185486,42.20878279785374,42.20908181432753,42.20947056187565,42.20951683759129,42.21009203950046,42.21005018668863,42.20966755264811,42.20961256708917,42.20977052360602,42.20997015614171,42.21016990236827,42.21036917203072,42.21066641481716,42.21096700338887,42.21114707285125,42.21116716476968,42.21136702824406,42.21161715622547,42.2117667788641,42.21185717768528,42.21196669631168,42.21216644921055,42.21237334813254,42.21256517194374,42.21256361603675,42.21276339815115,42.21296326489325,42.21296339660598,42.2129637484419,42.21296409909021,42.21299022138454,42.21319424857318,42.21340088526609,42.21367425734189,42.21376708844769,42.21381842064952,42.21391237481009,42.21578500821861,42.21580360110976,42.21648116538359,42.21668111253213,42.21588366203208,42.21637289781589,42.21732123345031,42.21756297353277,42.21761215323799,42.21753356616076,42.21750007878452,42.22116753491328,42.22483500186658,42.22486778975864,42.22484071947254,42.22454342389836,42.22427272837285,42.2239960569316,42.2237193576287,42.22146618990144,42.2212188350055,42.22119053848148,42.22119432925398,42.21964708866884,42.21964606103995,42.22037234832928,42.22037291577372,42.22119034145384,42.22118998379267,42.22036184840396,42.22035659544589,42.22023859590291,42.22023247275931,42.22022807236052,42.21974821842691,42.21932512739586,42.21931414344866,42.21930075316462,42.22021029076399,42.22117732922865,42.22119970137261,42.22120028963787,42.21984722961657,42.21984832583404,42.22018180272281,42.22045734000084,42.22097198283875,42.22119998105402,42.22120058850581,42.2212013312736,42.22120157624688,42.21961855312583,42.21751695367378,42.21584135744833,42.21451258946799,42.21391332651342,42.21382836777313,42.2138288494148,42.21387357658389,42.22594530128182,42.22612848205362,42.23495604212481,42.23500593573277,42.24236427473168,42.24241934165858,42.24980092094994,42.24977840405148,42.25385286280546,42.2538670401393,42.25388216163505,42.25389002985224,42.24574333774499,42.24873699806167,42.24314941698532,42.2358228085527,42.23585946308511,42.22850894515506,42.22851103419144,42.22117979308084,42.2192278578263,42.22484074197269,42.22483150725009,42.22474921064858,42.2247445136942,42.22482680613456,42.22481064463104,42.22455610734398,42.22435695422875,42.22394730570536,42.22366991603941,42.22354986665712,42.22302760952488,42.2223276313886,42.22138929362323,42.22144220295996,42.22151158171301,42.22151848784301,42.22158709539171,42.22159539511296,42.22302962419239,42.2229603337086,42.22288676375952,42.22284342819255,42.22317230576459,42.22355973822096,42.22377236507548,42.2239435065935,42.22401400429667,42.22408437777587,42.22414289803744,42.22420352827251,42.22424296900685,42.22427073989001,42.22430066301172,42.22433505865025,42.22434873903779,42.22437243646389,42.22440428080691,42.2248071688518,42.22597254076772,42.22587499519845,42.22560589579397,42.22530724980889,42.22528072863711,42.22497044317426,42.22692420655006,42.22691443569433,42.22826932450594,42.22829269044576,42.22844937653051,42.23027376101172,42.23024365705453,42.23206821228879,42.23245919778366,42.23265457484963,42.23274822997833,42.23284467271677,42.23296954698774,42.23306603187604,42.23318229692456,42.23325910613836,42.23333283764934,42.23346066720001,42.23363581434286,42.23404652694123,42.23403203264854,42.23395218709292,42.23390647128914,42.2338635643438,42.23380938348668,42.23377510951867,42.23370331480207,42.23370000948872,42.23368258101952,42.23367661180146,42.23367316233646,42.23366690308787,42.23366597140706,42.23367098507264,42.23367897369916,42.2336817536133,42.23371610903467,42.23374622515151,42.23377644798693,42.23381693884772,42.23386775065855,42.23392909609034,42.23426017447286,42.23432074807148,42.23434884951424,42.23437697210715,42.23438878219625,42.23439980690964,42.23439319064146,42.23450236421521,42.23449887076966,42.23448272777517,42.23447199297737,42.2344584511678,42.23443927241205,42.23442550192273,42.23438417018233,42.23433984500456,42.23425920330283,42.23416431632634,42.23406112672244,42.23398581066172,42.23392740353243,42.23387213760316,42.23385039954221,42.2338292636089,42.23383027880154,42.23383423242571,42.23384696736083,42.23389307615713,42.23414277034523,42.23417145049572,42.23418858889484,42.23422111552034,42.23425618672639,42.2357289839821,42.23572665098475,42.23572542329195,42.2357235829073,42.23572236726003,42.23569751649448,42.23569383554689,42.23800880680164,42.23796928207947,42.23796138343965,42.23758349970892,42.23706996878749,42.24052091030139,42.24092831743108,42.24658889503634,42.25022667518302,42.25020994344704,42.25020434605663,42.25366246883289,42.25367400563326,42.25366898540659,42.25695258428868,42.25696192405702,42.2576262446408,42.25761615588082,42.25900199178037,42.25907169242965,42.2608979980561,42.26173197972843,42.26174092895351,42.26090851804462,42.26088252259547,42.26451437166013,42.26454290824766,42.26843057816586,42.26837924559212,42.26829632944471,42.264730019845,42.26475714175015,42.26415897107206,42.26394165976028,42.2633728107063,42.26295874945141,42.26271153833027,42.26182072258923,42.26161130551998,42.26115194324016,42.2603119102883,42.25974673794737,42.25949258299743,42.25942425812101,42.25932361817316,42.2591323401116,42.25893854498592,42.25881493455457,42.25782635972426,42.25772258054102,42.25767787701662,42.25764744167019,42.25754308306396,42.25736913218419,42.25728014485544,42.25718642464732,42.25707380360191,42.25699851949464,42.25694121409185,42.25680859295142,42.25741038091323,42.25725650692129,42.2577737680586,42.25773535062865,42.25770657372989,42.25759156977882,42.25755423180362,42.25754335970107,42.25751037784313,42.25746756826531,42.25740597084415,42.25736949224127,42.25732692810502,42.25727421733333,42.25724191177006,42.25716970335264,42.25711004303798,42.2570292550143,42.25690588194028,42.25681254072495,42.25674739967219,42.25665957857631,42.25656071123832,42.25651083129674,42.25643854348663,42.25633649048778,42.2562302618305,42.25617492321295,42.2561113490105,42.25605174695651,42.25599665854956,42.25602654604744,42.25601719172496,42.25605030833873,42.25608876189994,42.25611606404975,42.25613335349771,42.2561985773763,42.2562257413465,42.25626964518493,42.25628634507233,42.25629711755451,42.25629711756552,42.25631933214663,42.25638411815208,42.25643639701424,42.25644937144612,42.25644086896941,42.25641932682185,42.256386147882,42.25634122627518,42.25628087006336,42.25622255452203,42.2561731941197,42.25614693204916,42.25611242126774,42.25609512935519,42.2560646730801,42.25604737982279,42.25604716819563,42.25600395399999,42.25596952008417,42.25591739310126,42.25588713591265,42.25587219955492,42.25584626223525,42.25580715160207,42.25571618763261,42.25565986488172,42.25562102824328,42.25553864764141,42.25548678417506,42.25543486100775,42.25537004248906,42.25533553442025,42.25529643980801,42.25524020014908,42.25513238467782,42.25491209636472,42.25472205288374,42.25427276337899,42.25390104023932,42.25371990090001,42.25364562276554,42.25354408972473,42.2533739080932,42.25327665075712,42.25275078642878,42.25269193862785,42.23555114507199,42.23555441653961,42.23554902783055,42.23556174351792,42.23556652257871,42.23559546672747,42.23559808900882,42.23561127150774,42.23561844484171,42.23563670008358,42.23565559777428,42.2356848477116,42.23569790823097,42.23570689682398,42.23572125005041,42.23574350467198,42.23576169603398,42.23577781231723,42.23577952773967,42.23582237495346,42.2358501146401,42.23587675176658,42.23585269824513,42.23579168354193,42.2357674577995,42.23572262628149,42.23570446425711,42.23567542898557,42.23565340407231,42.2356332949684,42.23520427399473,42.23423775389556,42.23371891819533,42.23367638123171,42.23357342342362,42.23272181237176,42.23256203443675,42.23227481137825,42.23210058746722,42.23171203639072,42.23172124838135,42.23176206792368,42.23181787131465,42.23187085145715,42.23204265295298,42.23215400336481,42.23236820442494,42.23256027303795,42.23263642377847,42.23287791933812,42.23305172958036,42.23323270462926,42.23342228534516,42.23362886987157,42.2338468291715,42.23406278352346,42.23424673231957,42.234333533456,42.23452993627101,42.2347582983579,42.23501787028462,42.235301604211,42.23555332594575,42.23604449857394,42.23631907852418,42.23653257327774,42.23688458610045,42.23711092959623,42.23894763995784,42.23909570040755,42.24283496682048,42.2429149162212,42.24291600295231,42.24289929887685,42.23552503784631,42.23545892064424,42.23405723587726,42.23243304836394,42.22727323288239,42.22126005591033,42.22083516597161,42.22055475623408,42.21053445078231,42.21059507098181,42.21308002055167,42.21312321421657,42.21372022422363,42.21373849505902,42.21373986111693,42.21371930274316,42.21369728598599,42.2136394634438,42.21313324902334,42.2131494899181,42.21157282829252,42.20954917132984,42.20931264162105,42.20848054088529,42.20955446327624,42.20982526233411,42.21368799200837,42.21373204436335,42.21282846490139,42.21206361795746,42.21154851271434,42.21109616331336,42.21092287239216,42.21075703794764,42.21045980175738,42.2102136769187,42.21016232375985,42.21005002282153,42.20990101478429,42.20979054226886,42.20949327142571,42.20884657000705,42.20872682675621,42.20848950230558,42.20792872924618,42.20628769771407,42.2058411958917,42.20565904207217,42.20541465984694,42.2053264193928,42.20515877929171,42.20511134843369,42.20473352461902,42.20469548449875,42.20440006076468,42.20339891148171,42.20325047858095,42.20311341702882,42.20299817105048,42.20283880017944,42.20276750513828,42.20274019105577,42.20266850018887,42.20261677864907,42.20261431536873,42.20474573357242,42.20509183267367,42.20527986129412,42.2059080678825,42.20636948382548,42.20636223544955,42.20515484650358,42.20515538675458,42.2046988773405,42.20470280777651,42.20209742589648,42.20209864113202,42.20050757974108,42.2004043087362,42.1998313243252,42.20009213803466,42.20037288999426,42.20064287543527,42.20092362416217,42.20137466348717,42.20129901468081,42.20127486068063,42.20120909027463,42.20115077597213,42.20109618922041,42.20084738791834,42.20051470228241,42.20048461240433,42.2003574787495,42.20024266970643,42.20014997740847,42.19921657645234,42.19921691102286,42.19921649526631,42.19921572253736,42.19921577701338,42.19920795755839,42.19920072357146,42.1991963326226,42.19919200480542,42.199189061906,42.19919402102906,42.19919806111593,42.19919706026722,42.19890947308608,42.19892120188786,42.19884643919401,42.19845549782995,42.19844725619713,42.19797261646516,42.19771102596309,42.19730221478758,42.19729818245197,42.19702600684157,42.19687685705436,42.19715786342635,42.19715939762045,42.19662323578874,42.19642413123686,42.1953655707208,42.19537667384883,42.19516643498237,42.1943815123069,42.19449500376756,42.19460070643997,42.19487831273229,42.19515717462655,42.19534628450264,42.19537141315107,42.19345093558292,42.19278079520841,42.19260729949123,42.19248282840429,42.19224726651005,42.19215416713015,42.19213798637522,42.19203045274876,42.19194497202387,42.19179260310057,42.19324157929387,42.19325015355288,42.19404578814947,42.19473117737701,42.19544446427013,42.19545735799678,42.19626653538615,42.19739257597232,42.19910776165926,42.19911771371748,42.195451255133,42.19177583676628,42.19177628367233,42.19129513704642,42.19129775122556,42.19177779657647,42.19178628459882,42.1914633371769,42.19144602470946,42.19105365842202,42.19105328659535,42.19091782258216,42.19091456789674,42.19069262750844,42.19069196950883,42.19040697105578,42.19040885524667,42.19005243040559,42.18902790327599,42.18871268716858,42.18847381160431,42.18835386251476,42.1882740082388,42.18814155601564,42.18718448118597,42.1872270759954,42.1875343902723,42.18755635254862,42.18757802663239,42.18759940340946,42.18762047832286,42.18764124405806,42.18766169514367,42.18768182429424,42.18770162600942,42.18772109478885,42.18774022334707,42.18775900709799,42.18777743964149,42.18779551636257,42.18781323086109,42.18783057855099,42.18784755301773,42.18786414964625,42.18788036385055,42.18789619101567,42.18791162472705,42.18792666218371,42.18794129785662,42.18795552714513,42.18796934633418,42.1879827507944,42.18799573683954,42.18800829981139,42.18802043692348,42.18803214444639,42.18804341775062,42.18805425402105,42.18805638818212,42.18809875613313,42.18814645214184,42.18823516256487,42.18842249538199,42.18855929640713,42.18872543717662,42.18855736594185,42.18855286995601,42.18848310168129,42.18797411245941,42.18796756007478,42.18796205045063,42.1879559676936,42.18794931287705,42.1879420907313,42.18793430412953,42.18792595597347,42.18791705005054,42.18790759104779,42.18789758366689,42.18788703078084,42.18787593980515,42.18786431359851,42.18785215774788,42.18783947874009,42.18782628214772,42.18781257445758,42.18779836034251,42.18778364717473,42.18776844232634,42.18775275226996,42.18773658434876,42.18771994504966,42.18770284354464,42.18768528624819,42.18766728236117,42.18764883831269,42.18762996507419,42.18761066996015,42.18759096124266,42.18757084893553,42.18755034131094,42.18752944838263,42.18750818017904,42.18748654584303,42.18746455538853,42.18744221884381,42.18741954622276,42.18739654753911,42.18737323462085,42.18734961743843,42.18732570691985,42.18730151306453,42.18727704857114,42.18725232342462,42.18722734940941,42.18720213830994,42.18718222566815,42.18741900499361,42.18672304350726,42.18525016180969,42.18489921137074,42.18448648124786,42.18447249625018,42.18814725176941,42.18812465815179,42.1876721703664,42.18766989879902,42.1876676240359,42.18811350143657,42.18811249280063,42.18724000574716,42.18708351323666,42.18630810382373,42.18629828204651,42.18810457773697,42.18810181612272,42.186678615039,42.18667491266175,42.18666092992134,42.18664741544642,42.18663389355824,42.1866203642568,42.1866068275422,42.18659328341432,42.18657973277301,42.18656617561834,42.1865526110504,42.1865390408689,42.18652546417395,42.18650816117319,42.18603335373071,42.185490942266,42.18543403232803,42.18501966750359,42.18444920460202,42.18442083578233,42.18441673135393,42.18418503317443,42.18403341791652,42.18379142134074,42.1836905032678,42.18350809785215,42.18328704386789,42.18306603284753,42.18282856907421,42.18260218042153,42.18234273552162,42.18214402727266,42.18189315268825,42.18168909507021,42.18124267830328,42.18117103650229,42.18112703213271,42.18091759130151,42.18087358692349,42.18077173745992,42.18077163599911,42.18082144760253,42.18140579280734,42.18169434840064,42.18216767965221,42.18283584970069,42.18325915756422,42.18327161076976,42.18328532843066,42.18329904641866,42.18331276563347,42.18332648517547,42.18334020503025,42.18335392431231,42.18336764212189,42.18338135934447,42.18339507419475,42.18340878667272,42.18342249677839,42.18343620359768,42.18344990714481,42.1834636065058,42.18347730169485,42.18349099179791,42.18350467682924,42.18351835677461,42.18353202984866,42.18354569603703,42.18355935533985,42.18357300775705,42.18358665240311,42.18360028834967,42.18361391562528,42.18362753331581,42.18364114232119,42.18365474082744,42.18366832884879,42.18368190638532,42.18369547163739,42.18370902639033,42.18372256795897,42.18373609722889,42.18374961420002,42.18376311708706,42.18377660586147,42.18379008055174,42.18380354114368,42.18381698582326,42.18383041460486,42.18384382838825,42.18385722535953,42.18387060461889,42.18388396798019,42.18389731272977,42.18391063976743,42.18392394819334,42.18393723710766,42.18395050741015,42.18397688025945,42.18442298447649,42.18506946513494,42.18597240068458,42.18615609733163,42.18442054202725,42.18355999261286,42.18243555914518,42.18171823251324,42.18134390962155,42.18077295365826,42.18077516095001,42.1818140661888,42.18155434562002,42.18201254015189,42.18258286338442,42.18285571086294,42.18446650540304,42.18447739852303,42.18447868145468,42.18455285802426,42.18470336176286,42.1848639048774,42.18502788174725,42.18514674793231,42.18529305591811,42.18551941173885,42.18571225831421,42.18581688386187,42.18796015163741,42.18799975822081,42.18903489998622,42.18909227227869,42.19004311336266,42.19027939265941,42.19091748881564,42.19110347157945,42.19122795015649,42.19133394353813,42.19150970355512,42.19165757646901,42.19083965612125,42.19055843957658,42.19051542176181,42.19059531802698,42.19053698617187,42.19050877254541,42.19049472709797,42.19051030940805,42.19057563803807,42.19061893740213,42.19092368997571,42.19084318711261,42.19083104485461,42.19084960198883,42.19090776213533,42.19141946011132,42.19238967447928,42.19267043070815,42.19269921220046,42.19363687370314,42.19418561777709,42.19419575037352,42.19730292582434,42.19731085817324,42.20026786166138,42.20035364463936,42.19996136793858,42.1998691556369,42.19986153537008,42.19985009506998,42.19984405453082,42.20036022322584,42.20132359061626,42.20244359661238,42.20244196008966,42.2024148836958,42.20240797457272,42.20232538964868,42.20224262181127,42.2021736993503,42.20207564375553,42.20182864088962,42.20148275915536,42.20129617789073,42.20069232204533,42.20039029896704,42.19958875379691,42.19938584054561,42.19927593957827,42.19917167595125,42.19905090409146,42.19889179586759,42.1985954053943,42.19845798620569,42.19816704898924,42.19776648596351,42.19766533610658,42.19750670527533,42.19603809347844,42.19624245446651,42.19601100999248,42.19605872695366,42.19619000347379,42.19463795078521,42.19462761761941,42.19453352690118,42.19419021202859,42.19406770496332,42.19405993933486,42.19395417247141,42.19364518194921,42.19339986675087,42.19311283716088,42.19299374344788,42.1927211878321,42.19257554392161,42.19249295254208,42.19236146779271,42.19220023760305,42.19215601853993,42.19215872336525,42.19197297038011,42.19156747088689,42.1911021931652,42.19058361570051,42.19007944728195,42.18954395881763,42.18952551495812,42.18898135703378,42.18896167640624,42.18860148283554,42.18858082900882,42.1883649192827,42.18801295465885,42.18769524311448,42.18691459133613,42.18679796216313,42.18679818831123,42.18679895176421,42.18679691144619,42.18685838967085,42.18607208560512,42.18574975526094,42.18570293292026,42.18547909240348,42.18547946134753,42.18498515183303,42.18498178346456,42.18384987876205,42.18282156428432,42.18290887947772,42.18246742461402,42.18191900629751,42.1818207698593,42.18137566752539,42.18139448614228,42.18120171559027,42.18096267950536,42.18055531210346,42.17908775674566,42.17893243620095,42.17885585518688,42.17875479597763,42.17895440572217,42.17773205915037,42.17748713069808,42.17652674052597,42.17509927654727,42.17477365347306,42.17454460099047,42.17382662398886,42.1735624729221,42.17352338284505,42.17364190908545,42.17029716568876,42.17031285372258,42.17050266774615,42.17163585406995,42.17177440130484,42.17261811018338,42.17261766774805,42.17204563469966,42.17192943668867,42.17084788396878,42.17041241457119,42.17031721765306,42.17032975997833,42.17036515360293,42.17036668430729,42.17025224054366,42.16812014306554,42.16810688989391,42.16809368916598,42.1680805435673,42.16806745669702,42.16805443124066,42.16804146987003,42.16802857438466,42.16801574925591,42.16800299538349,42.16799031635276,42.16797771483549,42.16796519350333,42.16795275505578,42.1679404012784,42.16792813574282,42.16791596112079,42.16790387921177,42.16789189357358,42.16788000510586,42.16786821826624,42.16785653395437,42.16784495571424,42.16783348445927,42.16782212463335,42.16781087803585,42.16779974552517,42.1677887315864,42.16777783709168,42.16776706469897,42.16775641709376,42.16774589604793,42.16773550333345,42.16772524252187,42.16771511448522,42.16770512278132,42.16769526738241,42.16768555277366,42.16767597889977,42.16766654935987,42.16765726499849,42.16764812758753,42.16763914068471,42.167630305176,42.16762162281946,42.16761309537324,42.16760472550909,42.16759651319931,42.16758846200166,42.16758057276063,42.16757284727575,42.16756528729135,42.16755789456559,42.16755066997054,42.16754361526438,42.16753673220528,42.1675333778354,42.16743908715268,42.16745548671276,42.16672778647985,42.16672183041403,42.16670647673405,42.16650330796428,42.16510587376369,42.16493166146002,42.1517443439142,42.15170224020759,42.15171227174239,42.14924885504288,42.14810404512467,42.14810175570654,42.14698855002367,42.14445231786615,42.1444506566792,42.14085083750749,42.14088262767676,42.14123103119346,42.14428705809776,42.14463049891013,42.14812077494091,42.14812473567929,42.15173381880815,42.15174170066891,42.15354568690766,42.15355796152602,42.15355888032987,42.15783238364443,42.15791463863406,42.15780700262786,42.15788481847655,42.15824437448743,42.16575179920071,42.16969839192498,42.17246412402778,42.17359170092687,42.17360036081013,42.17361759953955,42.17360595736183,42.17397375979016,42.17424290473108,42.17556632246638,42.17623580175294,42.1762535617224,42.17624589233696,42.17620965285924,42.17569639831495,42.17569779219053,42.17624143131067,42.17623771759437,42.17608300434965,42.17559408362066,42.17498122153693,42.17481226568705,42.17483856064107,42.17384972070509,42.17384401470781,42.17403158567437,42.17563441605794,42.17563973155985,42.18090524571701,42.18090458764138,42.18461442943747,42.18461702634541,42.18235197524834,42.18236768178298,42.18237399387129,42.18237587358522,42.18227035524611,42.18227057938538,42.18227556521597,42.1822755774519,42.18244183224756,42.18243829420327,42.18244292519724,42.18244609707241,42.18244541952529,42.18443820344898,42.18443825787881,42.18452034716157,42.18452539802069,42.18447803911773,42.18423931460725,42.18354401522453,42.18331788963474,42.18295806271604,42.18225737920371,42.18108322126,42.18108517701297,42.18062672507362,42.18046967143309,42.17558195494185,42.17462519602886,42.17457478566381,42.17433790192192,42.17434659514431,42.17391673296363,42.17387035353219,42.17382985275838,42.17453167941034,42.17472901023546,42.17649029671743,42.1778986698722,42.17926541563885,42.17904343221061,42.18323219196189,42.18313656022459,42.18509894564866,42.18509750999741,42.18554973779926,42.18701372200157,42.18693318841397,42.18796136639502,42.18961643131265,42.1916566745773,42.19228434586213,42.19258189770852,42.1945894172316,42.19484065435352,42.19483962644398,42.19577768654092,42.19608660697629,42.1960930103228,42.1964512690211,42.19732802000677,42.19739732337086,42.19760134901087,42.19797549456661,42.19850423351353,42.19881625921174,42.19904563320736,42.19982715740922,42.20032470665419,42.20073304549092,42.2011159090912,42.20134252228411,42.20162530715729,42.201997355045,42.20219691561867,42.20244383970898,42.20258328673812,42.2028070460543,42.20289868784274,42.20300155559566,42.20325937939399,42.20349887966385,42.20407146385232,42.2044020929051,42.20478650804458,42.20519313081049,42.20547899014286,42.20645008112789,42.20671362583553,42.20725166365724,42.20756451449252,42.20823435611389,42.20836604628388,42.20844857324281,42.20864617462333,42.20898659193138,42.20957380226099,42.20981548315062,42.21032059069844,42.21063913831615,42.21096859946481,42.21135833462241,42.21183060383381,42.21205035238787,42.21265957123619,42.21298342377185,42.21331828430741,42.21351052364581,42.21363677422528,42.21378938600451,42.21381739272969,42.21328274822943,42.21295696002704,42.21264811340594,42.21256323939099,42.2123003539411,42.21216312059693,42.211506779388,42.21060505300274,42.20977684053694,42.20953670980327,42.20928536747694,42.20929324092837,42.20928849950858,42.20929532042931,42.20905048680201,42.20878369383439,42.20878750802227,42.20847483967421,42.20847257601516,42.20804628152662,42.20804620162583,42.20804612459609,42.2076291691749,42.20746964256435,42.20746965567151,42.20721202285782,42.20721205988556,42.20702083540555]},{"lng":[-121.7978744600396,-121.7992916121353,-121.7992929379432,-121.7992426660543,-121.802417174565,-121.8019428864377,-121.8020899880334,-121.8011505474467,-121.8001996501462,-121.7996735721198,-121.7988661697947,-121.7980075749417,-121.7979597471215,-121.8004376509681,-121.8018629784476,-121.8018478831719,-121.801733869911,-121.8016796709696,-121.8006538991109,-121.7994737635212,-121.7983828778459,-121.7979611649878,-121.7979408246863,-121.7978744600396],"lat":[42.24891051879049,42.24941290722888,42.24938847597547,42.24914326245807,42.25025480817087,42.25026423872229,42.25089347736645,42.25057945543849,42.25026446242224,42.25009617455874,42.2495830590973,42.24928369730065,42.24914961793039,42.24988979770383,42.25030895506205,42.2502936070231,42.25022893233865,42.25019847043832,42.249897550944,42.24954484489349,42.2492202142155,42.24910153590819,42.24909656804047,42.24891051879049]},{"lng":[-121.8197417720115,-121.8199206280988,-121.8201848764523,-121.8205330784919,-121.8208897910042,-121.8213557027764,-121.8216601269175,-121.8219942395865,-121.8220335552421,-121.8222859475439,-121.8223710227676,-121.822348635468,-121.8223306335213,-121.8222040835551,-121.8220165349561,-121.8219845181726,-121.8216533486012,-121.8215279998742,-121.8213871986075,-121.8212880495508,-121.821178810772,-121.8210746093567,-121.8209211540865,-121.8209175792499,-121.8202157994044,-121.8201032744024,-121.819871064564,-121.8196219773086,-121.8194168614676,-121.8193665931012,-121.819207769617,-121.8189322886496,-121.8188656404444,-121.8188312432868,-121.8187415351751,-121.8186702337998,-121.8185764104881,-121.818386177551,-121.8183078104646,-121.8182970081625,-121.8180297754881,-121.8177776320812,-121.8176197345878,-121.8175062914033,-121.8173867351281,-121.8174275599302,-121.8176589669771,-121.8179241227956,-121.8182022947408,-121.818487035622,-121.8186278677707,-121.8187920621613,-121.819139030633,-121.8194811701029,-121.8197516970272,-121.8195705294381,-121.8197417720115],"lat":[42.23180523235678,42.23237071026578,42.23228750423121,42.23217786138417,42.2320655370341,42.23195312677349,42.23211290037165,42.23230130481738,42.23232419775725,42.23247116725756,42.23251367161851,42.23267745579916,42.23267203788417,42.23261768664408,42.232510348609,42.23249196575929,42.23230182405554,42.23223303083155,42.23219078290086,42.23218118266365,42.23218668069874,42.23220869726014,42.23226050291881,42.23223232557523,42.23245540124159,42.23249079295349,42.23256630851959,42.23264428792257,42.23270989606621,42.23272597545606,42.23277743240503,42.23286356393483,42.23288970767516,42.23290320051199,42.23294777252537,42.23299033995516,42.23304613954389,42.23317387749411,42.23322650063648,42.23323382992426,42.23341516317079,42.23358764381589,42.23369302005615,42.23376351829893,42.23361980152868,42.23359674869435,42.23344398692081,42.23326361720991,42.233076322287,42.2328856234825,42.23280144780092,42.23273213093874,42.23261797191262,42.23250951366256,42.23242486200825,42.23182602329367,42.23180523235678]},{"lng":[-121.7634643862519,-121.7639229364482,-121.7642914293704,-121.764572211628,-121.7646606605277,-121.7647491970624,-121.7648128516983,-121.7648872824906,-121.7649620053652,-121.7650463654236,-121.765124624328,-121.7652275400444,-121.7652593053183,-121.765219960066,-121.7651869567714,-121.7651403687684,-121.765093442199,-121.7650311167115,-121.7649720848327,-121.7648945530655,-121.7648110654874,-121.7644329151087,-121.7645019579903,-121.7644985505985,-121.7643239593942,-121.7642600909157,-121.7641522627374,-121.7633439684723,-121.7634643862519],"lat":[42.23212006946443,42.2332434210305,42.23411372123542,42.2338499104021,42.23377362949446,42.23370152819084,42.23364693122729,42.23359226304537,42.2335516302665,42.23352024657819,42.23349829219369,42.23347743512376,42.23361608134375,42.23362486001821,42.23363629316409,42.2336502003724,42.23366477746645,42.23369590887396,42.23373402193207,42.23379106577876,42.23386455665842,42.23423704618573,42.23427280379614,42.23428686359789,42.23441793187705,42.23445513866469,42.23417085517979,42.23219105553675,42.23212006946443]},{"lng":[-121.820952400489,-121.8258689051393,-121.8258644544846,-121.8209422361792,-121.820952400489],"lat":[42.22090399488135,42.22092272112391,42.22453986330629,42.22452641383232,42.22090399488135]},{"lng":[-121.7570666014577,-121.7571764768025,-121.7571790813816,-121.7569024372652,-121.7569310647377,-121.7569584303902,-121.7569838239088,-121.7570065851201,-121.7570261232277,-121.7570419286382,-121.7570535934636,-121.7570608123237,-121.7570633979325,-121.7570666014577],"lat":[42.21061803499178,42.21067160672456,42.21119078356011,42.21103590828107,42.21103179243298,42.21102431133355,42.21101365847453,42.2110001104802,42.21098402058793,42.21096580501298,42.21094593911477,42.2109249375868,42.21090334707904,42.21061803499178]},{"lng":[-121.7555182480649,-121.7569944908384,-121.7569951880916,-121.75551923681,-121.7555184330535,-121.7555182480649],"lat":[42.20646723439706,42.20646659712748,42.20697395125712,42.20697493699269,42.2066325977141,42.20646723439706]},{"lng":[-121.7895176622895,-121.7895329669801,-121.7897101860342,-121.7897067071394,-121.7896647010542,-121.7897010175381,-121.7898176047796,-121.789894024374,-121.7895735406927,-121.789153368414,-121.7894976979235,-121.7895176622895],"lat":[42.19663259242193,42.19665874489002,42.19692942661589,42.19693967177432,42.19696073439754,42.19702133569934,42.19721561471778,42.19734144774102,42.19745960487164,42.19677359060562,42.19664868589187,42.19663259242193]},{"lng":[-121.7226734932818,-121.7228023803051,-121.7227988612237,-121.7227969381855,-121.7227931381662,-121.7227861064529,-121.7227910896786,-121.7234014712874,-121.723596227334,-121.7238516577871,-121.7240934327646,-121.7241423410984,-121.7242562192689,-121.7242493322221,-121.7241799520822,-121.723954255982,-121.7239387905501,-121.7238398879483,-121.7236643739272,-121.7235072154758,-121.7235040279192,-121.7234952650599,-121.7234949264581,-121.7233851627582,-121.7233897834219,-121.72279134915,-121.7227908169271,-121.7226601380863,-121.7226567552745,-121.7226734932818],"lat":[42.17681803942501,42.17682007302453,42.17714937223859,42.17763602584864,42.17859683353827,42.17954279847079,42.18074258037246,42.18074439489019,42.17990424890495,42.17860649141545,42.17715646431586,42.17683416946019,42.17683938555506,42.17689262729395,42.17736078339747,42.17862234144976,42.17872701399931,42.17928449958728,42.18007920428796,42.1807686391253,42.18095849662725,42.18167941432108,42.18170865493456,42.18170915241256,42.1810271791087,42.18103368054417,42.18170780896484,42.1817096903279,42.18100802986164,42.17681803942501]}],[{"lng":[-121.8160305162613,-121.8185201000931,-121.8185112552184,-121.816505036718,-121.8165094926088,-121.8160261899076,-121.8160305162613],"lat":[42.19368187833854,42.19368975611685,42.19194786850709,42.19194163466118,42.1928496121236,42.19284796803183,42.19368187833854]}]]],null,null,{"interactive":true,"className":"","stroke":true,"color":["#a5dff9","#cfd82d"],"weight":5,"opacity":0.5,"fill":true,"fillColor":["#a5dff9","#cfd82d"],"fillOpacity":0.2,"smoothFactor":1,"noClip":false},null,null,null,{"interactive":false,"permanent":false,"direction":"auto","opacity":1,"offset":[0,0],"textsize":"10px","textOnly":false,"className":"","sticky":true},null]},{"method":"addLegend","args":[{"colors":["#cfd82d","#a5dff9"],"labels":["Klamath Falls City","UGB"],"na_color":null,"na_label":"NA","opacity":1,"position":"topright","type":"unknown","title":null,"extra":null,"layerId":null,"className":"info legend","group":null}]}],"limits":{"lat":[42.14083130935557,42.27220415228587],"lng":[-121.852893094957,-121.6833970087971]}},"evals":[],"jsHooks":[]}</script>

---

# Klamath Falls UGB Pop Forecast

---

# Klamath Falls UGB Pop Forecast

---

# Klamath UGBs: Malin in Context

.pux-right[
<img src="Klamath_files/figure-html/unnamed-chunk-31-1.png" width="800px" height="400px" />
]

.pux-left[
<table>
 <thead>
 <tr>
 <th style="text-align:left;"> Metric </th>
 <th style="text-align:left;"> 1980 </th>
 <th style="text-align:left;"> 2000 </th>
 <th style="text-align:left;"> 2020 </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Pop 65+ </td>
 <td style="text-align:left;"> 16.70% </td>
 <td style="text-align:left;"> 9.87% </td>
 <td style="text-align:left;"> 6.02% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Units </td>
 <td style="text-align:left;"> 224 </td>
 <td style="text-align:left;"> 217 </td>
 <td style="text-align:left;"> 277 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Occupancy </td>
 <td style="text-align:left;"> 91.96% </td>
 <td style="text-align:left;"> 92.17% </td>
 <td style="text-align:left;"> 93.50% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Persons Per Household </td>
 <td style="text-align:left;"> 2.62 </td>
 <td style="text-align:left;"> 3.19 </td>
 <td style="text-align:left;"> 2.82 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Household Income </td>
 <td style="text-align:left;"> $12,500 </td>
 <td style="text-align:left;"> $29,750 </td>
 <td style="text-align:left;"> $52,500 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Employment Rate </td>
 <td style="text-align:left;"> 96.89% </td>
 <td style="text-align:left;"> 90.73% </td>
 <td style="text-align:left;"> 93.75% </td>
 </tr>
</tbody>
</table>
]

---

# Klamath County: Malin UGB Boundaries

<div class="leaflet html-widget html-fill-item" id="htmlwidget-ec1568793256dd3f5ac0" style="width:504px;height:450px;"></div>
<script type="application/json" data-for="htmlwidget-ec1568793256dd3f5ac0">{"x":{"options":{"crs":{"crsClass":"L.CRS.EPSG3857","code":null,"proj4def":null,"projectedBounds":null,"options":{}}},"calls":[{"method":"addProviderTiles","args":["CartoDB.Positron",null,null,{"errorTileUrl":"","noWrap":false,"detectRetina":false}]},{"method":"addPolygons","args":[[[[{"lng":[-121.4103251430499,-121.4102362134646,-121.4099928138713,-121.4097500470646,-121.4094495893113,-121.409295048742,-121.4084142506104,-121.4049899876487,-121.4047561144021,-121.4034345219636,-121.4033333499054,-121.4033461139235,-121.4022228329889,-121.4014003603727,-121.4005792261826,-121.3988951634709,-121.3989241418702,-121.4033616731912,-121.4045286547658,-121.4084411025096,-121.4084293596649,-121.4084150436906,-121.4179070498283,-121.417968098206,-121.4180041174586,-121.4179604467688,-121.4179468644402,-121.4131973012751,-121.4131760816414,-121.4154088554372,-121.4154583550564,-121.4134830874371,-121.4126975007962,-121.4109209570669,-121.4110592760101,-121.4111408500379,-121.4112370659103,-121.411283273189,-121.4114446616023,-121.4115337922688,-121.4115703676726,-121.4115927341887,-121.4116012872935,-121.4116005520308,-121.4115933739272,-121.4115653640606,-121.4115235514678,-121.4114642443423,-121.4114007926017,-121.4113815567107,-121.4113581968129,-121.4113141723554,-121.411209125667,-121.4110809713933,-121.4109076996793,-121.4107066071482,-121.410651928799,-121.4105651686576,-121.4105198482907,-121.4104721171959,-121.4104136718764,-121.4103251430499],"lat":[42.02133834813096,42.02132590522969,42.02131530056879,42.02131592358035,42.02134376938668,42.02136654074933,42.02136974913166,42.02139794766615,42.02067714168209,42.02068361391682,42.01791546201478,42.0140130789928,42.01381876013701,42.01369577040716,42.01357026641185,42.01328982731818,42.00958711591755,42.00955194143402,42.00955137938762,42.0095494068856,42.00838729612772,42.00606916341156,42.006071890605,42.00913916008025,42.01078793328513,42.01189517159764,42.01299935013132,42.01306518214271,42.0155300740088,42.01555477168888,42.01671146155888,42.01675004629317,42.01821572481322,42.0182723548919,42.01845223743564,42.01858924585974,42.01872094244257,42.01876635310742,42.01889065735841,42.01897850633582,42.01902564794541,42.01907676055372,42.01912606804832,42.01920012315779,42.01927452408123,42.01955480703564,42.01983492442349,42.02008253833754,42.02032910667544,42.02045790642237,42.02058701927768,42.02068834061969,42.02082797173198,42.02096097542744,42.02111984278875,42.0212641330621,42.02129750361559,42.02133882460107,42.02135208504582,42.0213582436058,42.02135516508412,42.02133834813096]}]],[[{"lng":[-121.4178198901786,-121.4181288464762,-121.4181370015799,-121.4181822375835,-121.418192144075,-121.4180700374213,-121.4178609065521,-121.4172587126235,-121.4156841984803,-121.4141164074881,-121.413147189097,-121.4112436124847,-121.4112522216238,-121.4109702300218,-121.4084189660438,-121.4083903939623,-121.4084025886806,-121.4084000952992,-121.4034451226602,-121.403449102811,-121.4034424658153,-121.4034331777338,-121.4034383163403,-121.4034280179545,-121.403433319502,-121.4034376229072,-121.4034481697419,-121.4034517779041,-121.4034421958559,-121.4035285094797,-121.4035275717249,-121.4035267046566,-121.4035301407674,-121.4035335193092,-121.403539898091,-121.403547731029,-121.4035602042988,-121.4035479469942,-121.4050817622155,-121.4052682146542,-121.4083381172522,-121.4083825822788,-121.4083825254316,-121.4083824786973,-121.4084673819281,-121.4095067953807,-121.4112560796002,-121.4113518984511,-121.4114426115074,-121.4114393642204,-121.4114838344821,-121.4114827204865,-121.4110764813138,-121.4110438632764,-121.4125736200786,-121.4125580542957,-121.4120593041389,-121.4118502564741,-121.4118300872578,-121.4122778408814,-121.4132019136898,-121.4132048495404,-121.4154051551561,-121.4153947755726,-121.415394616575,-121.4153734350089,-121.4148305835416,-121.4131897331485,-121.4131970943736,-121.4132588823753,-121.4139167186111,-121.4141007693137,-121.4141126969841,-121.4141191543599,-121.4141152826455,-121.4141175205883,-121.4141213817365,-121.4141267547925,-121.4141274721111,-121.414129820116,-121.4141290156892,-121.4141327930834,-121.4141382670127,-121.414135806655,-121.4141410579333,-121.4141373992837,-121.4141442151565,-121.414510162833,-121.4146646339764,-121.4148079270379,-121.4153035795931,-121.4152969631105,-121.4156297818053,-121.4156556352686,-121.4161040854258,-121.4161060094288,-121.4162829511315,-121.4164536093296,-121.4165956098845,-121.4167344663475,-121.4171159951722,-121.4172310958313,-121.4178198901786],"lat":[42.00864605010977,42.00855438059664,42.00820834193291,42.00628857403505,42.00586811167573,42.00586920932677,42.00587323364844,42.00587870591461,42.00590049065837,42.00592331560856,42.00592494915106,42.00593821392778,42.00761078402336,42.00760588825363,42.00759397069768,42.00840264326298,42.00924106767853,42.00953187534574,42.00955740465193,42.00966450065179,42.01138401118367,42.01228493979965,42.012730919444,42.01318434830961,42.01390109888035,42.01424115548352,42.01612999187249,42.01677636120107,42.01695853833407,42.01695264122149,42.01721364675414,42.01745532016324,42.01769289255397,42.01792639881169,42.01808444122547,42.01871494102178,42.01971593030128,42.0204939861399,42.02049349295464,42.02049938786332,42.02049065082088,42.02048978543777,42.02047782085724,42.0204521417412,42.02045198567238,42.02045006827021,42.02044444234436,42.02002563283143,42.01981509218356,42.01959259757244,42.01913448085425,42.019058198507,42.01868003107788,42.01858704906223,42.01857913883234,42.01854720538034,42.01708898184664,42.01678550965651,42.01675710946412,42.0167638741306,42.01675636354093,42.01676662501639,42.01676390449548,42.01558946812772,42.01557165058682,42.01320211371681,42.01319535664142,42.01320488771479,42.01304909249296,42.01304987039618,42.01304279061355,42.01304080991273,42.01233866445786,42.01195858409461,42.01179405958522,42.01162818220936,42.01146692942807,42.01130276644282,42.01113921986287,42.01098088004576,42.01081966695664,42.01065725496973,42.01049541023978,42.01032729974907,42.01016832485792,42.0099048373312,42.0095726396179,42.0095783219428,42.00955390500268,42.00951698041548,42.00937201612071,42.00866705622615,42.00866151678564,42.00866108666779,42.0086554145248,42.00914168516228,42.00908923081117,42.00904029757806,42.00899794605277,42.0089607067294,42.00884731516763,42.00881437754342,42.00864605010977]}]]],null,null,{"interactive":true,"className":"","stroke":true,"color":["#a5dff9","#cfd82d"],"weight":5,"opacity":0.5,"fill":true,"fillColor":["#a5dff9","#cfd82d"],"fillOpacity":0.2,"smoothFactor":1,"noClip":false},null,null,null,{"interactive":false,"permanent":false,"direction":"auto","opacity":1,"offset":[0,0],"textsize":"10px","textOnly":false,"className":"","sticky":true},null]},{"method":"addLegend","args":[{"colors":["#cfd82d","#a5dff9"],"labels":["Malin City","UGB"],"na_color":null,"na_label":"NA","opacity":1,"position":"topright","type":"unknown","title":null,"extra":null,"layerId":null,"className":"info legend","group":null}]}],"limits":{"lat":[42.00586811167573,42.02139794766615],"lng":[-121.418192144075,-121.3988951634709]}},"evals":[],"jsHooks":[]}</script>

---

# Malin UGB Pop Forecast

---

# Malin UGB Pop Forecast

---

# Klamath UGBs: Merrill in Context

.pux-right[
<img src="Klamath_files/figure-html/unnamed-chunk-36-1.png" width="800px" height="400px" />
]

.pux-left[
<table>
 <thead>
 <tr>
 <th style="text-align:left;"> Metric </th>
 <th style="text-align:left;"> 1980 </th>
 <th style="text-align:left;"> 2000 </th>
 <th style="text-align:left;"> 2020 </th>
 </tr>
 </thead>
<tbody>
 <tr>
 <td style="text-align:left;"> Pop 65+ </td>
 <td style="text-align:left;"> 13.97% </td>
 <td style="text-align:left;"> 15.83% </td>
 <td style="text-align:left;"> 13.89% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Units </td>
 <td style="text-align:left;"> 351 </td>
 <td style="text-align:left;"> 380 </td>
 <td style="text-align:left;"> 338 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Housing Occupancy </td>
 <td style="text-align:left;"> 90.88% </td>
 <td style="text-align:left;"> 90.53% </td>
 <td style="text-align:left;"> 90.83% </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Persons Per Household </td>
 <td style="text-align:left;"> 2.54 </td>
 <td style="text-align:left;"> 2.61 </td>
 <td style="text-align:left;"> 2.67 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Household Income </td>
 <td style="text-align:left;"> $11,136 </td>
 <td style="text-align:left;"> $23,304 </td>
 <td style="text-align:left;"> $52,708 </td>
 </tr>
 <tr>
 <td style="text-align:left;"> Employment Rate </td>
 <td style="text-align:left;"> 89.30% </td>
 <td style="text-align:left;"> 90.95% </td>
 <td style="text-align:left;"> 89.72% </td>
 </tr>
</tbody>
</table>
]

---

# Klamath County: Merrill UGB Boundaries

<div class="leaflet html-widget html-fill-item" id="htmlwidget-88588844aac7ed57ef46" style="width:504px;height:450px;"></div>
<script type="application/json" data-for="htmlwidget-88588844aac7ed57ef46">{"x":{"options":{"crs":{"crsClass":"L.CRS.EPSG3857","code":null,"proj4def":null,"projectedBounds":null,"options":{}}},"calls":[{"method":"addProviderTiles","args":["CartoDB.Positron",null,null,{"errorTileUrl":"","noWrap":false,"detectRetina":false}]},{"method":"addPolygons","args":[[[[{"lng":[-121.5933227202019,-121.5905349525432,-121.5904811887868,-121.5897043836301,-121.5896892388912,-121.589654522081,-121.590388691861,-121.5909679000365,-121.5913016836151,-121.5916475229501,-121.5921751205658,-121.5925165006615,-121.5928634680994,-121.5932176905056,-121.5934413571222,-121.593704264806,-121.5945243290968,-121.5946753011036,-121.5948132035147,-121.5950820468834,-121.5951852027417,-121.5953763008836,-121.5953681992049,-121.600365687724,-121.6003688355374,-121.6003834879186,-121.601115105921,-121.6016583345848,-121.6024874990183,-121.6028336225408,-121.6034655756441,-121.6040887953913,-121.6047982009309,-121.6049165828714,-121.6052092978763,-121.6054619684216,-121.6057453316168,-121.6061538054183,-121.6066464734592,-121.6071990532602,-121.607698997278,-121.6079891582398,-121.6083423330576,-121.6087783623564,-121.6098474021188,-121.6104853661789,-121.6110203504579,-121.6115051356678,-121.6121739013664,-121.6133959172356,-121.6144916995684,-121.6144985745801,-121.6145743791969,-121.6145561022268,-121.6127891278407,-121.5933227202019],"lat":[42.02939940693385,42.02936848175266,42.02591677632273,42.0259187035693,42.02398237515285,42.02072932383322,42.02094106244859,42.02113127668855,42.02121153658146,42.02131761173089,42.02143052765302,42.021522323864,42.02158130995587,42.02167636655908,42.0217398615602,42.02177996517124,42.0218046740697,42.02186888921098,42.0219414477146,42.02219013642673,42.0222909701135,42.02250428780838,42.01962081328426,42.01963599799523,42.0222148670362,42.02258035741371,42.02236209805432,42.02215576568529,42.02196866641908,42.02188885762328,42.02182225615246,42.02171957692457,42.02176469433776,42.02175547097007,42.021702308263,42.02166963677284,42.02154625175778,42.02148790574979,42.02146688324943,42.0216300836977,42.0218621162414,42.02196567320775,42.02212685543168,42.02225104138439,42.02251550231954,42.02278028428282,42.02301194868674,42.02314969428879,42.02318111242457,42.02311451895535,42.02321794499753,42.02359556687909,42.02719233166308,42.03139066356552,42.02957731559017,42.02939940693385]}]],[[{"lng":[-121.6000361346918,-121.5989220640218,-121.5983233462002,-121.5982560544833,-121.5978095396599,-121.5975128777872,-121.5970759428303,-121.5969977544948,-121.5965479917384,-121.5962503401983,-121.5962503278535,-121.596243139689,-121.5953596645595,-121.5953453460623,-121.5955471585359,-121.5955840080769,-121.5956297706492,-121.5957017504718,-121.5957594583293,-121.5959209170664,-121.5960585503041,-121.5961556697921,-121.5962816594982,-121.5964610518781,-121.5965937859078,-121.5966697550252,-121.5967728285832,-121.5968793884248,-121.596968774357,-121.5970247415604,-121.5970920806774,-121.5971588450537,-121.5972167636296,-121.5972663536356,-121.597295520117,-121.5974717170937,-121.5976535800173,-121.5977255257508,-121.597849007482,-121.5980121419827,-121.5980911624508,-121.5982009565002,-121.5982833412871,-121.5983709302561,-121.5985216657815,-121.5986008112149,-121.5986692048143,-121.5987598260468,-121.5989203207651,-121.5990412475363,-121.5991058188049,-121.5991738727003,-121.5993217904454,-121.5994372962895,-121.5994662475508,-121.6000369879424,-121.6000361346918],"lat":[42.02179967404818,42.02179510522252,42.02179264518867,42.02179236790736,42.021790531307,42.0217893095855,42.02178750950671,42.02178718704319,42.02178533089191,42.02178410212681,42.02178516506013,42.02242092154898,42.02241426341146,42.02241420877252,42.02264497355184,42.02268692853872,42.02274675011691,42.02283067714008,42.02288525202786,42.02307024715855,42.02317148657712,42.02321798268235,42.02324368107318,42.02327462775588,42.0232925660733,42.0233097764389,42.02330363999327,42.02330003530646,42.02329787951185,42.02335720021207,42.02336655983368,42.0233492378661,42.02331789768327,42.02330530221285,42.02329789404296,42.02324488183172,42.0232206644478,42.02320457377432,42.02318541522141,42.02317302270952,42.02316701959798,42.02315184073568,42.02314621159594,42.02313607315096,42.02311796035509,42.02310433326456,42.02308186544737,42.02305212756406,42.02298468642964,42.02291986373775,42.0228756349165,42.02283393607702,42.02273760002653,42.02267809828351,42.02251331910374,42.02224127662577,42.02179967404818]}],[{"lng":[-121.5993218573122,-121.5992651678135,-121.5991748968227,-121.598963580149,-121.598883451321,-121.5988237667994,-121.5987657278084,-121.5986666627627,-121.5985778180449,-121.5984991307937,-121.5984031145867,-121.5982930500087,-121.5982433463659,-121.5981816368873,-121.598042881815,-121.5979608458864,-121.5978803680541,-121.5977845205753,-121.5976298093425,-121.5974441225763,-121.5973684685898,-121.5973031651506,-121.5972154845604,-121.5971363914137,-121.5970053325487,-121.5969021103721,-121.5967589711062,-121.5966418249668,-121.5965470091679,-121.5964953842565,-121.5964178962092,-121.5962782960675,-121.596164413651,-121.5960986885967,-121.5960381037165,-121.5959705071255,-121.5958717337147,-121.5957604151032,-121.5957011169768,-121.5955819361492,-121.5955188908098,-121.5954851650199,-121.5954392224874,-121.5953970343049,-121.5953200571101,-121.5953198949371,-121.5952196845509,-121.5951250217557,-121.5950347648749,-121.5949375210484,-121.5948475366614,-121.5947756742833,-121.5946976925083,-121.594604407707,-121.5945003550531,-121.5943818194453,-121.5943143489638,-121.5941116595045,-121.5940234387001,-121.5938837055772,-121.5936063834831,-121.5935155498596,-121.5933754963198,-121.5933154655991,-121.5933316604146,-121.5933437749506,-121.5933438103392,-121.5933448890615,-121.5933486726243,-121.5928321930528,-121.5928324263412,-121.5923827374637,-121.5912890857603,-121.5905262348431,-121.5904112383138,-121.5904115174685,-121.5897227797783,-121.5897233028558,-121.5896985919357,-121.5904337022286,-121.5906021657639,-121.5905992956712,-121.5906057044295,-121.5905922983921,-121.5905930138967,-121.5905933424476,-121.5909120871659,-121.5911201096247,-121.5922953850852,-121.5928070928847,-121.5928664216228,-121.5928472260906,-121.6001044567715,-121.6080707384251,-121.6127491501449,-121.6103264281171,-121.6091654195114,-121.6090570654564,-121.6084034223724,-121.6081693278928,-121.6079664426901,-121.6078963903851,-121.6078567526052,-121.607823302057,-121.607868329933,-121.6078627078022,-121.6078675956709,-121.6078661038525,-121.6078661709693,-121.6078655860756,-121.6078655990071,-121.6078332738179,-121.6078290442371,-121.6078339349318,-121.6078363394253,-121.6077924598541,-121.6076426492193,-121.6074639851617,-121.6072084759081,-121.6070808546215,-121.6070107488556,-121.6068633343695,-121.6068011432348,-121.6066877834909,-121.6066026886987,-121.6064386207959,-121.6063361557009,-121.6062633070961,-121.6061641603681,-121.6060705977965,-121.6058192313377,-121.6057118690299,-121.6055854882038,-121.605455215214,-121.6053892783259,-121.6053042058896,-121.6051682640359,-121.6049138860791,-121.6048097161581,-121.6046733431564,-121.6045158674228,-121.6044373001923,-121.6044234277572,-121.6042916251841,-121.6041828744196,-121.6040762835264,-121.6039977461068,-121.6039354928748,-121.6039239345413,-121.6038338476371,-121.6036812541579,-121.6036366797361,-121.6036133526416,-121.6034502319119,-121.6032237963886,-121.6031244753383,-121.6030041555291,-121.6028193807193,-121.6026947477351,-121.6026253838043,-121.6024128747055,-121.6022051484934,-121.6020063833115,-121.6017962369757,-121.6016808526317,-121.60153763558,-121.6013438469739,-121.6012539726795,-121.601161841165,-121.6010379103922,-121.600991735822,-121.6009690021001,-121.6008978389845,-121.6008358202007,-121.6007690458234,-121.6007234228313,-121.6006309563395,-121.600512890988,-121.6004388029286,-121.6003814195617,-121.6002106081375,-121.6000357281307,-121.599943494302,-121.5997456240194,-121.5997222102767,-121.5996534341968,-121.599586749196,-121.5994725207819,-121.5994069427911,-121.5993910430837,-121.5993218573122],"lat":[42.023087309352,42.02312270244288,42.02317220770451,42.02328095908595,42.02332130063209,42.02335009453679,42.02337488441936,42.02341318025807,42.02344610677276,42.02346995692358,42.02348628282945,42.02348607766769,42.02349543050538,42.02350704218729,42.02353789046691,42.02356690319917,42.02358737084322,42.02361110540857,42.02361630149584,42.02361875625955,42.02361949588511,42.02362124101526,42.02362355466884,42.02362432750612,42.02360380925479,42.02360161138896,42.02357864660613,42.02356696699266,42.02355378877689,42.02355070229518,42.02354607258199,42.02352884135479,42.02350630984308,42.02348571602194,42.02346322524944,42.02343287409953,42.02339047724414,42.02331676267971,42.0232716087154,42.02314390204467,42.02307912102185,42.02301918322812,42.0229491060317,42.02289694406308,42.02281443983972,42.02279586521223,42.02267434814176,42.02258934333938,42.02247595782751,42.02238366396303,42.02228581549621,42.02224263715167,42.02219308604622,42.02212364211597,42.02206249445919,42.02201428668173,42.02200786768491,42.0219885817128,42.02199126808163,42.02199262942248,42.02197796174489,42.0219715331322,42.02195461415857,42.02194253394467,42.02267171739967,42.02336359656962,42.02337449790275,42.02370364177624,42.02391061476585,42.02391495828323,42.02392829644998,42.02393184354029,42.02392934422427,42.02392218853925,42.02392504358437,42.0239366498426,42.02394122935949,42.02409197498203,42.02580903987906,42.02581341921174,42.02581317535778,42.02586351499823,42.02601579085286,42.02664459886904,42.02675833066554,42.0268104411989,42.02680881904634,42.02681301330004,42.02681207196262,42.02681268495302,42.02762010553374,42.02941894248518,42.02944295102356,42.02951058885889,42.02952969643903,42.02713739484928,42.02599087926519,42.02586017714653,42.02519438334203,42.024979211837,42.02479234801938,42.02474396366941,42.02473574928897,42.02471688500074,42.02399877707619,42.02372293679354,42.02354353042696,42.02336840082314,42.0231902470945,42.02300707655265,42.02297484645879,42.02297389740968,42.02282581208927,42.02255619357148,42.02205189219755,42.0220312016321,42.02196693864028,42.02189864872799,42.02181360436508,42.02177854055897,42.02174939490823,42.02171617852228,42.02170216641832,42.02168641969153,42.02167471561527,42.02166487512243,42.02167496520784,42.02168735751465,42.02168833474902,42.02171001168017,42.02176048459114,42.02178878377563,42.0218237568913,42.02183541677141,42.02184514551706,42.02185506452223,42.02186980201994,42.02188489461419,42.02189544764524,42.0219058998117,42.02191561138395,42.02192674865305,42.02192820079613,42.02194200026237,42.02194483228623,42.02194757145028,42.0219604350625,42.02197561554358,42.02197843390635,42.02199313835502,42.0220101845712,42.02201989070805,42.02202497062484,42.02204613840455,42.02207945580795,42.02209597735487,42.02210406809325,42.02213524844626,42.02216151914052,42.02216910992685,42.02220401584656,42.02224751095736,42.02227364462127,42.02231111748169,42.0223364323444,42.02236468931923,42.02240537687941,42.0224321684758,42.02246243648585,42.02252842816879,42.02255087237297,42.02256192399628,42.02259889623844,42.02262886918344,42.02265197911166,42.0226921552141,42.02270342510529,42.02270803665976,42.02271049061081,42.02260658010167,42.02272068319491,42.02283750394887,42.02287302571874,42.02296472208693,42.02290468525507,42.02290535866325,42.02292716928547,42.02298342500227,42.02303469340996,42.02304411509734,42.023087309352]}]]],null,null,{"interactive":true,"className":"","stroke":true,"color":["#a5dff9","#cfd82d"],"weight":5,"opacity":0.5,"fill":true,"fillColor":["#a5dff9","#cfd82d"],"fillOpacity":0.2,"smoothFactor":1,"noClip":false},null,null,null,{"interactive":false,"permanent":false,"direction":"auto","opacity":1,"offset":[0,0],"textsize":"10px","textOnly":false,"className":"","sticky":true},null]},{"method":"addLegend","args":[{"colors":["#cfd82d","#a5dff9"],"labels":["Merrill City","UGB"],"na_color":null,"na_label":"NA","opacity":1,"position":"topright","type":"unknown","title":null,"extra":null,"layerId":null,"className":"info legend","group":null}]}],"limits":{"lat":[42.01962081328426,42.03139066356552],"lng":[-121.6145743791969,-121.589654522081]}},"evals":[],"jsHooks":[]}</script>

---

# Merrill UGB Pop Forecast

---

# Merrill UGB Pop Forecast

---

# Comments or Questions?

## Contact PSUPRC
Email: [askprc@pdx.edu](mailto:askprc@pdx.edu)
Telephone: 503-725-3922

## Preliminary Population Projections
https://www.pdx.edu/population-research/population-forecasts
